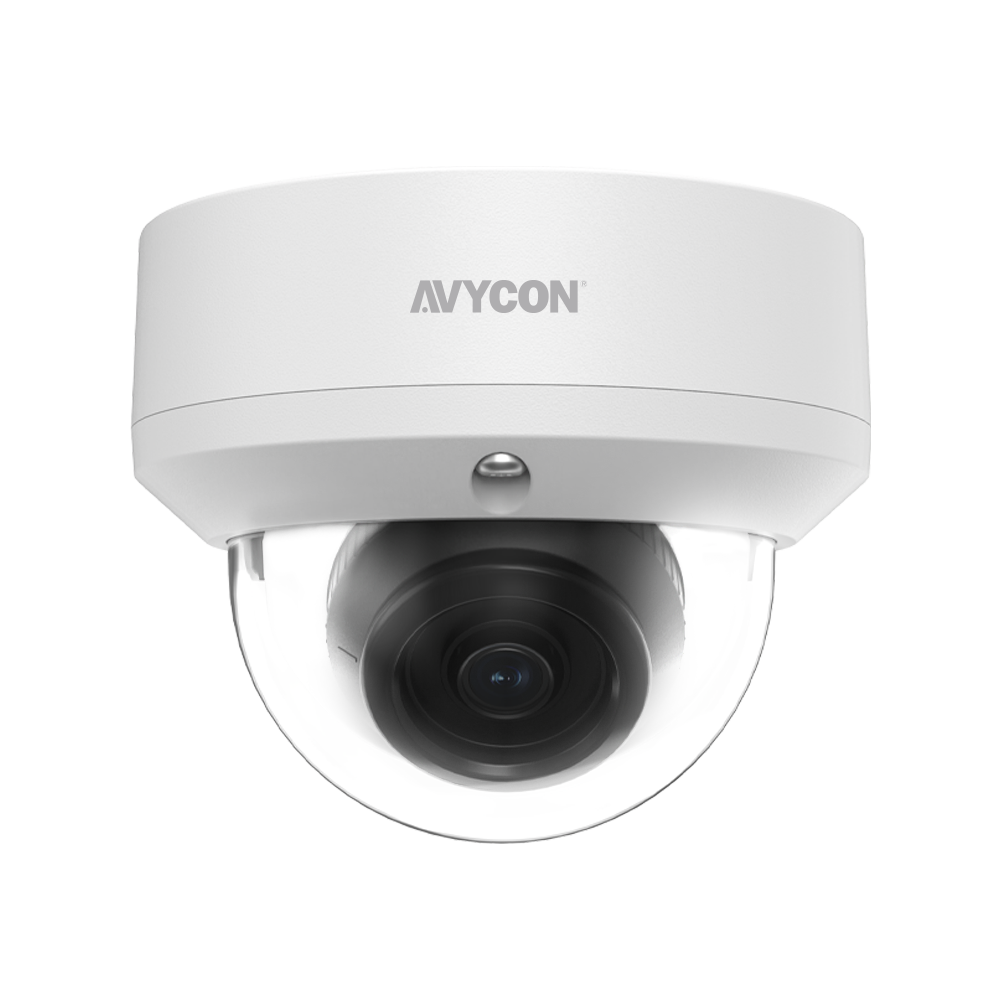

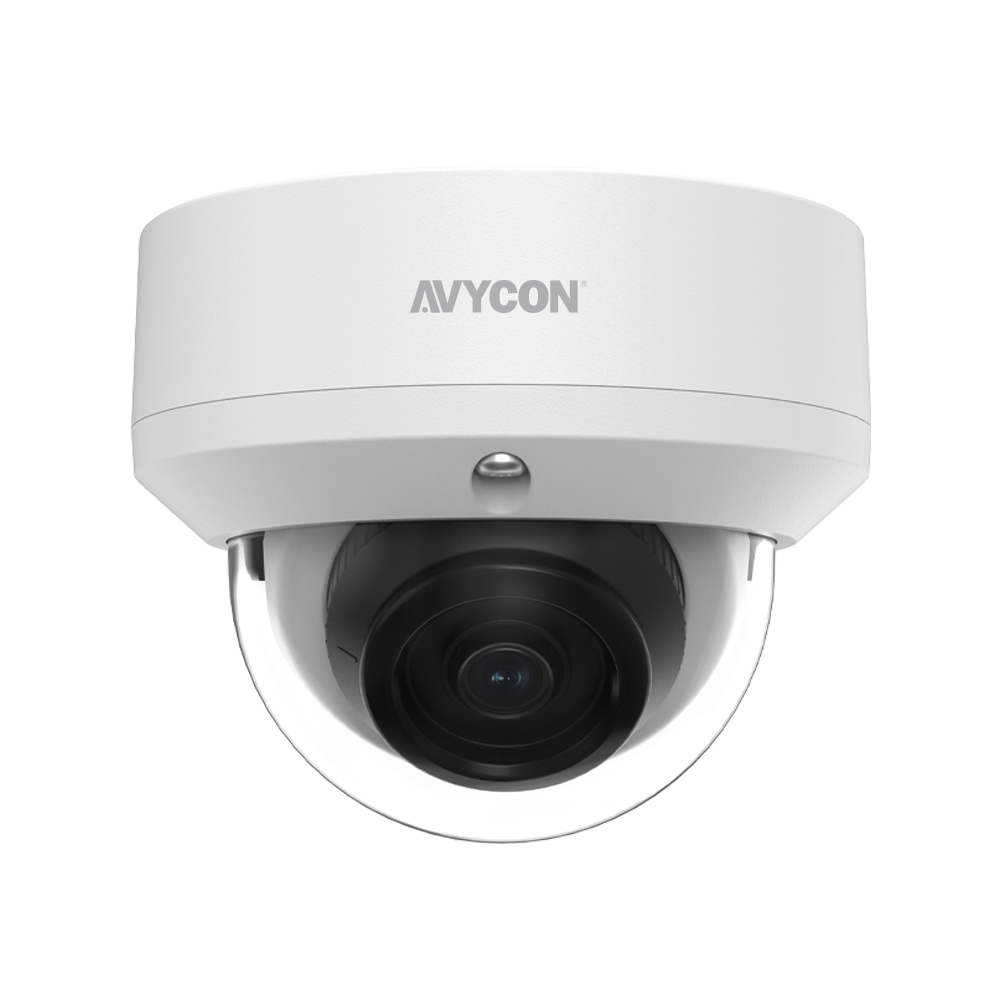

AVYCON - AVC-NCV51F28 - 5MP H.265 INFINITECOLOR FIXED VANDAL DOME NETWORK CAMERA
Product Overview
The AVYCON AVC-NCV51F28 is a 5MP H.265 InfiniteColor fixed vandal dome network camera designed for clear full-color surveillance. It combines 2592 x 1944 resolution, a bright 2.8mm F1.0 fixed lens, intelligent analytics, white light illumination, local microSD storage, and IP67 outdoor protection.
Key Configuration
Model: AVC-NCV51F28 | Product Type: 5MP InfiniteColor Fixed Vandal Dome Network Camera | Resolution: 2592 x 1944 | Lens: Fixed 2.8mm, F1.0 | Compression: H.265 / H.264 | Storage: microSD up to 256GB | Power: DC12V / PoE | Protection: IP67
Key Features
· 5MP video resolution with a maximum resolution of 2592 x 1944
· H.265 and H.264 video compression support
· Full Color imaging for clear color video in low-light surveillance scenes
· Fixed 2.8mm F1.0 lens for bright wide-area monitoring
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image quality
· Intelligent analytics for smart event detection and security monitoring
· White Light LED for enhanced visibility and active scene illumination
· Built-in microphone for audio capture
Technical Context
The AVC-NCV51F28 is built for surveillance applications that need high-resolution full-color video from a compact vandal dome form factor. Its F1.0 fixed lens and white light LED support strong low-light visibility, while image enhancement features help maintain usable video in challenging lighting conditions.
Installation Notes
The camera supports both DC12V and PoE power for flexible installation. Its IP67-rated housing is suitable for outdoor environments, and remote monitoring is supported through the AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Video | |
| Imaging Device | 1/2.7" |
| Effective Pixels | 5MP 2592(H)×1944(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.002lux @ F1.0(AGC ON); B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8mm |
| Max. Aperture Ratio | F No. 1.0 |
| Angular Field of View | Horizontal:110° , Vertical:58°, Diagonal: 132° |
| Min. Object Distance | 2m |
| Lens Type | M12 |
| Operational | |
| IR LED | 10(SMD) |
| White Light | 6 |
| IR Viewable Length | Up to 65ft (20m) |
| White Light Viewable Length | Up to 65ft (20m) |
| Type of complementary light | Default white light, switchable infrared light |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Image Setting | Full Color Mode/Day&Night Mode/Smart IIIumination |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 512GB |
| Alarm | N/A |
| Audio | Built-in Mic |
| Hardware Reset | Yes |
| Analytics | Face Detection, Human & Vehicle Detection, Intrusion Detection, Tripwire Detection, Stationary Object Detection, Tripwire Count, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Loitering Detection, Region Entrance Detection, Region Exiting Detection |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream @30fps 5MP(2592x1944, 3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280x960), 720P(1280x720) Sub Stream @30fps 720P(1280x720), VGA(640x480), QVGA(320x240) Mobile Stream @30fps VGA(640x480), QVGA(320x240) |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| Streaming Capability | Triple-Stream(Main/Sub/Mobile) |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Security | IP address filter; Complicated password; Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Application Programming Interface | ONVIF( Profile S/G/T/M) |
| Web Viewer | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chromeV.57 above, Edge V.79 above |
| Environmental | |
| Operating Conditions | -31~+140°F (-35～+60°C)/less than ≤ 90% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption | DC12V: max 6.3W; POE (48V): max 7.6W |
| Mechanical | |
| Material | Metal |
| Dimension | Ø4.5 x 3.6in (Ø115 x 91.6mm) |
| Weight | 1.1lbs (510g) |
