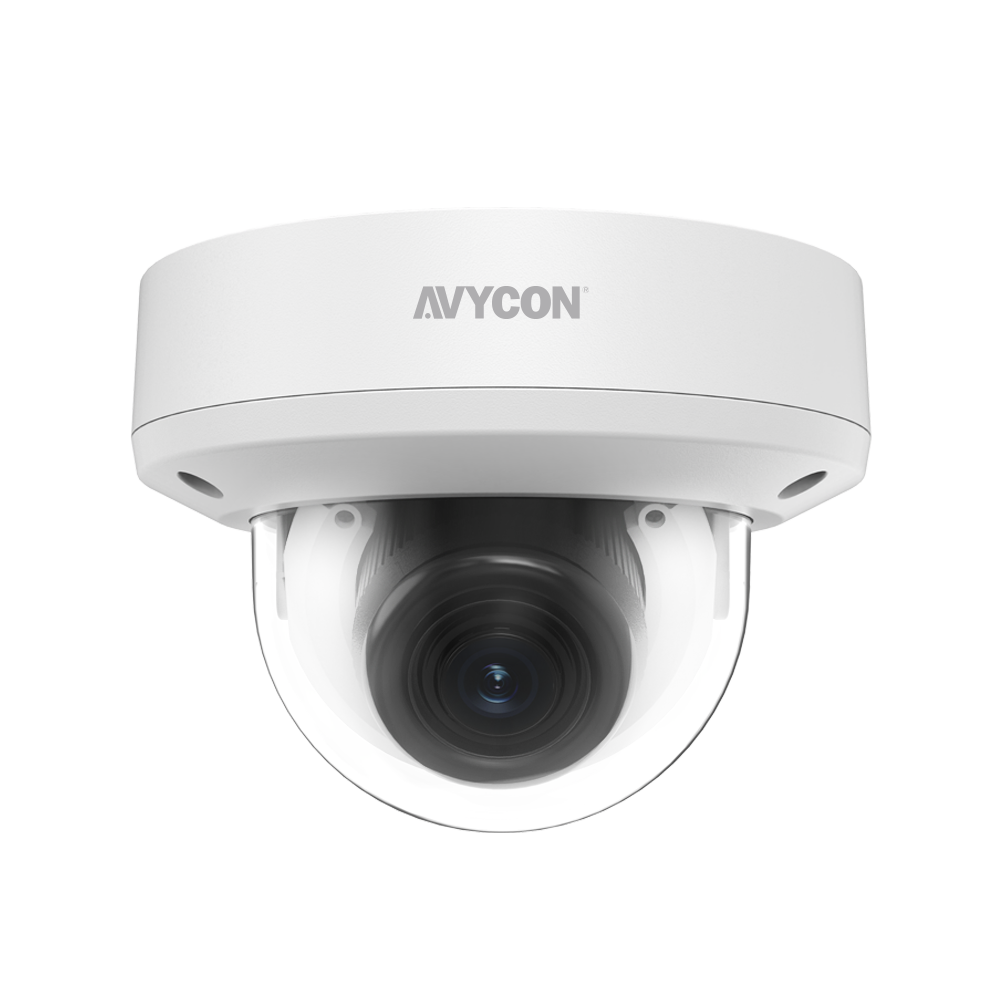

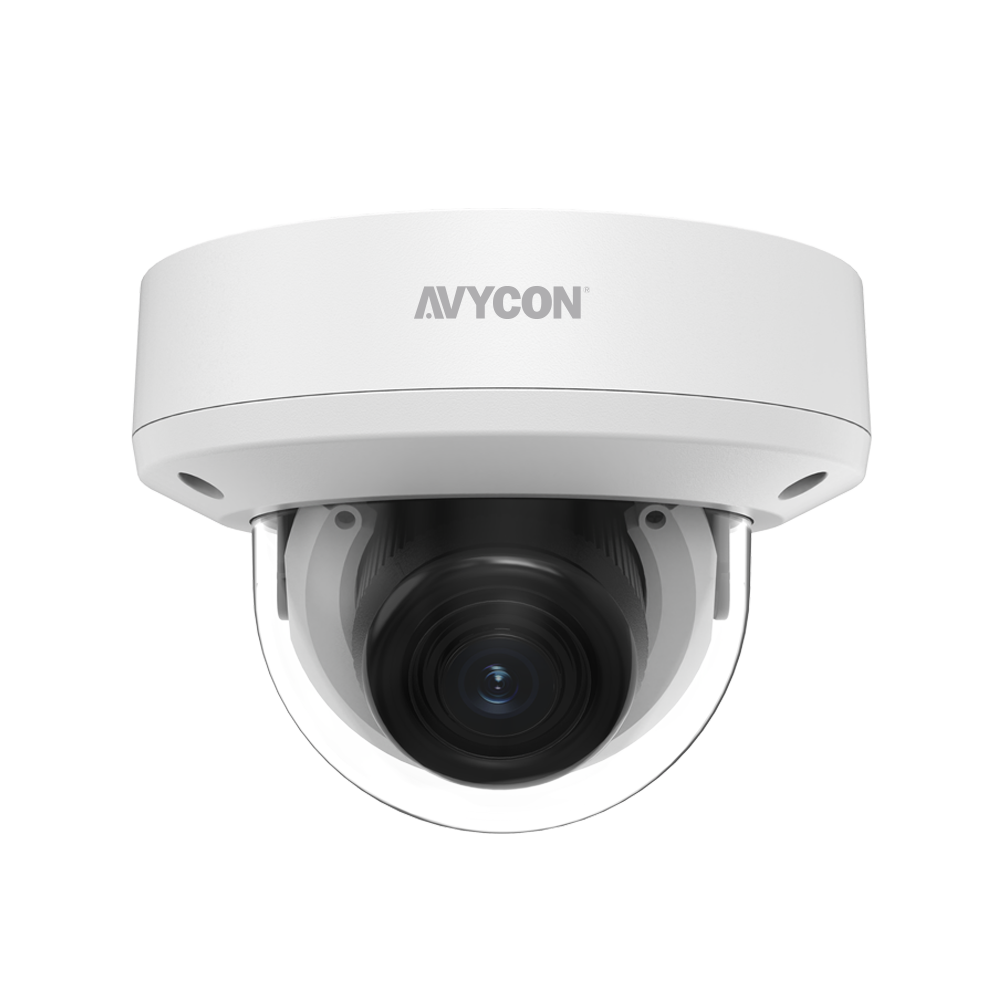

AVYCON - AVC-NCV51M - 5MP H.265 INFINITECOLOR MOTORIZED VANDAL DOME NETWORK CAMERA
Product Overview
The AVYCON AVC-NCV51M is a 5MP H.265 InfiniteColor motorized vandal dome network camera designed for full-color surveillance in demanding indoor or outdoor environments. It combines high-resolution video, a 2.8-12mm motorized lens, intelligent analytics, white light illumination, local microSD storage, and IP67-rated protection.
Key Configuration
Model: AVC-NCV51M | Product Type: 5MP InfiniteColor Motorized Vandal Dome Network Camera | Resolution: 5MP, up to 2592 x 1944 | Lens: 2.8-12mm motorized, F1.2 | Compression: H.265 / H.264 | Storage: microSD up to 256GB | Power: DC12V / PoE | Protection: IP67
Key Features
· 5MP video support with maximum resolution up to 2592 x 1944
· H.265 and H.264 video compression for efficient recording and streaming
· Full Color imaging with White Light LED illumination
· 2.8-12mm motorized F1.2 lens for flexible scene adjustment
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image quality
· Intelligent analytics for smart security monitoring
· Built-in microphone for audio capture
· Built-in microSD card slot supporting up to 256GB
Technical Context
The AVC-NCV51M is built for surveillance applications that require full-color video, flexible lens positioning, and efficient network recording. Its motorized lens allows installers to adjust the viewing angle remotely or during setup, while image enhancement technologies help maintain usable video in scenes with backlight, glare, shadows, or changing illumination.
Installation Notes
The camera supports both DC12V and PoE power, giving installers flexibility for new or existing network camera deployments. Its IP67-rated enclosure supports outdoor installation, and remote monitoring is available through the AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Video | |
| Imaging Device | 1/2.7" |
| Effective Pixels | 5MP 2592(H)×1944(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.007lux @ F1.0(AGC ON) ;B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F No. 1.2 |
| Angular Field of View | H:107(W)-34(T)° V: 56(W)-19(T)° D: 129(W)-39(T)° |
| Min. Object Distance | 1.5m |
| Lens Type | Ø16.7 |
| Operational | |
| IR LED | 2 |
| White Light | 2 |
| IR Viewable Length | Up to 82ft (25m) |
| White Light Viewable Length | Up to 65ft (20m) |
| Type of complementary light | Default white light, switchable infrared light |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Image Setting | Full Color Mode/Day&Night Mode/Smart IIIumination |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 512GB |
| Alarm | N/A |
| Audio | Built-in Mic |
| Hardware Reset | Yes |
| Analytics | Face Detection, Human & Vehicle Detection, Intrusion Detection, Tripwire Detection, Stationary Object Detection, Tripwire Count, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Loitering Detection, Region Entrance Detection, Region Exiting Detection |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream @30fps 5MP(2880x1620), 4MP(2560x1440), 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Sub Stream @30fps 720P(1280x720), VGA(640x480), QVGA(320x240) Mobile Stream @30fps VGA(640x480), QVGA(320x240) |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| Streaming Capability | Triple-Stream(Main/Sub/Mobile) |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Security | IP address filter; Complicated password; Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Max. User Access | Max 7 (admin+user) |
| Application Programming Interface | ONVIF( Profile S/G/T/M) |
| Web Viewer | IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Microsoft Edge V.79 above |
| Environmental | |
| Operating Conditions | -31～+140°F (-35～+60°C)/less than ≤ 90% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption | DC12V: max 6.5W; POE (48V): max 8.1W |
| Mechanical | |
| Material | Metal |
| Dimension | Ø5.8 x 4.5in (Ø148.8 x 115mm) |
| Weight | 2.1lbs (963g) |
