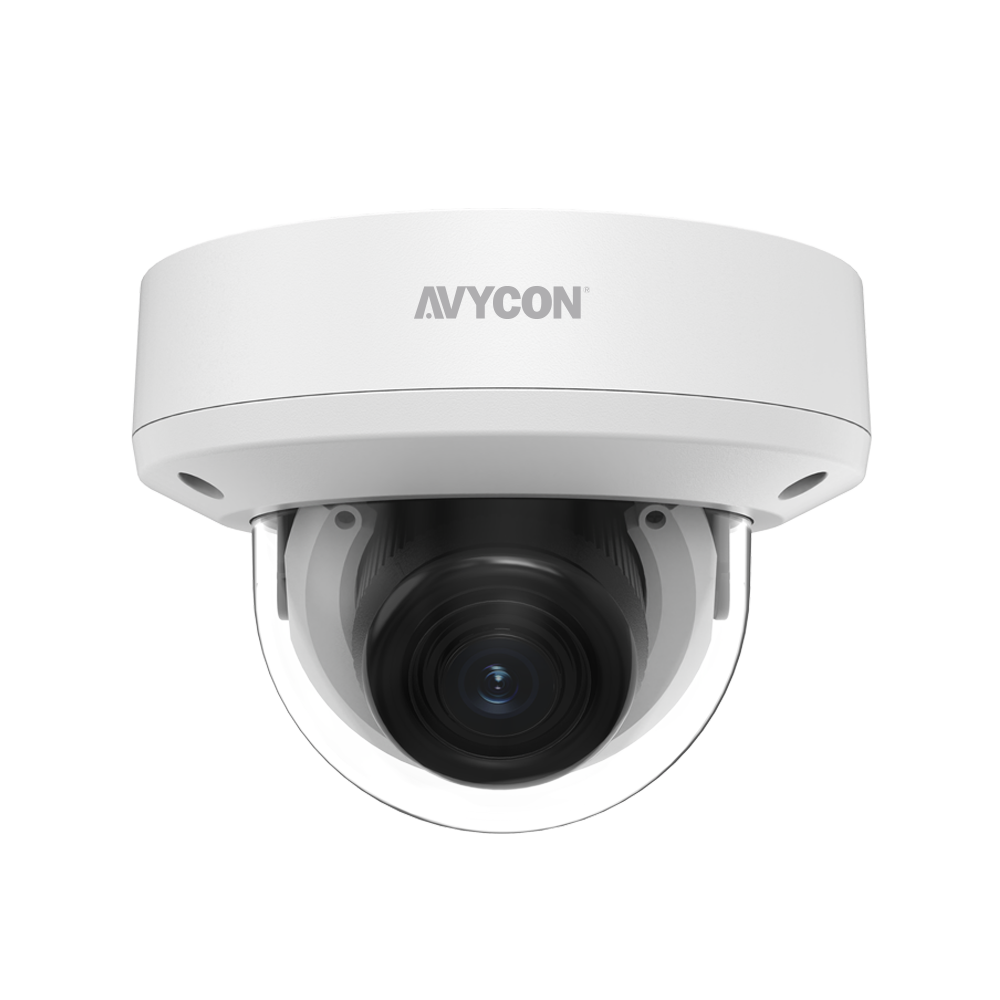

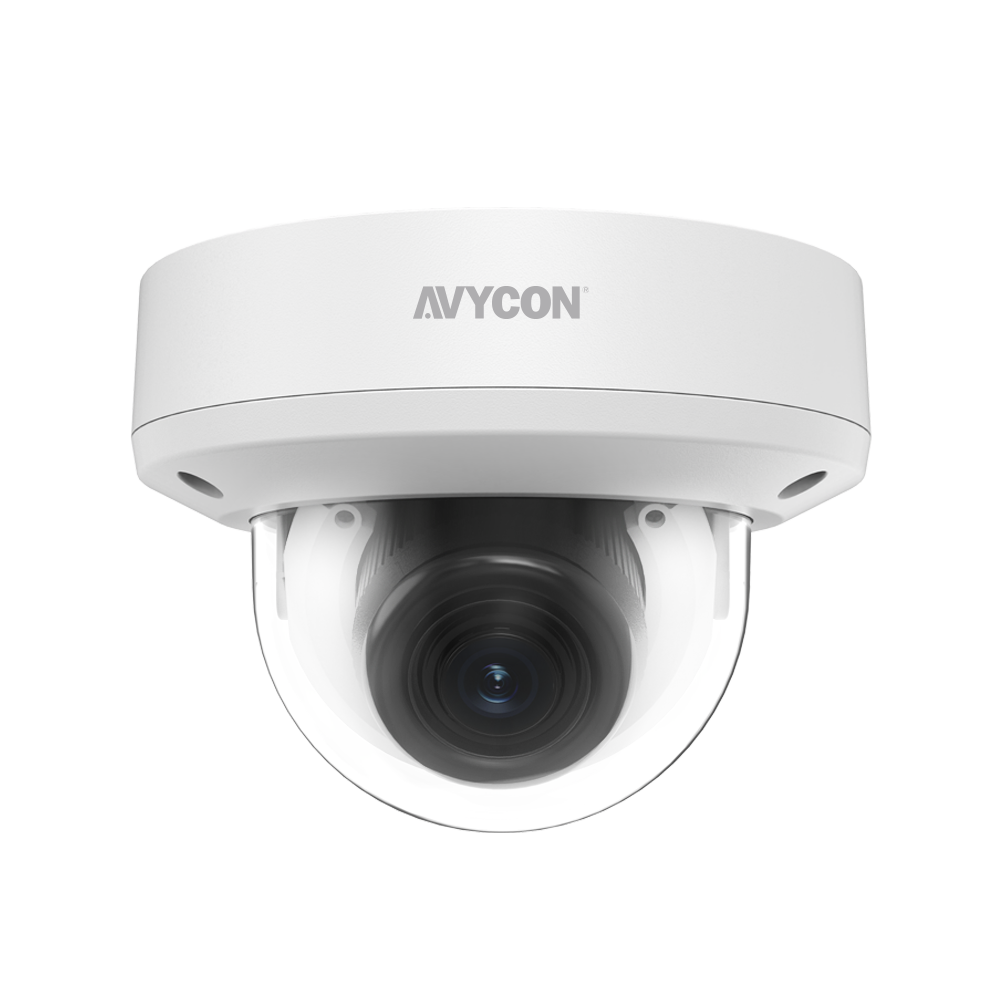

AVYCON - AVC-NCV81M - 8MP H.265 INFINITECOLOR MOTORIZED VANDAL DOME NETWORK CAMERA
Product Overview
The AVYCON AVC-NCV81M is an 8MP H.265 InfiniteColor motorized vandal dome network camera designed for high-resolution full-color surveillance. It combines 4K video, a 2.8-12mm motorized lens, intelligent analytics, white light illumination, local microSD storage, and IP67-rated protection for reliable security monitoring.
Key Configuration
Model: AVC-NCV81M | Product Type: 8MP InfiniteColor Motorized Vandal Dome Network Camera | Resolution: 8MP, up to 3840 x 2160 | Lens: 2.8-12mm motorized, F1.2 | Compression: H.265 / H.264 | Storage: microSD up to 256GB | Power: DC12V / PoE | Protection: IP67
Key Features
· 8MP 4K video with maximum resolution up to 3840 x 2160
· H.265 and H.264 video compression for efficient recording and streaming
· Full Color imaging with White Light LED illumination
· 2.8-12mm motorized F1.2 lens for flexible scene adjustment
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image quality
· Intelligent analytics for smart security monitoring
· Built-in microphone for audio capture
· Built-in microSD card slot supporting up to 256GB
Technical Context
The AVC-NCV81M is built for surveillance applications that require 4K detail, full-color video, and flexible lens positioning. Its motorized lens helps installers adjust the surveillance range, while image enhancement technologies improve visibility in scenes with glare, backlight, shadows, or changing lighting conditions.
Installation Notes
The camera supports both DC12V and PoE power, giving installers flexibility for new or existing network camera deployments. Its IP67-rated enclosure supports outdoor installation, and remote monitoring is available through the AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Video | |
| Imaging Device | 1/2.8" |
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F No. 1.2 |
| Angular Field of View | H:107(W)-34(T)° V: 56(W)-19(T)° D: 129(W)-39(T)° |
| Min. Object Distance | 1.5m |
| Lens Type | Ø16.7 |
| Operational | |
| IR LED | 2 |
| White Light | 2 |
| IR Viewable Length | Up to 82ft (25m) |
| White Light Viewable Length | Up to 65ft (20m) |
| Type of complementary light | Default white light, switchable infrared light |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Image Setting | Full Color Mode/Day&Night Mode/Smart IIIumination |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 512GB |
| Alarm | N/A |
| Audio | Built-in Mic |
| Hardware Reset | Yes |
| Analytics | Face Detection, Human & Vehicle Detection, Intrusion Detection, Tripwire Detection, Stationary Object Detection, Tripwire Count, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Loitering Detection, Region Entrance Detection, Region Exiting Detection |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream @30fps 8MP(3840x2160), 5MP(2592x1944, 3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280x960), 720P(1280x720) Sub Stream @30fps 720P(1280x720), VGA(640x480), QVGA(320x240) Mobile Stream @30fps VGA(640x480), QVGA(320x240) |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| Streaming Capability | Triple-Stream(Main/Sub/Mobile) |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Security | IP address filter; Complicated password; Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Max. User Access | Max 7 (admin+user) |
| Application Programming Interface | ONVIF( Profile S/G/T/M) |
| Web Viewer | IE10/11, Safari V12.1 above ,Firefox V.52 above, Google Chrome V.57 above, Microsoft Edge V.79 above |
| Environmental | |
| Operating Conditions | -31～+140°F (-35～+60°C)/less than ≤ 90% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption | DC12V: max 7.1W; POE (48V): max 9.2W |
| Mechanical | |
| Material | Metal |
| Dimension | Ø5.8 x 4.5in (Ø148.8 x 115mm) |
| Weight | 2.1lbs (963g) |
