AVYCON - AVC-NDB41M-LPR-IK - 4MP H.265 LONG RANGE LPR BULLET NETWORK CAMERA
Product Overview

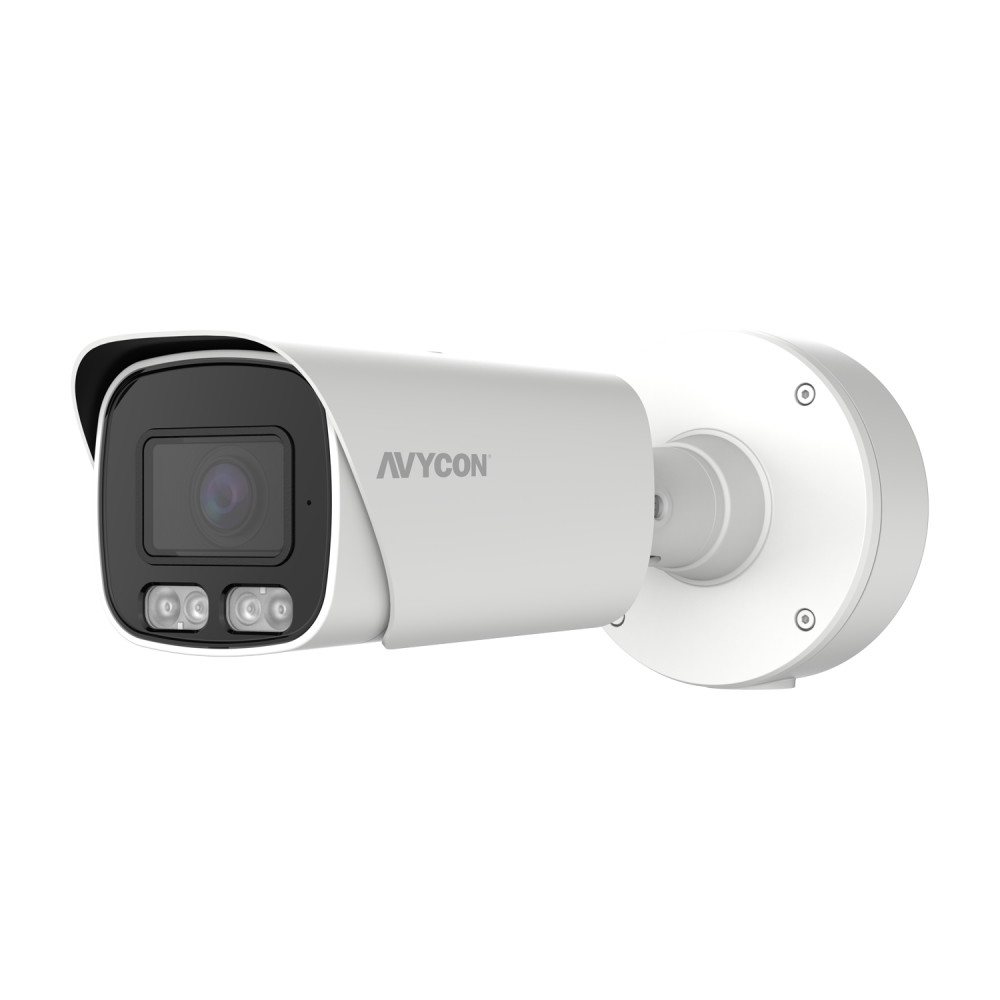

The AVYCON AVC-NDB41M-LPR-IK is a 4MP H.265 long range LPR bullet network camera designed for high-speed license plate recognition and outdoor surveillance. It combines 60fps video, a motorized 2.8-12mm lens, advanced license plate detection, white light illumination, onboard audio, local storage, and rugged IP67/IK10/NEMA 4X protection.
Key Configuration
Model: AVC-NDB41M-LPR-IK | Product Type: 4MP H.265 Long Range LPR Bullet Network Camera | Resolution: 2688 x 1520 @ 60fps | Lens: 2.8-12mm motorized lens, F1.4 to F2.5 | LPR Speed: up to 75mph / 120km/h | Storage: microSD up to 512GB | Protection: IP67 / IK10 / NEMA 4X
Key Features
· 4MP video resolution up to 2688 x 1520 at 60fps
· H.265+, H.265, H.264+, H.264, and MJPEG encoding support
· Day & Night AUTO ICR for reliable operation in changing light conditions
· Motorized 2.8-12mm lens with F1.4 to F2.5 aperture range
· Intelligent analytics featuring advanced license plate detection
· Supports LPR vehicle speeds up to 75mph / 120km/h
· 3D DNR, WDR, HLC, BLC, and ROI encoding for enhanced image performance
· Built-in microphone and speaker with microSD storage up to 512GB
Technical Context
The AVC-NDB41M-LPR-IK is built for long range license plate recognition where fast-moving vehicles must be captured clearly. Its 60fps recording, motorized zoom lens, advanced LPR analytics, WDR, HLC, BLC, 3D DNR, and ROI encoding help improve plate visibility and scene detail in demanding traffic and perimeter monitoring applications.
Installation Notes
The camera supports both DC12V and PoE power, giving installers flexible deployment options. Its IP67, IK10, and NEMA 4X-rated housing is suitable for outdoor installations, while remote monitoring is supported through mobile apps for iOS and Android and CMS software for Windows and Mac.
| Video | |
| Imaging Device | 1/1.8" |
| Effective Pixels | 4MP 2688(H)×1520(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F1.4 to F 2.5 |
| Angular Field of View | H:111(W)-40(T)° V:57(W)-22(T)° D:137(W)-46(T)° |
| Min. Object Distance | W/T:3.28 ft (1 m)∼INF |
| Iris Type | Precise iris |
| Operational | |
| IR LED | 4 |
| WarmLight | 4 |
| IR Viewable Length | Up to 164ft (50m) |
| WarmLight Viewable Length | Up to 98.4ft (30m) |
| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setti | Full Color Mode/Day&Night Mode/Smart IIIumination |
| White Balance | Auto/Man |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 512GB |
| Alarm | 2 input，2 output |
| Audio | 1 input，1 output，1 Built-in microphone |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Smart Feature | Face Recognition, Pedestrian & Vehicle , Tripwire , Object Detection, Tripwire Counting, Heat Map, Crowd Density , Queue Length , License Plate ，Rare Sound， Intrusion，Region Entrance，Region Exiting |
| LPR Vehicle Speed | Up to 75mph (120km/h) |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264/H.265+/H.264+/MJPEG |
| Resolution | Main Stream @60fps 4MP(2688x1520),3MP(2304x1296),1080P(1920x1080),720P(1280x720) Sub Steam @30fps 1080P(1920x1080),720P(1280x720),VGA(640x480) Mobile Stream @30fps VGA(640x480), QVGA（320x240） |
| Video Quality Adjustment | 256Kbps ~ 8Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Security | IP address lter;complicated password;Authenticated username and password |
| Application Programming Interface | ONVIF( Prole S/G/T) |
| Web Viewer | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Environmental | |
| Operating Conditions | -31∼140°F (-35∼+60°C), ≤ 90% RH |
| Ingress Protection | IP67；IK10；NEMA 4X |
| Electrical | |
| Input Voltage / Current | D12V/POE |
| Power Consumption | DC12V：max 8.05W； POE（48V）：max 9.44W |
| Mechanical | |
| Material | Metal |
