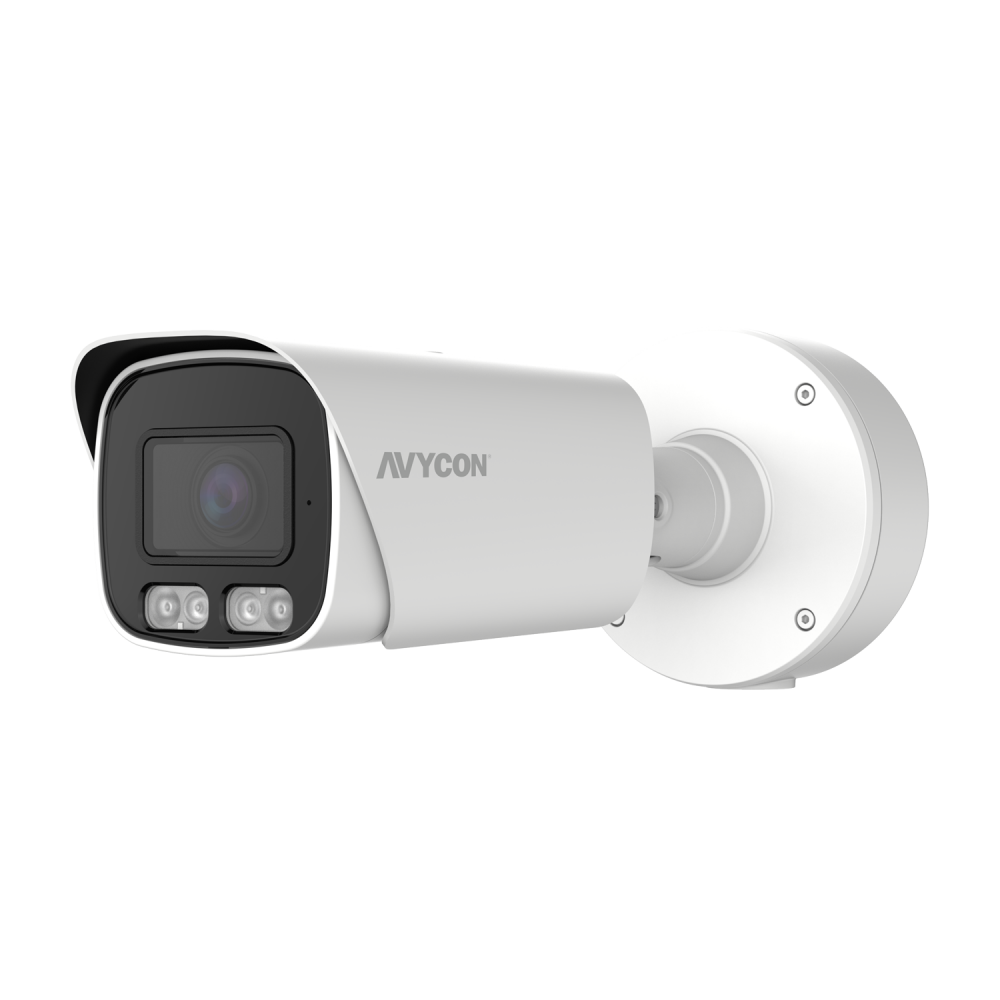

AVYCON - AVC-NDB81M32-LPR-IK - 8MP H.265 LONG RANGE LPR BULLET NETWORK CAMERA
Product Overview
The AVYCON AVC-NDB81M32-LPR-IK is an 8MP H.265 long range LPR bullet network camera designed for high-resolution license plate recognition and outdoor surveillance. It combines 4K video, full color imaging, an 8-32mm motorized lens, intelligent analytics, white light illumination, onboard audio, local storage, and rugged IP67/IK10/NEMA 4X protection.
Key Configuration
Model: AVC-NDB81M32-LPR-IK | Product Type: 8MP H.265 Long Range LPR Bullet Network Camera | Resolution: 3840 x 2160 @ 30fps | Lens: 8-32mm motorized lens, F1.2 ±5% | Storage: microSD up to 512GB | Power: DC12V / PoE | Protection: IP67 / IK10 / NEMA 4X
Key Features
· 8MP video resolution up to 3840 x 2160 at 30fps
· H.265+, H.265, H.264+, H.264, and MJPEG encoding support

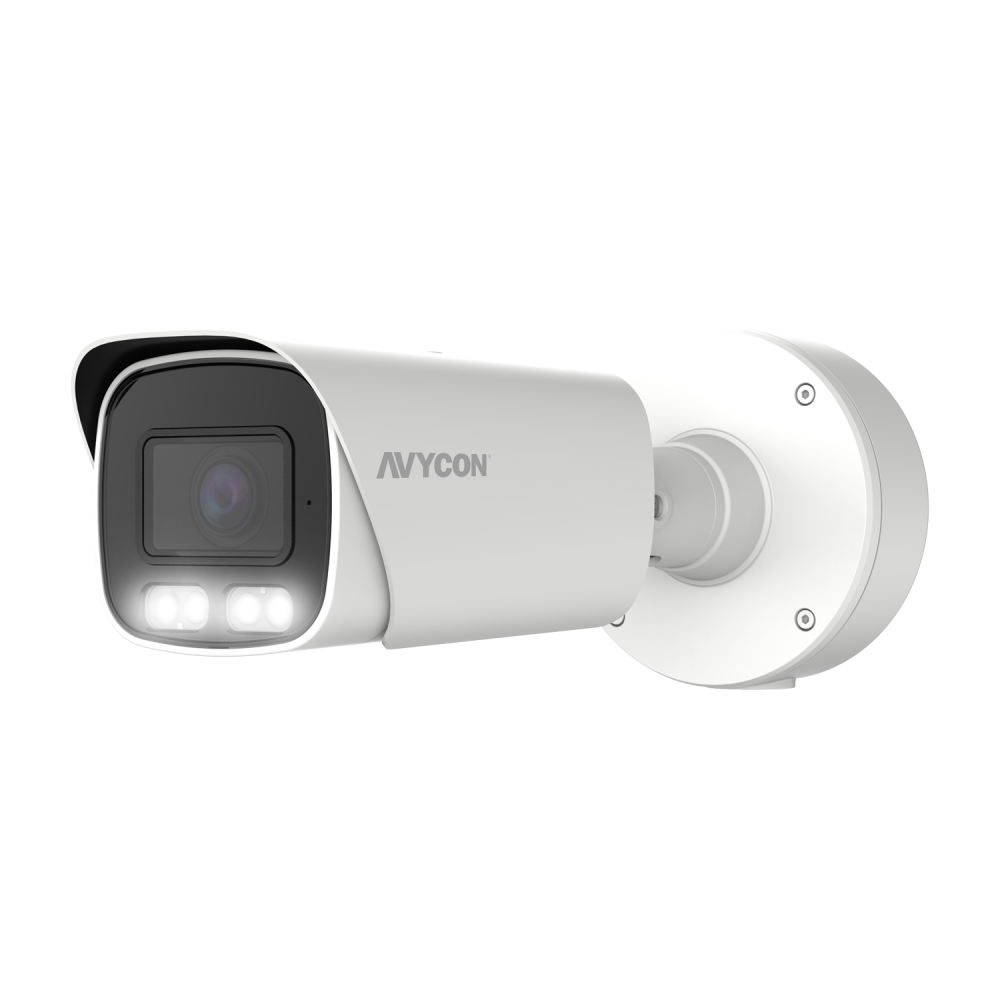

· Full Color Camera design with White Light LED illumination
· 8-32mm motorized lens with F1.2 ±5% aperture
· Intelligent analytics for advanced surveillance applications
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image performance
· Built-in microphone and speaker for audio communication
· Built-in microSD card slot for video and still image capture up to 512GB
Technical Context
The AVC-NDB81M32-LPR-IK is built for long range license plate recognition where high-resolution detail and flexible zoom coverage are required. Its 8MP imaging, motorized 8-32mm lens, intelligent analytics, WDR, HLC, BLC, 3D DNR, and ROI encoding help improve subject visibility and scene clarity in demanding traffic, entry control, and perimeter monitoring environments.
Installation Notes
The camera supports both DC12V and PoE power, giving installers flexible deployment options. Its IP67, IK10, and NEMA 4X-rated housing is suitable for outdoor installations, while remote monitoring is supported through AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Video | |
| Imaging Device | 1/1.8" |
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color: 0.0008 Lux @ (F1.7, AGC ON);0 Lux with IR |
| Lens | |
| Focal Length (Zoom Ratio) | 8-32mm（fast zoom） |
| Max. Aperture Ratio | F1.7 to F 1.76 |
| Angular Field of View | H:40(W)-14(T)° V:27(W)-10(T)° D:49(W)-17(T)° |
| Min. Object Distance | W:4.92 ft (1.5 m) ∼ INF , T:8.20 ft (2.5 m) ∼ INF |
| Iris Type | Precise iris |
| Operational | |
| IR LED | 8 |
| WarmLight | 4 |
| IR Viewable Length | Up to 328 ft (100 m) |
| WarmLight Viewable Length | Up to 98 ft (30 m) |

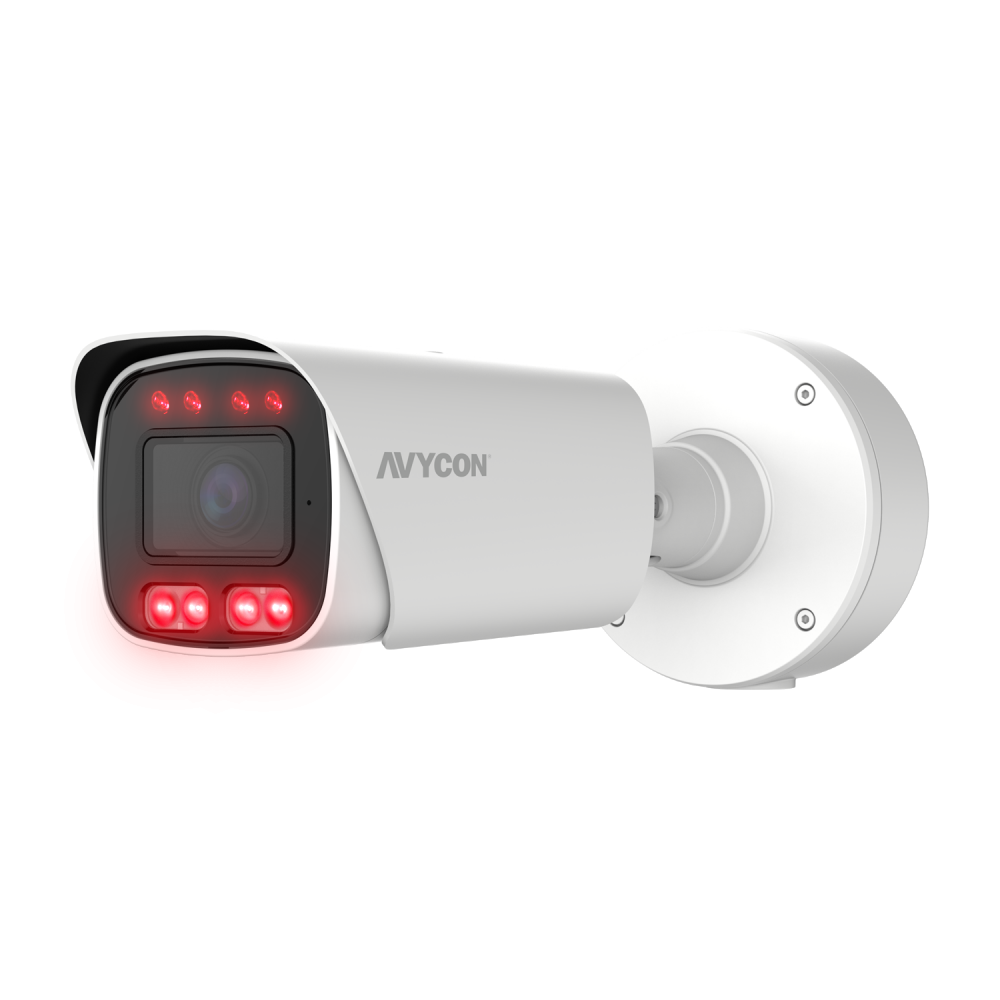

| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode/Day&Night Mode/Smart IIIumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 512GB |
| Alarm | 2 input，2 output |
| Audio | 1 input，1 output，1 Built-in microphone |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Smart Feature | Face Recognition, Pedestrian & Vehicle , Line Crossing , Object Detection, Crossing Counting, Heat Map, Crowd Density , Queue Length , License Plate ，Rare Sound， Intrusion，Region Entrance，Region Exiting |
| LPR Vehicle Speed | Up to 75 mph (120 km/h) |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264/H.265+/H.264+/MJPEG |
| Resolution | Main Stream @30fps 8MP(3840x2160),5MP(3072x1728,2592x1944),4MP(2592x1520),3MP(2304x1296),1080P(1920x1080),720P(1280x720) Sub Steam @30fps 1080P(1920x1080),720P(1280x720),VGA(640x480) Mobile Stream @30fps VGA(640x480), QVGA（320x240） |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Security | IP address lter;complicated password;Authenticated username and password |
| Application Programming Interface | ONVIF( Prole S/G/T) |
| Web Viewer | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| Environmental | |
| Operating Conditions | -31 ∼ 140°F (-35∼+60°C)/less than 90% RH |
| Ingress Protection | IP67；IK10；NEMA 4X |
| Electrical | |
| Input Voltage / Current | D12V/POE |
| Power Consumption | DC12V：max 10.24W； POE（48V）：max 12.28W |
| Mechanical | |
| Material | Metal |
