AVYCON - AVC-NDE51M-B - 5MP H.265 MOTORIZED TURRET NETWORK CAMERA Active Deterrence 24/7 Color
Product Overview
The AVYCON AVC-NDE51M is a 5MP H.265 motorized turret network camera designed for 24/7 full-color active deterrence surveillance. It combines high-resolution video, a 2.8-12mm motorized lens, intelligent analytics, white light and strobe deterrence, two-way audio, local storage, and IP67 outdoor protection.
Key Configuration
Model: AVC-NDE51M | Product Type: 5MP Motorized Turret Network Camera | Resolution: 5MP, up to 2880 x 1620 | Lens: 2.8-12mm motorized, F1.2 | Compression: H.265+ / H.264+ / MJPEG | Storage: microSD up to 512GB | Power: DC12V / PoE | Protection: IP67
Key Features
· 5MP video with maximum resolution up to 2880 x 1620
· H.265+, H.264+, and MJPEG compression for flexible video streaming
· Full Color imaging with active deterrence capability
· 2.8-12mm motorized F1.2 lens for adjustable surveillance coverage
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image quality
· Intelligent analytics for smart event detection

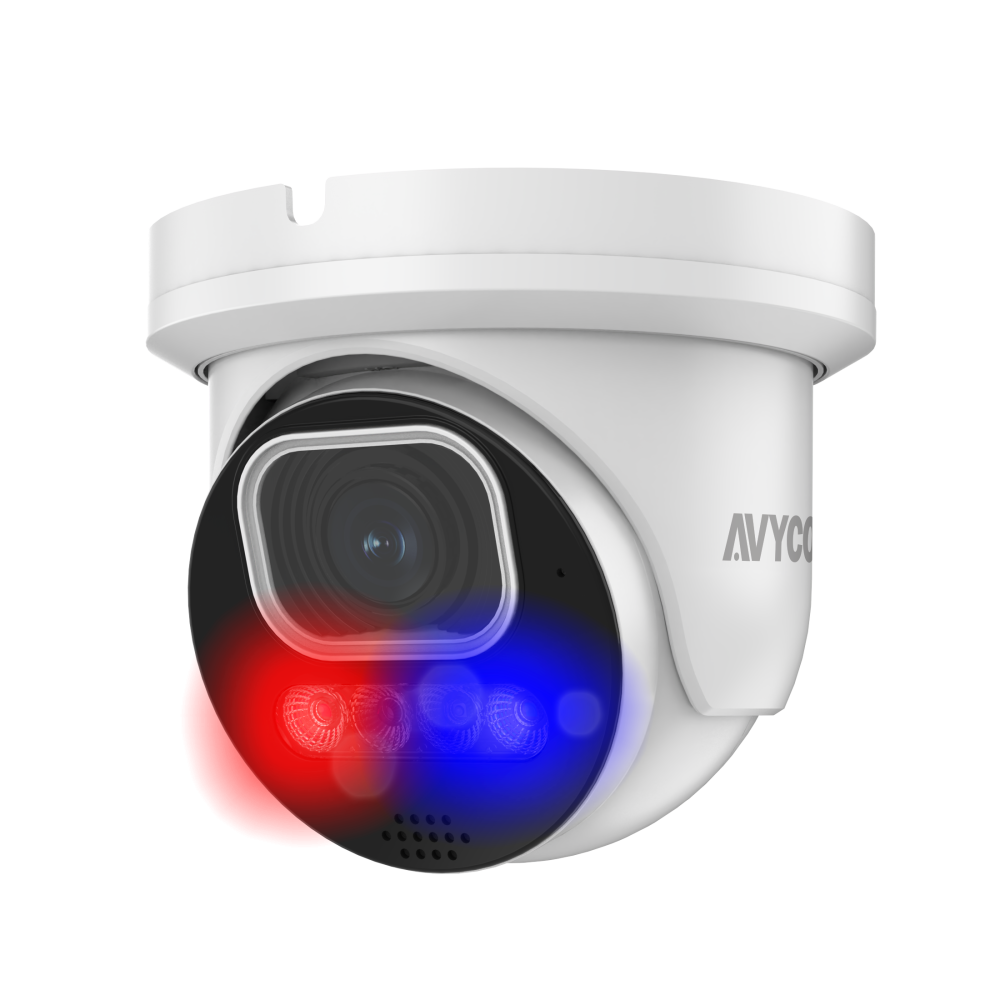

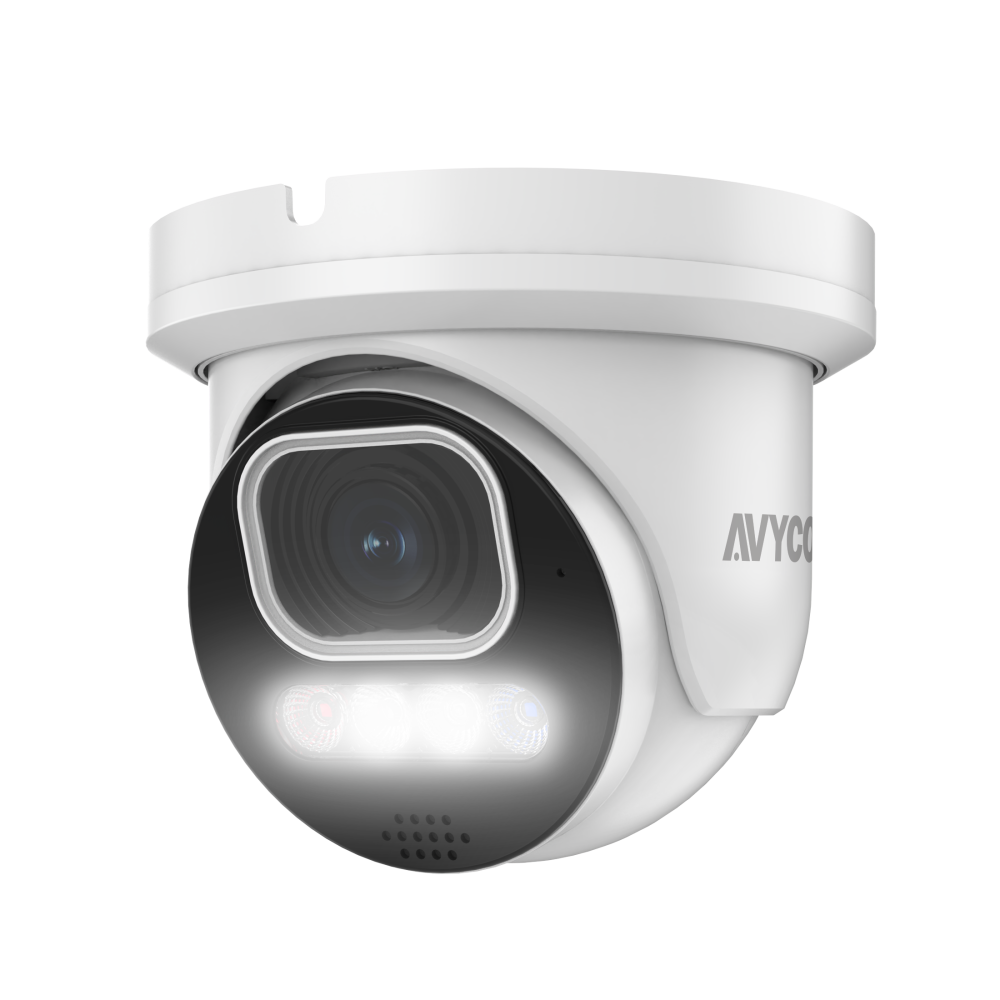

· White Light LED and blue/red strobe light for visual deterrence
· Built-in microphone and speaker for two-way audio communication
Technical Context
The AVC-NDE51M is built for surveillance locations that require clear color images, smart analytics, and active deterrence in one turret camera. Its motorized lens allows installers to fine-tune the field of view, while image enhancement technologies help improve visibility in scenes with backlight, glare, shadows, or changing lighting conditions.
Installation Notes
The camera supports DC12V and PoE power, giving installers flexibility for new or existing network camera deployments. Its IP67-rated housing supports outdoor installation, and remote monitoring is available through the AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Video | |
| Imaging Device | 1/2.7" |
| Effective Pixels | 5MP 2880(H)x1620(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.002lux @ F1.0(AGC ON); B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F No. 1.2 |
| Angular Field of View | H:113(W)-35(T)°, V: 59(W)-20(T)°, D: 138(W)-41(T)° |
| Min. Object Distance | 1.5m |
| Lens Type | Ø16.7 |
| Operational | |
| IR LED | 2 |
| WarmLight | 2 |
| Red Blue Light | 2 (1 Red & 1 Blue) |
| IR Viewable Length | Up to 82ft (25m) |
| WarmLight Viewable Length | Up to 65ft (20m) |

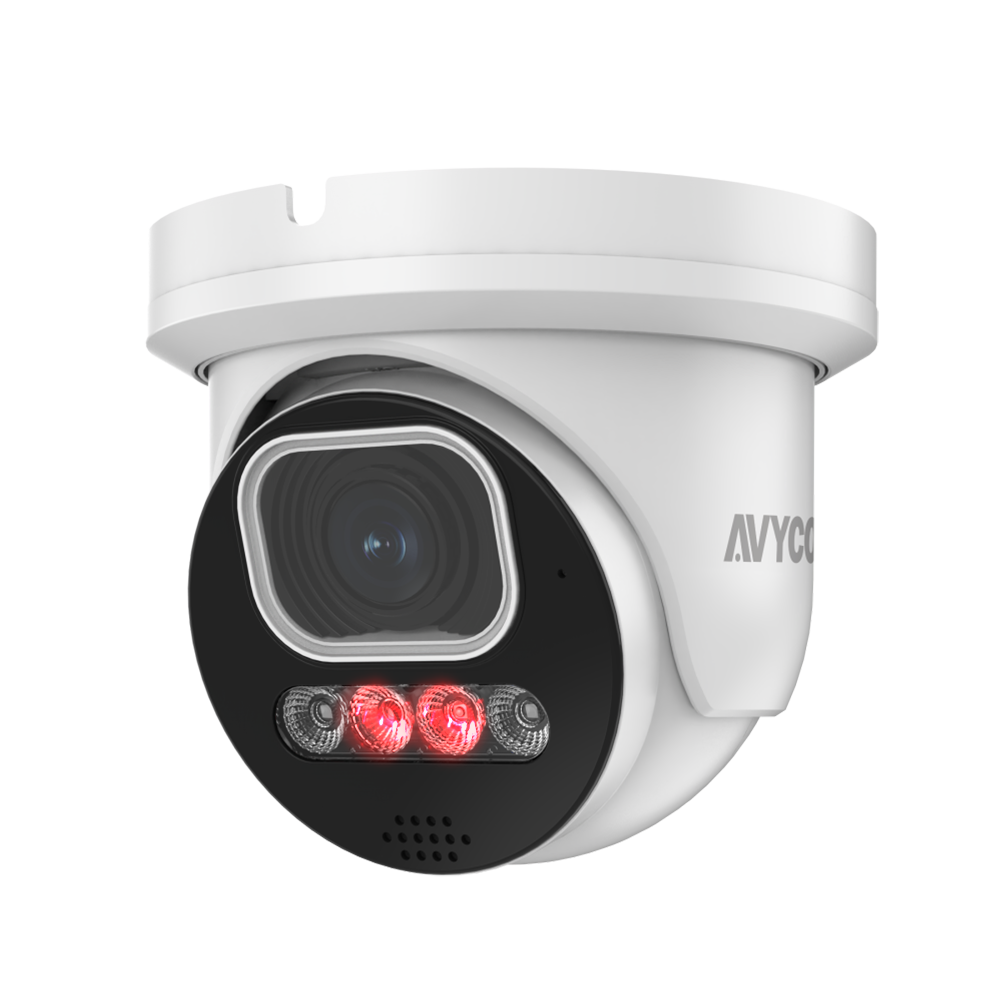

| Type of Complementary Light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode / Day & Night Mode / Smart Illumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 512GB |
| Alarm | 1 input, 1 output |
| Alarm Event | Warning Light, Siren, E-mail Notification, Event Push, FTP Picture Upload, Micro SD recording |
| Audio | 1 input, 1 output, Built-in microphone & Speaker |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Analytics | Face Detection (FD), Pedestrian & Vehicle Detection (PD&VD), Intrusion Detection (ID), Line Crossing Detection (TD), Tripwire Counting (TC), Stationary Object Detection (OBJ), Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD), License Plate Detection (LPR), Rare Sound Detection (RSD), Tripwire Count (TC), Queue Length Detection (QD), Heat Map (HM), Loitering Detection (LD), Region Entrance / Exiting Detection |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream@30fps 5MP(2880x1620), 4MP(2560X1440), 3MP(2304x1296),1080P(1920x1080), 720P(1280x720) Sub Stream@30fps 720P(1280x720), VGA(640x480), QVGA(320x240) Mobile Stream@30fps VGA(640x480), QVGA(320x240) |
| Video Quality Adjustment | 256Kbps ~ 8Mbps |
| Bitrate Control Method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Security | IP address filter; Complicated password; Authenticated username and password |
| Application Programming Interface | ONVIF (Profile S / G / T / M) |
| Web Viewer | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| Environmental | |
| Operating Conditions | -31°~+140°F (-35～+60°C) / less than ≤ 90% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption | DC12V: max 6.5W; POE (48V): max 8.1W |
| Mechanical | |
| Material | Metal |
