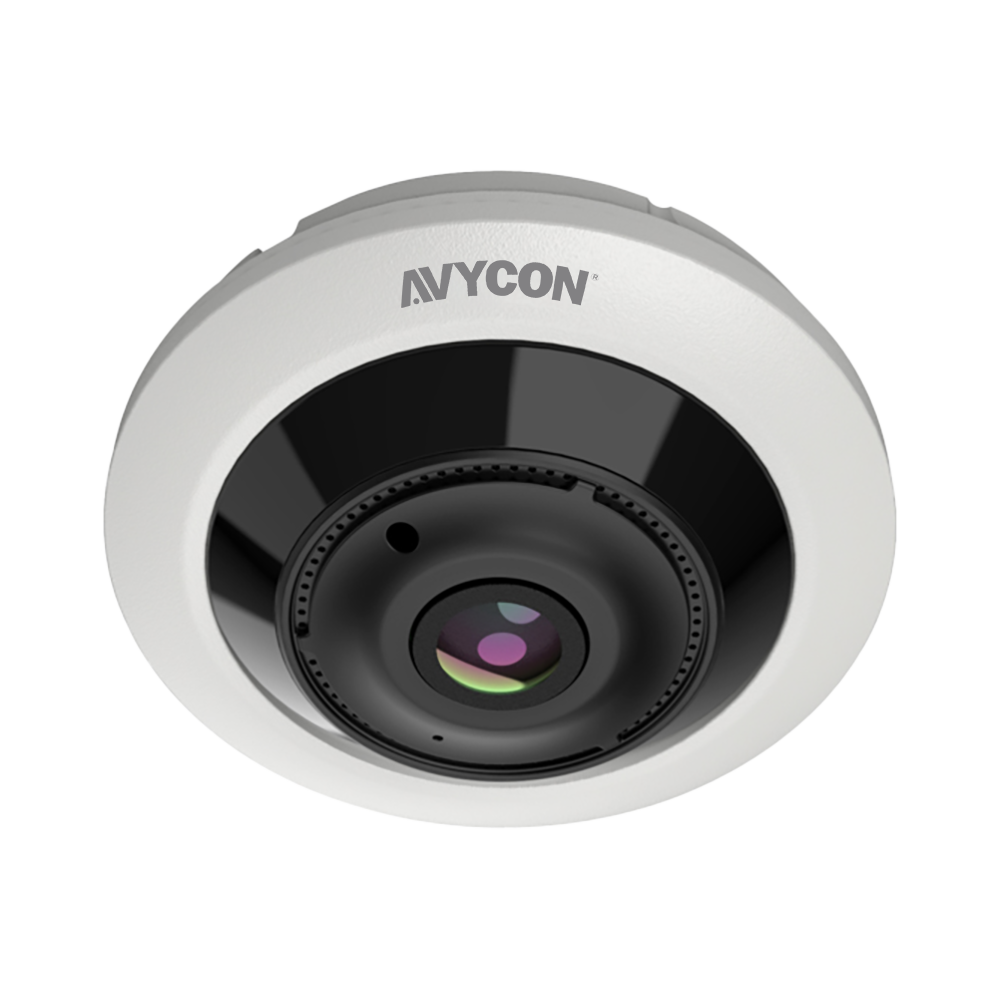

AVYCON - AVC-NF121F-HD - 12MP H.265 FISHEYE NETWORK CAMERA
Product Overview
The AVYCON AVC-NF121F-HD is a 12MP H.265 fisheye network camera designed for wide-area panoramic surveillance with 360-degree scene coverage. It combines a 12MP fisheye sensor, fixed 2.0mm lens, intelligent analytics, built-in audio, local storage, and IP66-rated protection in one compact camera platform.
Key Configuration
Model: AVC-NF121F-HD | Product Type: 12MP H.265 Fisheye Network Camera | Resolution: 3536 x 3536 | Lens: 2.0mm fixed fisheye lens | View: 360-degree panoramic view with e-PTZ | Storage: microSD up to 512GB | Power: PoE / DC12V | Protection: IP66
Key Features
· 12MP video resolution up to 3536 x 3536
· H.265+, H.265, H.264+, H.264, and MJPEG encoding support
· 360-degree fisheye lens with panoramic view and e-PTZ function
· 3D DNR, WDR, HLC, and BLC for improved image performance
· Intelligent analytics for advanced event detection and monitoring
· Smart IR illumination up to 32.8ft / 10m
· Built-in microphone and speaker for audio support
· Built-in microSD card slot for local storage up to 512GB
Technical Context
The AVC-NF121F-HD uses a high-resolution fisheye imaging platform to provide full 360-degree coverage from a single camera position. Its panoramic view and e-PTZ function allow operators to digitally navigate the scene, while hardware decoding support helps improve viewing and playback performance in compatible systems.
Installation Notes
The camera supports PoE and DC12V power for flexible installation. Its IP66-rated housing is suitable for protected outdoor or demanding indoor environments, while remote monitoring is supported through the mobile app and management software.
| Video | |
| Image Sensor | 1/1.6" Progressive CMOS |
| Max. Resolution | 3536x3536 |
| Main Stream Resolution | 3536x3536, 3000x3000, 2560x2560, 2160x2160, 1520x1520, 1080x1080, 720x720 |
| Sub Stream Resolution | 1080x1080, 720x720, 480x480, 240x240 |
| Mobile Stream Resolution | N/A |
| Max. Framerate | 30fps/25fps (60Hz/50Hz) |
| Min. Illumination (Color) | 0.009 lux @ F1.6 (AGC ON) |
| Min. Illumination (B/W) | 0 lux @ IR ON |
| Codec | |
| Video Compression | H.265/H.264/H.265+/H.264+/MJPEG |
| Audio Compression | G.711A/U |
| Lens | |
| Focal Length | 2.0mm |
| Lens Type | Fixed |
| Angular Field of View | H: 180° (Wall Mount) H: 360° (Ceiling Mount) |
| Max. Aperture Ratio | F2.8 |
| Min. Object Distance | 4.9ft (1.5m) |
| DORI | |
| DORI | Wide: Detection 216.5ft (66m), Observation 86.6ft (26.4m), Recognition 43.3ft (13.2m), Identification 21.6ft (6.6m) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Manual Adjustment |
| Operational | |
| IR LED | 3 |
| White LED | N/A |
| Red / Blue LED | N/A |
| Light Viewable Length | IR: Up to 32.8ft (10m) |
| Image Mode | Image / Color / B&W Mode |
| Audio | Built-in MIC / Speaker |
| Alarm | 1 x Input, 1 x Output |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | 3D DNR |
| Analytics | Tripwire Detection, Tripwire Counting, Heat Map, Crowd Density Detection, Queue Length Detection, Rare Sound Detection, Loitering Detection, Region Entrance Detection, Region Exiting Detection |
| Active Deterrence | N/A |
| Camera Title | Up to 31 characters |
| Backlight Compensation | BLC, HLC, WDR |
| Motion Detection | Rectangle Grid (8 Levels of Sensitivity) |
| Privacy Masking | 6 Rectangle Zones |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | Auto / Manual (1/5 ~ 1/20000s) |
| Video Rotation | Flip, Corridor, Angle Adjustment |
| Alarm Triggers | Motion, Alarm, Sound Detection |
| Alarm Events | Siren, Event Push, E-mail Notification, Image file upload via FTP, Video file upload via FTP, Micro SD recording at event triggered |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | IP address filter, Password protection, Digest authentication, Complicated password, IEEE 802.1X authentication, WSSE for ONVIF, Brute-Force Defense, HTTPS TLS 1.2/1.3, SNMPv1.3, RTSP over HTTPS, Security audit log, Encrypted firmware, Host authentication (MAC-address), Auto logout, watermark, Secure boot |
| Bitrate Control | CBR (256Kbps ~ 16Mbps), VBR (256Kbps ~ 16Mbps) |
| Streaming | Unicast / Multicast |
| Application Programming Interface | ONVIF Profile S/G/T/M |
| General | |
| SD Card Slot | Micro SD slot, up to 512GB |
| Starllion Ready | Yes |
| Ingress Protection | IP66 |
| Camera System | Network |
| Product Series | Diversity |
| Product Dimensions | 5.14" × 2.17" (Ø120 × 55 mm) |
| Product Weight | 0.88 lb (400 g) |
| Material | Metal |
| Color | White |
| Housing Style | Fisheye |
| Electrical & Environmental | |
| Power Consumption | Max. 9.6 W |
| Power Input Voltage | PoE (IEEE 802.3af) / 12VDC |
| Operating Condition | -31°F to 140°F (-35°C to +60°C) / ≤ 90% RH |
| Certification & Standards | |
| NDAA Compliant | Yes |
| EMC | EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A2:2024, EN 61000-3-3:2013+A2:2021+AC:2022-01 |
| Safety | CE: EN IEC 62368-1:2020+A11:2020, FCC: FCC Rules and Regulations Part 15 Subpart B |
| Environment | CE-RoHS:(EU) 2015/863, IEC60529, IEC60068-2-14 |
