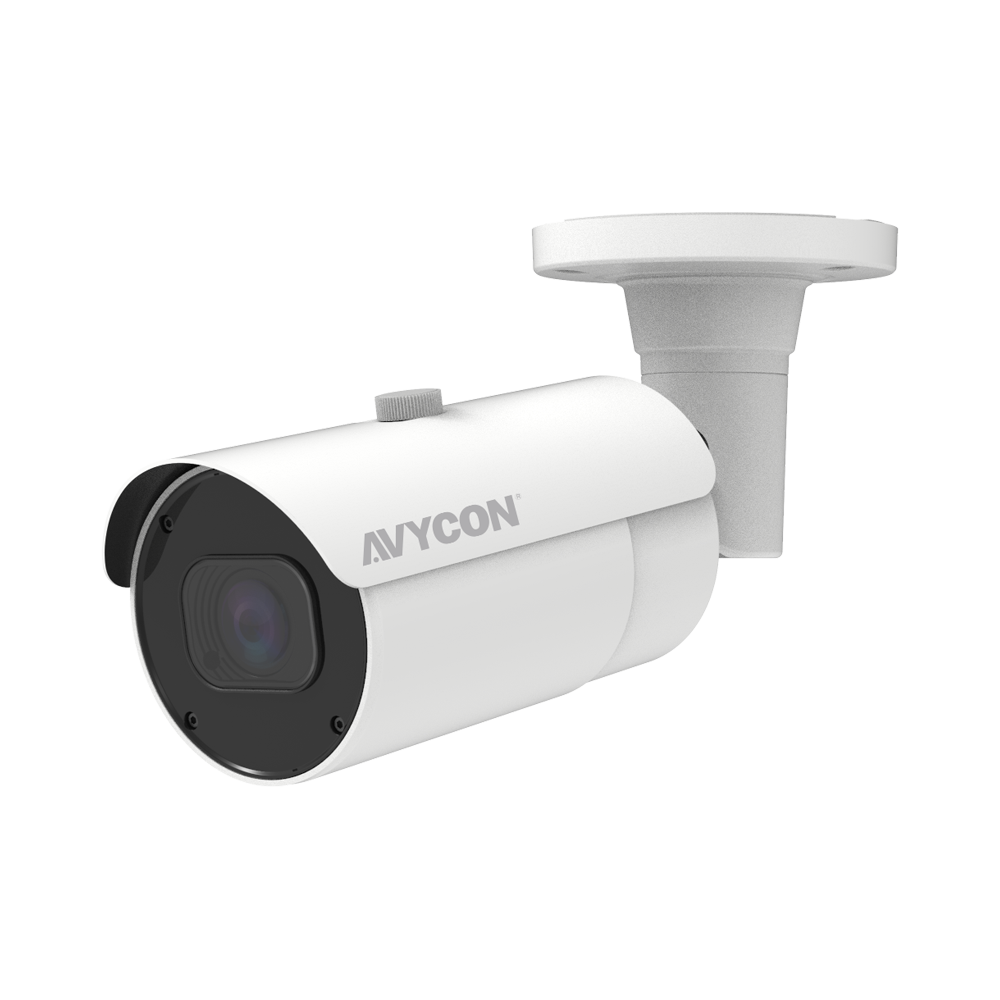

AVYCON - AVC-NKB81M50 - 8MP H.265 LONG RANGE LPR BULLET NETWORK CAMERA
Product Overview
The AVYCON AVC-NKB81M50 is an 8MP H.265 long range LPR bullet network camera designed for high-resolution vehicle and perimeter surveillance. It combines 4K video, a motorized 5-50mm lens, Day & Night AUTO ICR, intelligent analytics, and local microSD storage support in a rugged outdoor-ready bullet camera platform.
Key Configuration
Model: AVC-NKB81M50 | Product Type: 8MP Long Range LPR Bullet Network Camera | Resolution: 8MP / 3840x2160 @ 30fps | Lens: Motorized 5-50mm F2.0 | Video Compression: H.265+, H.265, H.264+, H.264, MJPEG | Storage: microSD up to 256GB | Protection: IP67 | Power: DC12V / PoE
Key Features
· 8MP 3840x2160 video resolution at 30fps
· Motorized 5-50mm long range lens for flexible LPR coverage
· H.265+, H.265, H.264+, H.264, and MJPEG encoding support
· Day & Night AUTO ICR for around-the-clock monitoring
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image performance
· Intelligent analytics for advanced surveillance applications
· Built-in microSD card slot supporting video and still image capture up to 256GB
· IP67 ingress protection with DC12V or PoE power options
Technical Context
The AVC-NKB81M50 is built for long range license plate recognition and detailed outdoor monitoring where both resolution and lens reach are important. Its motorized 5-50mm lens allows installers to adjust the field of view for vehicle lanes, gates, driveways, and other controlled access points, while H.265 compression helps reduce bandwidth and storage usage.
Installation Notes
This camera supports DC12V or PoE power supply for flexible installation. The IP67-rated housing is suitable for outdoor environments, and remote monitoring is supported through the AVYCON ONE mobile app and AVYCON CMSONE CMS.
| Video | |
| Imaging Device | 1/2.8" Progressive CMOS |
| Resolution | Main Stream: 3840x2160, 3072x1728, 2592x1944, 2592x1520, 2304x1296, 1920x1080, 1280x960, 1280x720 Sub Stream: 1920x1080, 1280x720, 640x480 Mobile Stream: 640x480, 320x240 |
| Max. Framerate | Main Stream: Max. 30fps/25fps (60Hz/50Hz) Sub Stream: Max. 30fps/25fps (60Hz/50Hz) Mobile Stream: Max. 30fps/25fps (60Hz/50Hz) |
| Min. Illumination | Color: 0.009 lux @ F1.6 (AGC on) B/W: 0 lux (IR LED on) |
| Compression | Video: H.265+/H.265 Main Profile, H.264+/H.264 High Profile, MJPEG (Sub Stream Only) Audio: G.711a / G.711u |
| Bitrate Control | CBR or VBR (256Kbps ~ 16Mbps) |
| Lens | |
| Focal Length (Zoom Ratio) | 5~50mm |
| Max. Aperture Ratio | F2.0±5% |
| Angular Field of View | Horizontal: 49(W)7(T), Vertical:27(W)7(T), Diagonal:57(W)~8(T) |
| Min. Object Distance | 0.65ft (0.2M) |
| Focus Control | Simple Focus |
| Lens Type | Motorized (Ø14) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Adjustment | Manual Adjustment |
| Operational | |
| Camera Title | Title Displayed up to 32 characters |
| Day & Night | AUTO (ICR) |
| Exposure Compensation | BLC, HLC, WDR |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Motion Detection | Rectangle Grid (8 Levels of Sensitivity) |
| Privacy Masking | 4 Rectangle Zones |
| Gain Control | AUTO |
| White Balance | AUTO / MANUAL |
| LDC | N/A |
| Eletronic Shutter Speed | AUTO / Manual (1/5 ~ 1/20000s) |
| Video Rotation | Flip / Mirror |
| Analytics | Face Recognition (FR),Pedestrian & Vehicle Detection (PD&VD), Intrusion Detection (ID), Line Crossing Detection (TD), Tripwire Counting (TC), Stationary Object Detection (OBJ), Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD), License Plate Detection (LPR), Rare Sound Detection (RSD), Loitering Detection (LD), Region Exiting/Entering (RE/E) |
| Alarm I/O | 1 Input / 1 Output |
| Alarm Triggers | Motion, Alarm, Sound Detection |
| Alarm Events | Notification via E-mail, Image file upload via FTP, Video file upload via FTP, Image file upload to Cloud (Dropbox), Video file upload to Cloud (Dropbox), Micro SD recording at event triggered, Event Push via HTTP / UDP |
| Audio In | 1 Line-In (RCA) |
| Audio Out | 1 Line-Out (RCA) |
| IR Viewable Length | 262ft (80M) |
| Network | |
| Ethernet | RJ45 (10/100BASE-T) |
| Streaming | Unicast / Multicast |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Security | Login Authentication, IP Address Filtering, User access log |
| Application Programming Interface | ONVIF Profile S/G/T, REST API |
| General | |
| Webpage Language | English, Korean |
| Edge Storage | Micro SD/SDHC/SDXC Slot (up to 512GB) with video and still image capture function |
| Memory | N/A |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -31°~140°F (-35°~+60°C) / less than ≤ 95% RH |
| Storage Temperature / Humidity | |
| Certification | IP67 |
| Input Voltage | PoE (IEEE802.3at) / 12VDC |
| Power Consumption | Max. 5W (IR LED off), Max. 10W (IR LED on) |
| Mechanical | |
| Color / Material | White / Metal |
| Product Dimensions / Weight | Ø11.02x3.41in (Ø280x86.5mm) / 1.79lbs (811g) |
| DORI (EN62676-4 STANDARD) | |
| Detect (25PPM / 8PPF) | |
| Observe (63PPM / 19PPF) | |
| Recognize (125PPM / 38PPF) | |
| Identify (250PPM / 76PPF) | |
