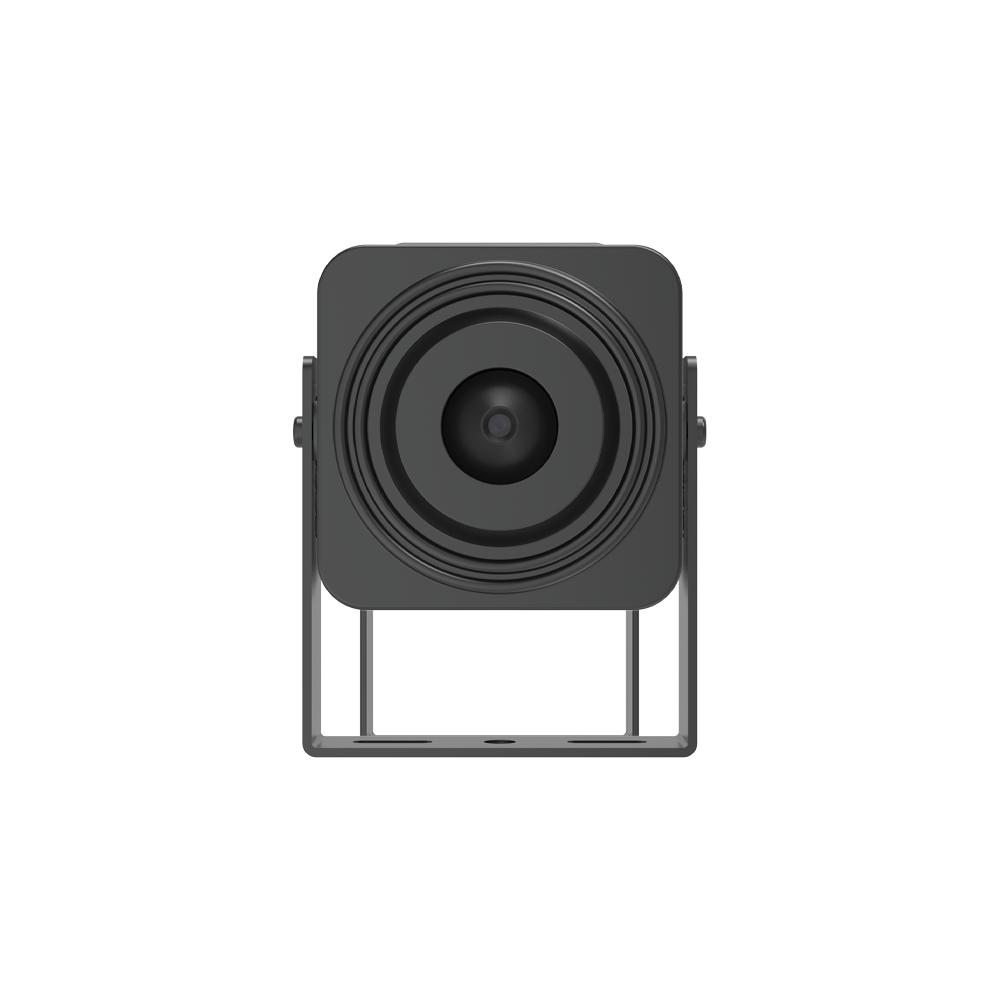

AVYCON - AVC-NMS51P20 - 5MP H.265 FIXED MINIATURE NETWORK CAMERA
Product Overview
The AVYCON AVC-NMS51P20 is a 5MP H.265 fixed miniature network camera designed for compact surveillance installations that require high-resolution video in a small form factor. It combines 2880x1620 video at 30fps, a fixed 2.0mm M12 lens, Smart H.265/H.264 encoding, triple streaming, ONVIF support, and DC12V/PoE power flexibility.
Key Configuration
Model: AVC-NMS51P20 | Product Type: 5MP Fixed Miniature Network Camera | Resolution: 2880x1620 @ 30fps | Imaging Device: 1/2.7" Progressive CMOS | Lens: Fixed 2.0mm M12 | Field of View: 96° horizontal, 49° vertical, 118° diagonal | Power: DC12V / PoE 802.3af | Compliance: NDAA
Key Features
· 5MP resolution delivers detailed 2880x1620 surveillance video
· Supports 30fps recording for smooth live viewing and playback
· Smart H.265 and H.264 encoding helps optimize bandwidth and storage usage
· Fixed 2.0mm lens provides a wide 96° horizontal field of view
· 3D DNR, WDR, BLC, HLC, and ROI encoding improve image quality in challenging scenes
· Triple-stream support provides flexible viewing and recording options
· ONVIF Profiles G, M, S, and T support integration with compatible video systems
· DC12V and PoE 802.3af power options simplify installation
· NDAA compliant design supports regulated security projects
Technical Context
The AVC-NMS51P20 uses a 1/2.7" progressive CMOS sensor with 5MP effective pixels for detailed image capture in compact security applications. Its fixed M12 lens offers a wide viewing angle, making it suitable for close-range monitoring, discreet installations, and areas where a compact camera body is required.
Image enhancement functions such as 3D DNR, WDR, BLC, HLC, and ROI encoding help improve usable image detail in scenes with mixed lighting, backlight, or high contrast.
Installation Notes
The camera supports DC12V and PoE 802.3af power for flexible deployment. Its operating temperature range of -31°F to 140°F supports use in demanding environments where compact, reliable network video coverage is needed.
| Video | |
| Imaging Device | 1/2.7" Progressive CMOS |
| Effective Pixels | 5MP 2880(H) x 1620(V) |
| Min. Illumination | Color 0.004lux @ F1.6(AGC ON); B/W 0 lux @ IR ON |
| Lens Type | |
| Focal Length (Zoom Ratio) | 2.0mm |
| Max. Aperture Ratio | F 2.8 |
| Angular Field of View | Horizontal: 96°, Vertical:49°, Diagonal: 118° |
| Min. Object Distance | 0.98ft (0.3m) |
| Lens Type | Fixed (M12) |
| Operational | |
| IR Viewable Length | N/A |
| Camera Title | Title displayed up to 31 characters |
| Day & Night | IR cut filter with auto switch (Day/Night/Image/Schedule) |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | N/A |
| Alarm I/O | N/A |
| Audio I/O | 1 input, 1 output |
| Hardware Reset | Yes |
| Analytics | Face Detection, Human & Vehicle Detection, Intrusion Detection, Tripwire Detection, Stationary Object Detection, Tripwire Count, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Loitering Detection, Region Entrance Detection, Region Exiting Detection |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265+, H.265, H.264+, H.264, MJPEG |
| Resolution | Main Stream@30fps 5MP(2880x1620), 4MP(2560x1440), 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Sub Stream@30fps 720P(1280x720), VGA(640x480), QVGA(320x240) Mobile Stream@30fps VGA(640x480), QVGA(320x240) |
| Video Quality Adjustment | 256Kbps ~ 8Mbps |
| Bitrate Control Method | CBR/VBR |
| Streaming Capability | Triple-Stream (Main/Sub/Mobile) |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Web browser | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| Security | IP address filter; Complicated password; Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Application Programming Interface | ONVIF Profile G/M/S/T |
| Environmental | |
| Operating Conditions | -31 ~ 140°F (-35 ～ +60°C) / less than ∠ 90% RH |
| Electrical | |
| Input Voltage / Current | DC12V/PoE (IEEE802.3af) |
| Mechanical | |
| Material | Metal |
| Dimension | 1.50 x 1.50in (38.31 x 38.31mm) |
| Weight | 0.66lb (300g) |
