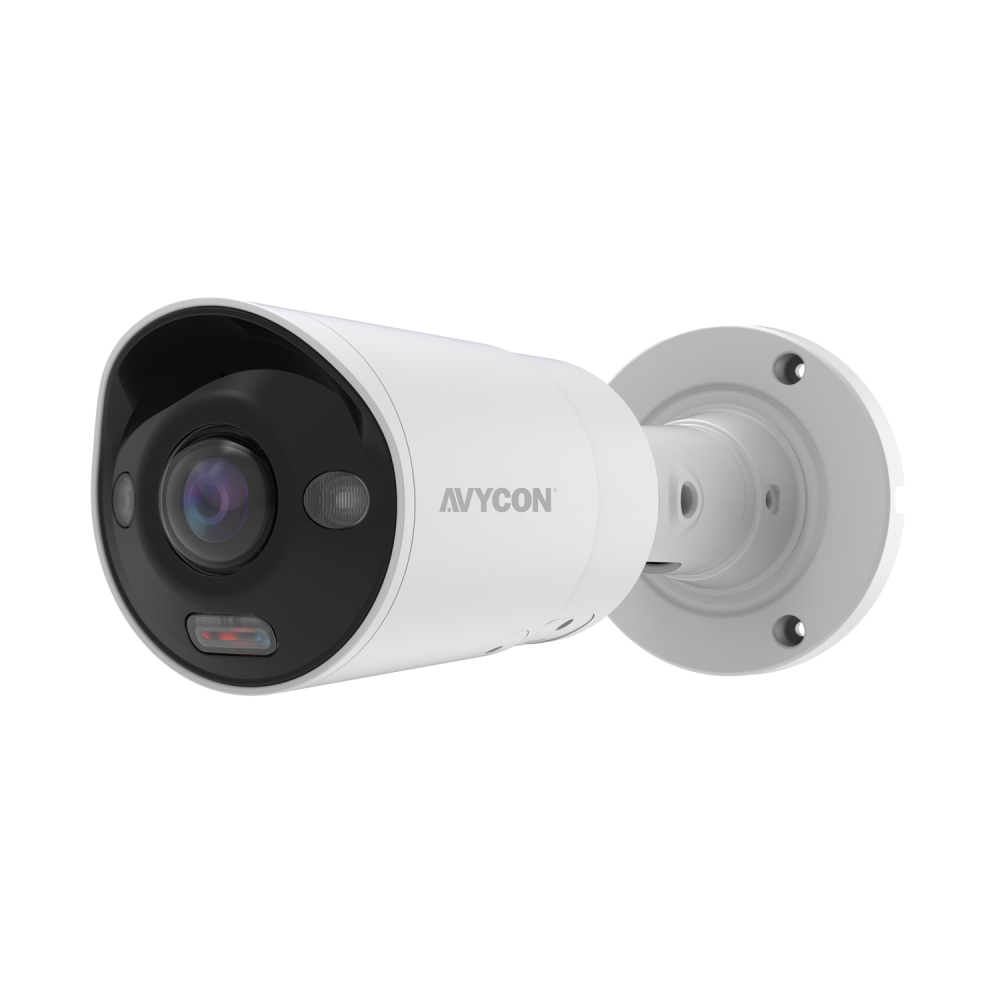

AVYCON - AVC-NPB51F180 - 5MP PANORAMIC BULLET NETWORK CAMERA
Product Overview
The AVYCON AVC-NPB51F180 is a 5MP panoramic bullet network camera designed for wide-area surveillance with full-color imaging and active deterrence. It combines 2880 x 1620 resolution, a 2.0mm fixed panoramic lens, intelligent analytics, two-way audio, local microSD storage, and IP67 outdoor protection in one bullet camera platform.
Key Configuration
Model: AVC-NPB51F180 | Product Type: 5MP Panoramic Bullet Network Camera | Resolution: 2880 x 1620 | Lens: 2.0mm fixed lens, F2.2 | Compression: H.265+, H.265, H.264+, H.264, MJPEG | Storage: microSD up to 512GB | Power: DC12V / PoE | Protection: IP67
Key Features
· 5MP panoramic video resolution for wide-area surveillance coverage
· H.265+, H.265, H.264+, H.264, and MJPEG video compression support
· Full Color imaging with active deterrence functionality
· 2.0mm fixed F2.2 lens for broad scene capture
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image quality
· Intelligent analytics for smart event detection and security monitoring

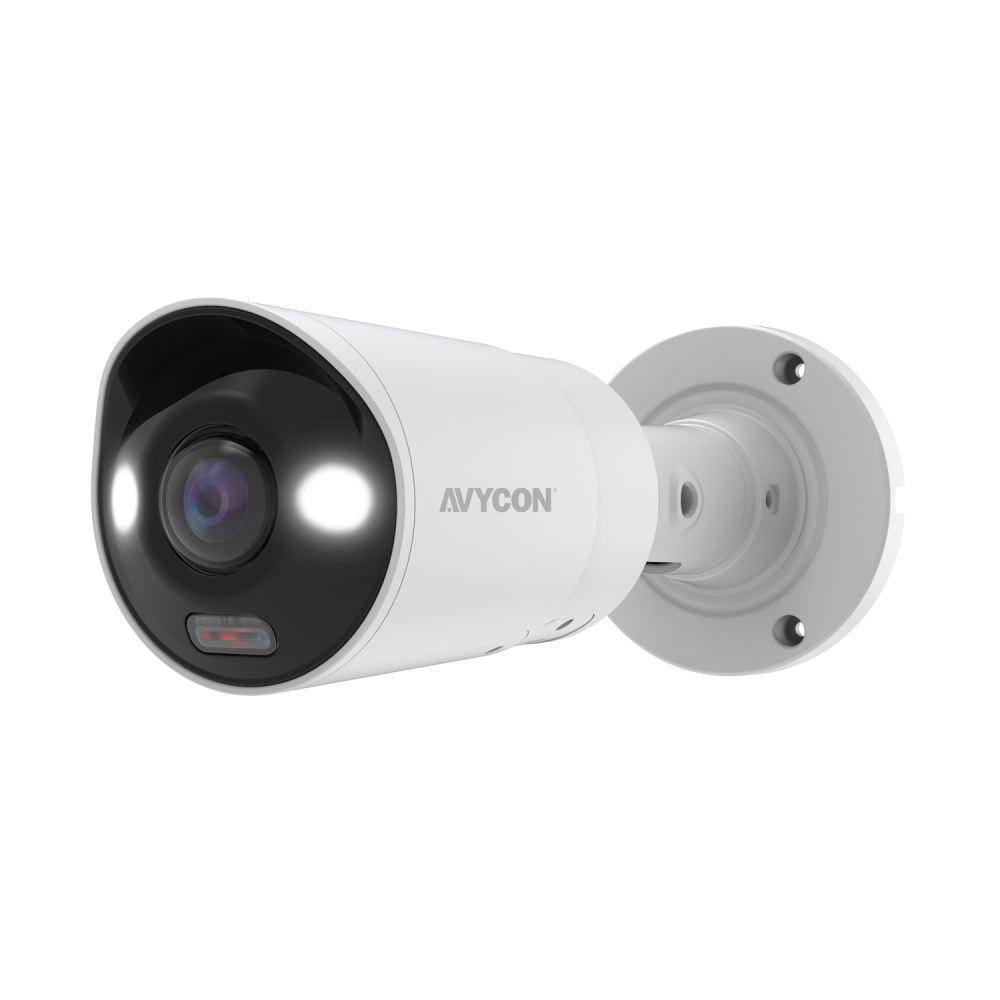

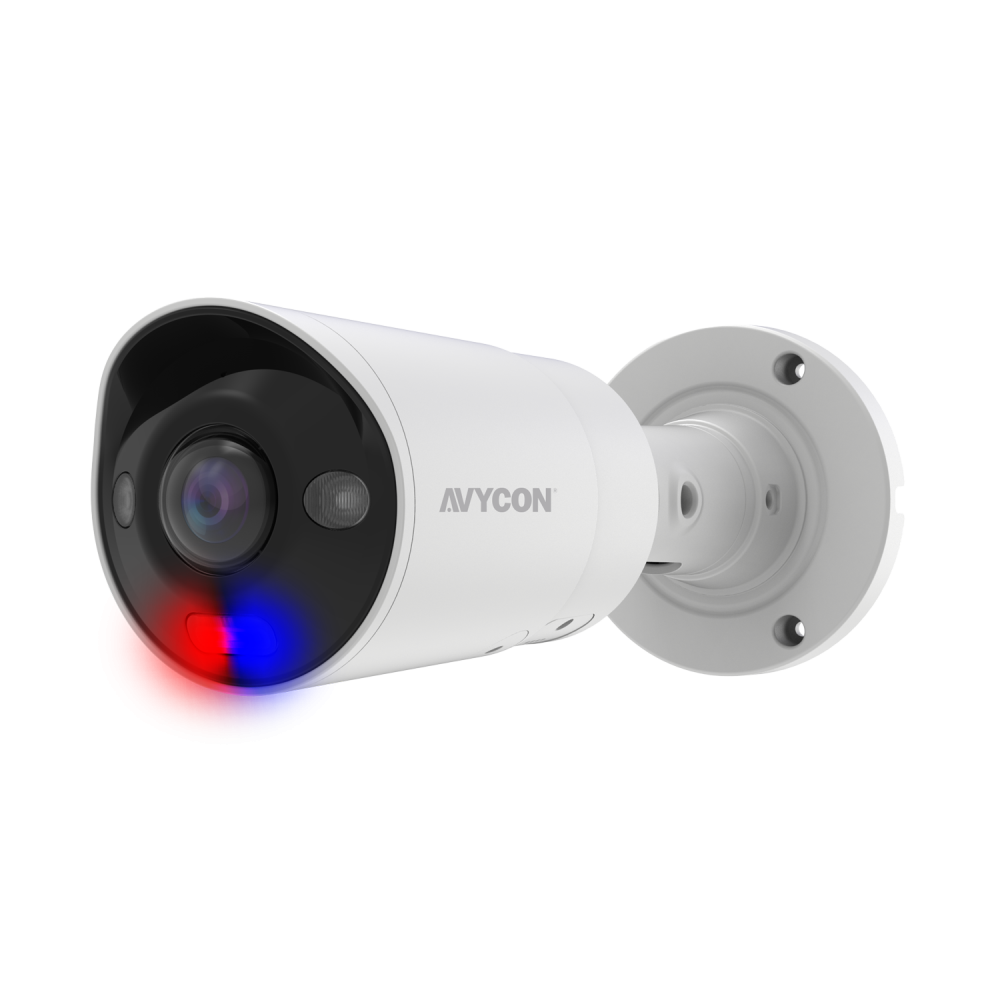

· White Light LED and blue/red strobe light for visibility and deterrence
· Built-in microphone and speaker for two-way audio communication
Technical Context
The AVC-NPB51F180 is built for locations that require broad panoramic monitoring from a bullet-style camera housing. Its image processing features help improve visibility in difficult lighting conditions, while intelligent analytics support more accurate event detection and active security response.
Installation Notes
The camera supports DC12V and PoE power for flexible installation. Its IP67-rated housing is suitable for outdoor environments, and remote monitoring is available through the AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Camera | |
| Imaging Device | 1/2.7" Progressive CMOS |
| Resolution | Main Stream: 5MP(2880x1620),4MP(2592x1520),3MP(2304x1296),1080P(1920x1080),960P(1280x960),720P(1280x720) Sub Stream: 720P(1280x720),VGA(640x480) Mobile Stream: VGA(640x480) |
| Max. Framerate | Main Stream: Max. 30fps/25fps (60Hz/50Hz) Sub Stream: Max. 30fps/25fps (60Hz/50Hz) Mobile Stream: Max. 30fps/25fps (60Hz/50Hz) |
| Min. Illumination | Color : 0.007lux @ F1.0(AGC on), B/W 0 Lux (IR LED on) |
| Video Out | N/A |
| Lens | |
| Focal Length (Zoom Ratio) | 2.0mm Fixed |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | Horizontal: 180°, Vertical: 90°, Diagonal: 180° |
| Min. Object Distance | 0.66ft (0.2M) |
| Focus Control | N/A |
| Lens Type | Fixed(M12) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | N/A |
| Operational | |
| Camera Title | Title displayed up to 32 characters |
| Day & Night | AUTO (ICR) / Full Color Mode |
| Backlight Compensation | BLC, HLC, WDR |
| Digital Noise Reduction | 3D DNR |
| Digital Image Stabilization | N/A |
| Motion Detection | Rectangle Grid (8 Levels of Sensitivity) |
| Privacy Masking | 4 Rectangle Zones |
| Gain Control | AUTO |
| White Balance | AUTO / MANUAL |
| LDC | N/A |
| Eletronic Shutter Speed | AUTO / Manual (1/5 ~ 1/20000s) |
| Video Rotation | Flip / Mirror |
| Analytics | Pedestrian&Vehicle Detection(PD&VD), Intrusion Detection(ID), Line Crossing Detection(TD), Heat Map(HM), Rare Sound detection(RSD), Region entrance detection, Region exiting detection, Cross counting, Queue length, Crowd density |
| Alarm I/O | N/A |
| Alarm Triggers | Motion, Sound Detection |
| Alarm Events | Warning Light, Siren, Notification vis E-mail, Image file upload vis FTP, Video file upload via FTP, Image file upload to Cloud (Drobox) Video file upload to Cloud (Dropbox), Micro SD recording at event triggered, Event Push via HTTP / UDP |
| Audio In | Built-in MIC |
| Audio Out | Built-in Speaker |
| IR Viewable Length | Max. 91ft (25M) / White Light LED Max.49ft(15M) |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression | H.265+/H.265 Main Profile, H.264+/H.264 High Profile, MJPEG(Sub Stream Only) |
| Audio Compression | G.711a / G.711u |
| Bitrate Control | CBR or VBR (256Kbps ~ 8Mbps) |
| Streaming | Unicast/Multicast |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, RTMP (v8.2.3 firmware and above) |
| Security | Login Authentication, IP Address Filtering, User access log |
| Application Programming Interface | ONVIF Profile S/G/T/M, REST API |
| General | |
| Webpage Language | English, Korean |
| Edge Storage | Micro SD/SDHC/SDXC Slot (up to 512GB) with video and still image capture function |
| Memory | N/A |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -31° ~ 140°F (-35°~+60°C) / less than 90% RH |
| Storage Temperature / Humidity | |
| Certification | IP67 |
| Input Voltage | PoE(IEEE802.3at) /12VDC |
| Power Consumption | DC12V:7.10W/PoE:9.03W |
| Mechanical | |
| Color / Material | White / Metal |
| Product Dimensions / Weight | Ø5.96 x 2.92in (Ø151.3x74.1mm) / 0.855lbs (388g) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | |
| Observe (63PPM/ 19PPF) | |
| Recognize (125PPM/ 38PPF) | |
| Identify (250PPM/ 76PPF) | |
