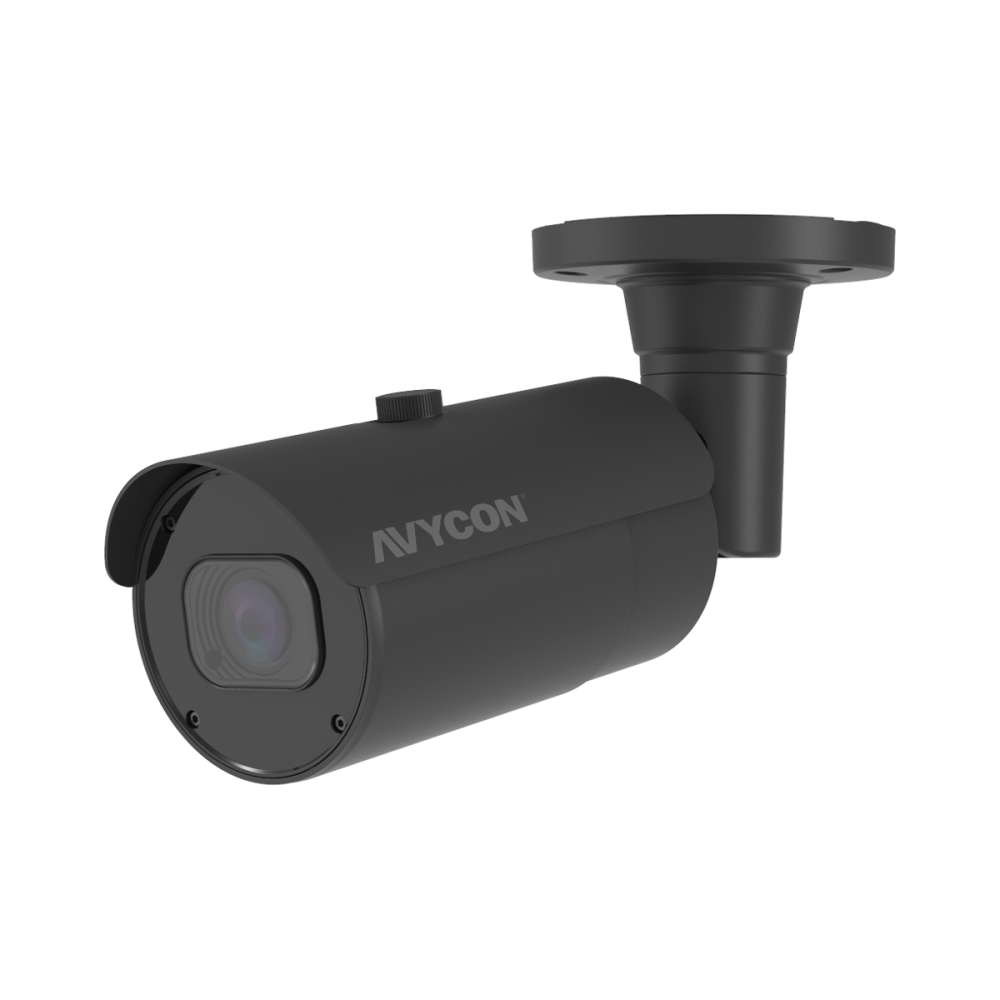

AVYCON - AVC-NSB81M-B - 8MP H.265 MOTORIZED LENS BULLET NETWORK CAMERA

Product Overview

The AVYCON AVC-NSB81M-B is an 8MP H.265 motorized lens bullet network camera designed for high-resolution indoor or outdoor surveillance. It combines 3840x2160 video at 30fps, a motorized 2.7mm to 13.5mm lens, Day & Night AUTO ICR functionality, intelligent analytics, local microSD storage, and DC12V/PoE power support.

Key Configuration

Model: AVC-NSB81M-B | Product Type: 8MP Motorized Lens Bullet Network Camera | Resolution: 3840x2160 @ 30fps | Lens: Motorized 2.7mm - 13.5mm F1.8 - F3.3 | Compression: H.265+, H.265, H.264+, H.264, MJPEG | Storage: microSD up to 512GB | Protection: IP67

Key Features

 · 8MP resolution delivers detailed 3840x2160 surveillance video

 · Supports 30fps recording for smooth live viewing and playback

 · H.265+, H.265, H.264+, H.264, and MJPEG encoding help optimize bandwidth and storage usage

 · Motorized 2.7mm to 13.5mm lens allows flexible remote adjustment of the viewing angle

 · Day & Night AUTO ICR supports clear monitoring across changing lighting conditions

 · 3D DNR, WDR, HLC, BLC, and ROI encoding improve image quality in challenging scenes

 · Intelligent Analytics support smarter event detection and security monitoring

 · Built-in microSD card slot supports video and still image capture up to 512GB

 · DC12V and PoE power options provide flexible installation choices

Technical Context

The AVC-NSB81M-B uses high-efficiency H.265 and H.264 compression options to maintain clear 8MP image quality while helping reduce network bandwidth and storage requirements. Its motorized lens gives installers the ability to fine-tune the surveillance range without manually repositioning the camera.

Image enhancement functions such as WDR, HLC, BLC, 3D DNR, and ROI encoding help preserve useful detail in scenes with mixed lighting, backlight, or high contrast.

Installation Notes

The IP67-rated bullet housing supports outdoor installation in rain and dusty environments. DC12V and PoE power support simplify deployment, while AVYCON ONE mobile app and AVYCON CMSONE CMS provide remote viewing and system management.
