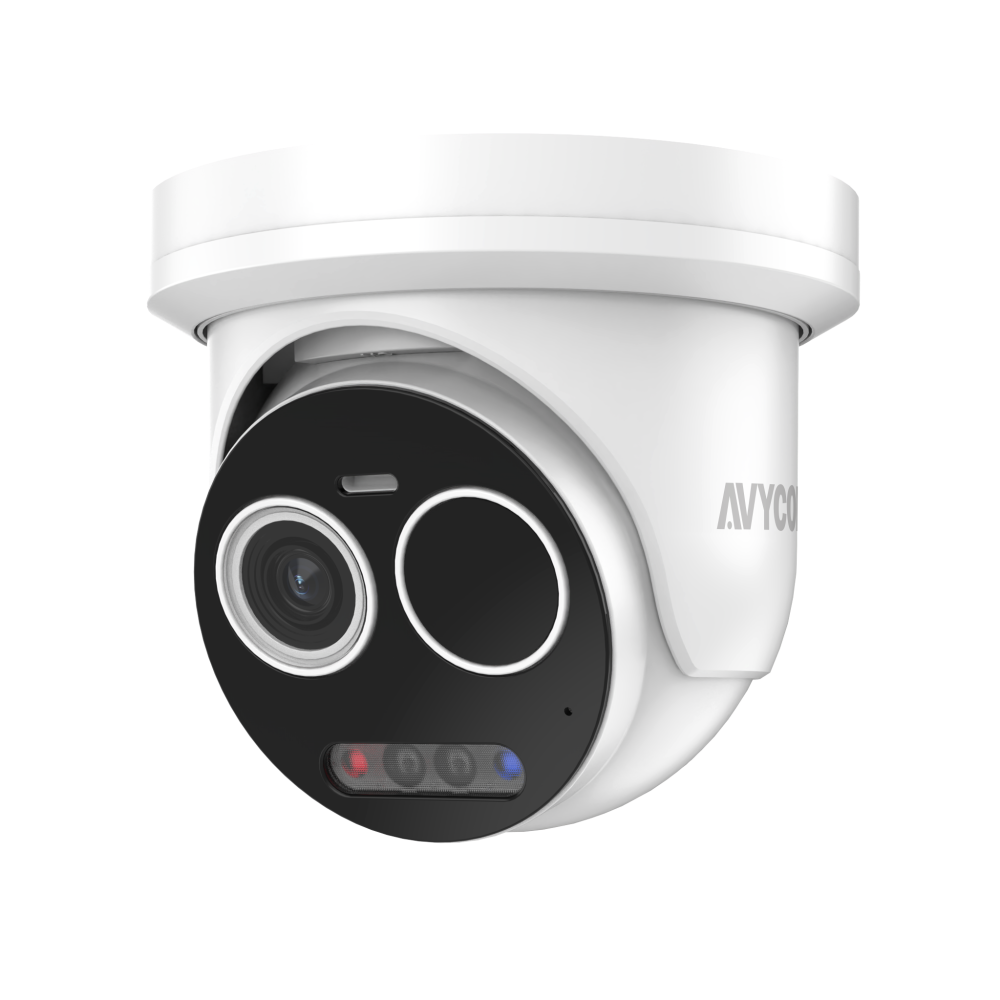

AVYCON - AVC-NTE51M32 - 5MP THERMAL TURRET NETWORK CAMERA
Product Overview
The AVYCON AVC-NTE51M32 is a 5MP thermal turret network camera designed for advanced surveillance, visual verification, and intelligent event detection. It combines a 5MP optical sensor, thermal imaging, fixed dual-lens configuration, active deterrence LEDs, built-in audio, local storage, and IP67 outdoor protection.
Key Configuration
Model: AVC-NTE51M32 | Product Type: 5MP Thermal Turret Network Camera | Resolution: 2592 x 1944 | Optical Lens: 3.6mm fixed lens, F1.6 | Thermal Lens: 3.2mm fixed lens, F1.1 | Storage: microSD up to 512GB | Power: DC12V / PoE | Protection: IP67
Key Features
· 5MP video resolution up to 2592 x 1944
· H.265+, H.265, H.264+, H.264, and MJPEG encoding support
· Dual optical and thermal fixed-lens configuration
· 3D DNR, WDR, HLC, BLC, and ROI encoding for improved image performance
· Intelligent analytics for advanced surveillance applications
· White Light plus Red and Blue LED deterrence support
· Built-in microphone and speaker for audio communication
· Built-in microSD card slot for video and still image capture up to 512GB
Technical Context
The AVC-NTE51M32 combines optical video and thermal detection in one turret camera platform, helping operators identify activity in challenging visibility conditions. Its intelligent analytics, ROI encoding, WDR, HLC, BLC, and 3D DNR support clearer event monitoring while helping optimize video quality and bandwidth usage.
Installation Notes
The camera supports both DC12V and PoE power for flexible installation. Its IP67-rated housing is designed for outdoor environments, while remote monitoring is supported through the AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Thermal Module | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max Resolution | 256×192 |
| Pixel Interval | 12μm |
| Response Waveband | 8-14μm |
| NETD (Noise Equivalent Temperature Difference) | ≤40mk@25°C F＃1.0, 25Hz |
| Lens (Focal Length) | 3.2mm |
| IFOV | 3.75 mrad |
| Field of View | 56° x 42° |
| Min. Focusing Distance | 0.98ft (0.3m) |
| Aperture | F 1.1 |
| DRI Distance Human | Detection: 486ft(148m), Recognition: 118ft(36m), Identification: 69ft(21m) |
| DRI Distance Vehicle | Detection: 1427ft(435m), Recognition: 358ft(109m), Identification: 177ft(54m) |
| VCA Range for Humans | 79ft(24m) |
| VCA Range for Vehicles | 263ft(80m) |
| Heat Detection Distance | 82ft(25m) |
| Optical Module | |
| Max. Image Resolution | 2592 x 1944 |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @(F1.6, AGC ON), B/W: 0 @IR ON |
| Shutter Speed | 1/5 s to 1/20,000s |
| Lens (Focal Length) | 3.6mm |
| Field of View | Horizontal: 81°, Vertical: 57°, Diagonal: 108° |
| WDR | 120 dB |
| Day & Night | IR cut filter with auto switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Smart Function | |
| Intelligent Analytics | Optical: Loitering, Region Entrance, Region Exiting, Tripwire, Human & Vehicle, Stationary Object Detection, Tripwire Count, Crowd Density, Queue Length, Heat MAP, Rare Sound, Face Detection, Thermal: Loitering, Region Entrance, Region Exiting, Tripwire, Fire detection, Temperature exception alarm, Human & Vehicle |
| Temperature Measurement | 3 temperature measurement rule types (points, areas, and line), 20 rules in total |
| Temperature Range | -4 °F to + 1022°F (-20 °C to + 550 °C) |
| Temperature Accuracy | ± 37.4°F (3°C) / 3% |
| Fire Detection | Dynamic fire point detection |
| Infrared | |
| IR Distance | IR : Up to 98ft (30m) / Warm light: 49ft (15m) |
| Network | |
| Main Stream | Optical: 50Hz@25fps; 5MP(2592x1944),4MP(2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280x960),720P(1280x720) 60Hz@30fps; 5MP(2592x1944),4MP(2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280x960),720P(1280x720) Thermal: 50Hz/60Hz@25fps; 1280 × 720, 640 x 480 |
| Sub-stream | Optical: 50Hz@25fps; 720P(1280x720),VGA(640x480),QVGA(320x240) 60Hz@30fps; 720P(1280x720),VGA(640x480),QVGA(320x240) Thermal: 50Hz/60Hz@25fps; 640 x 480, 320x240 |
| Mobile Stream | Optical: 50Hz@25fps; VGA(640x480), QVGA(320x240), 60Hz@30fps; VGA(640x480),QVGA(320x240) Thermal: 50Hz/60Hz@25fps; VGA(640x480), QVGA(320x240) |
| Video Compression | H.265/H.264/MJPEG/H.265+/H.264+ |
| Audio Compression | G.711u/G.711a |
| Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| User/Host Level | 6 users, 2 levels: Administrator, User |
| Security Measures | User authentication (ID and PW), HTTPS encryption, IP address filtering |
| Integration | |
| Alarm Input | 1-ch input |
| Alarm Output | 1-ch output |
| Alarm Action | SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/Red & Blue flashing light |
| Audio Input | 1-ch |
| Audio Output | 1-ch output/ 1 Built-in speaker |
| Reset | Yes |
| Communication Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| SD Memory Card | Built-in micro SD card slot (up to 512 GB) |
| Analog Video Output(BNC) | NA |
| Web Browser | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| General | |
| Menu language | English, Russian, German, Italian, French, Portuguese, Spanish, Turkish, Japanese |
| Power | 12VDC ± 20%, PoE (802.3af) |
| Power Consumption | 12VDC: 7.18W/PoE: 9.04W |
| Working Temperature/Humidity | Temperature: -31 °F to 140 °F (-35 °C to 60 °C) , Humidity: 90% or less |
| Protection level | IP67 |
| Dimensions | 5.31 x 4.50in (134.9 x 114.4mm) |
| Weight | Approx. 1.80lb (0.82kg) |
| Environment | RoHS2.0 |
