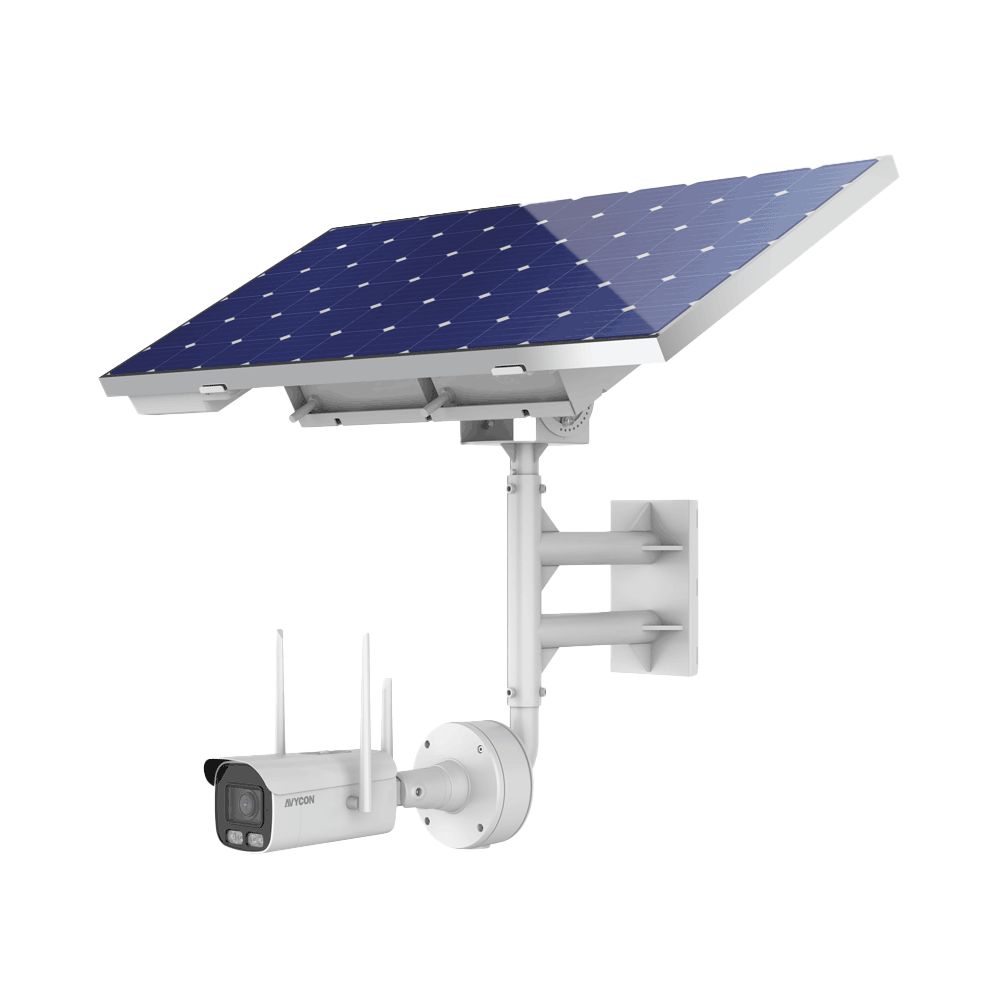

AVYCON - AVC-SNDB41M-4G - 4MP H.265 MOTORIZED BULLET 4G / Wi-Fi SOLAR POWERED CAMERA KIT
Product Overview
The AVYCON AVC-SNDB41M-4G is a 4MP H.265 motorized bullet 4G / Wi-Fi solar powered camera kit designed for standalone outdoor surveillance. It combines a 2.8-12mm motorized lens, full-color active deterrence, intelligent analytics, solar power, battery operation, and 4G communication in one IP67-rated camera system.
Key Configuration
Model: AVC-SNDB41M-4G | Product Type: 4MP H.265 Motorized Bullet 4G / Wi-Fi Solar Powered Camera Kit | Resolution: 4MP, 2688 x 1520 | Lens: 2.8-12mm motorized lens, F1.2 | Storage: microSD card up to 512GB | Connectivity: 4G LTE-TDD, LTE-FDD, TD-SCDMA | Protection: IP67
Key Features
· 4MP video resolution up to 2688 x 1520 for detailed surveillance coverage
· Supports H.265, H.264, H.265+, H.264+, MJPEG, and ROI encoding
· 2.8-12mm motorized F1.2 lens allows flexible field-of-view adjustment
· Full-color active deterrence camera with white light LED and blue/red strobe light
· 3D DNR, WDR, HLC, and BLC improve image quality in challenging lighting conditions
· Built-in microphone and speaker support audio monitoring and active response
· Standalone solar panel and battery design supports remote deployments without fixed power
Technical Context
The AVC-SNDB41M-4G is built for locations where wired power or fixed network infrastructure may not be available. Its solar-powered design, battery support, 4G communication, onboard storage, and intelligent analytics allow the camera to operate as a self-contained surveillance solution for remote or temporary sites.
Installation Notes
The camera kit supports standalone installation with a solar panel and battery. Its IP67 ingress protection makes it suitable for outdoor environments, while remote monitoring is supported through the AVYCON ONE mobile app and AVYCON CMSONE CMS software.
| Video | |
| Imaging Device | 1/1.8" |
| Effective Pixels | 4MP 2688(H)×1520(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color : 0.0005lux @ F1.0(AGC on); B/W 0 lux @ IR ON |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8–12 mm |
| Max. Aperture Ratio | F No. 1.2 |
| Angular Field of View | Horizontal:110-40°, Vertical:57-22°, Diagonal:137-46° |
| Min. Object Distance | W:5.74 ft (1.75 m), T:17.09 ft (5.21 m) |
| Lens Type | Ø16.7 |
| Operational | |
| IR LED | 4 |
| WarmLight | 4 |
| IR Viewable Length | Up to 98.43 ft (30 m) |
| WarmLight Viewable Length | Up to 82.02 ft (25 m) |
| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode/Day&Night Mode/Smart Illumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 512GB |
| Alarm | 1 input, 1 output |
| Audio | 1 input (RCA), 1 output (RCA), Built-in microphone&Speaker |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Smart Feature | Pedestrian&Vehicle, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting |
| Network | |
| Ethernet | RJ45 (10/100BASE-T) |
| Video Compression Format | H.265/H.264/H.265+/H.264+/MJPEG |
| Resolution | Main Stream : 4MP(2688x1520),3MP(2304x1296),1080P(1920x1080),720P(1280x720) Sub Stream : 720P(1280x720),VGA(640x480),QVGA(320x240) Mobile Stream : VGA(640x480),QVGA(320x240) |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | IP address filter; complicated password; Authenticated username and password |
| Application Programming Interface | ONVIF (Profile S/G/T) |
| Web Viewer | IE10/11 Safari : V12.1 above Firefox : V.52 above Google chrome : V.57 above Edge : V.79 above |
| Mobile Communication | |
| SIM Card Type | Micro SIM |
| Frequency | LTE-TDD : Band 38/39/40/41 LTE-FDD : Band 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 WCDMA : Band 1/2/4/5/6/8/19 |
| GSM | GSM850/EGSM900/DCS1800/PCS1900 |
| Interfaces | |
| Network | 1 RJ45 10 M / 100 M self-adaptive Ethernet port |
| Wi-Fi | IEEE802.11b/g/n; 2.4 G |
| Environmental | |
| Operating Conditions | -4 °F to 140 °F (-20 °C to 60 °C). Humidity 95% or less (non-condensing) |
| Ingress Protection | IP67 |
| Electrical | |
| Power | 4-pin waterproof connector 3.5DC connector 60 W (deviation: ± 2 W) Solar panels max.8.7W |
| Mechanical | |
| Material | Metal |
| Specifications - Battery | |
| Battery Type | Lithium |
| Capacity | 8.4 Ah × 4 packs |
| Battery Voltage | 10.8V |
| Max. Output Voltage | 12.6V |
| Operating Temperature | Charging : -4 °F to 113 °F (-20 °C to 45 °C) Discharging : -4 °F to 140 °F (-20 °C to 60 °C) |
| Battery Life | More than 500 cycles |
| Battery Weight | 1.49 lb (678 g) × 4 packs |
| Specifications - Solar Panel | |
| Monocrystalline silicon | photoelectric efficiency > 24% |
| Standard Output Power (@STC) | 60W ± 5% |
| Open Circuit Voltage (@STC) | 17V ± 5% |
| Standard Operating Voltage and Current (@STC) | 14.8V/4.1A or 15V/4A |
| Short Circuit Current (@STC) | < 4.3A |
