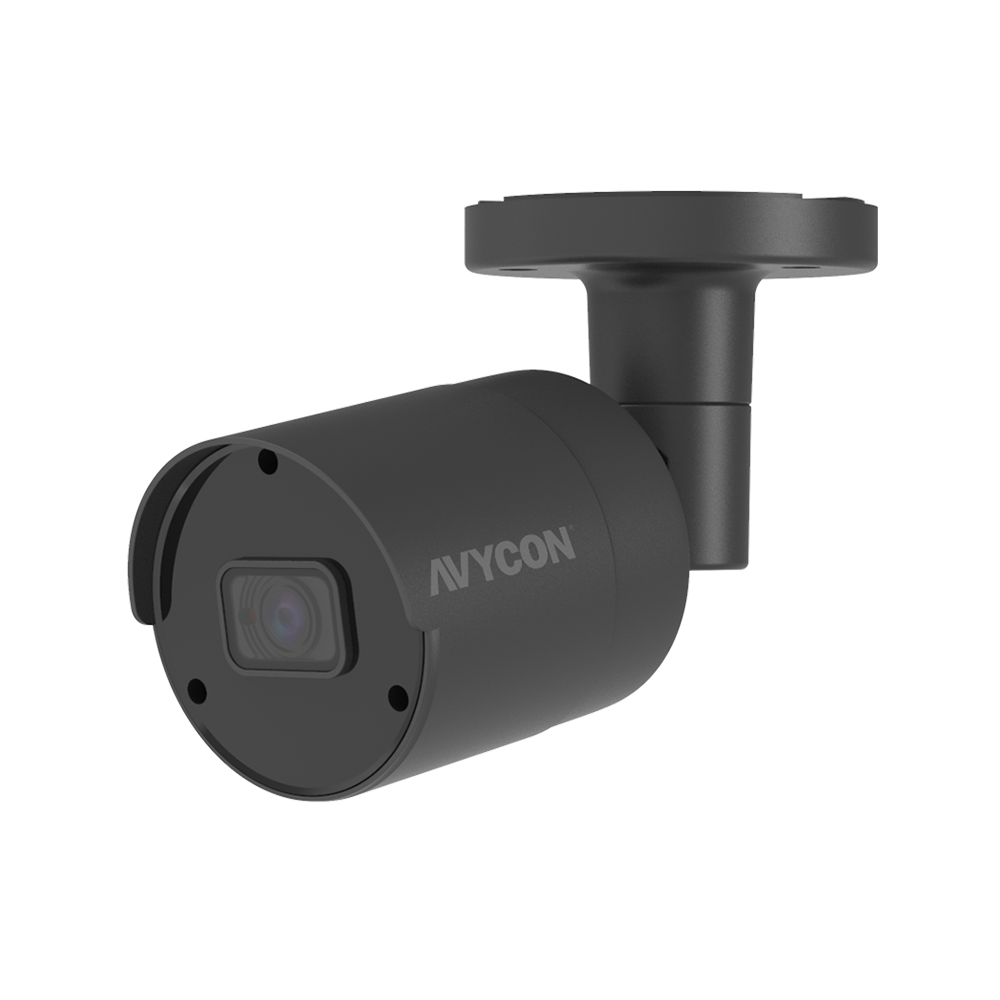

AVYCON - AVC-TB21F28-B - 2 Megapixel HD-TVI/CVI/AHD/Analog Bullet Camera with 2.8mm Lens, Black

Product Overview

The AVYCON AVC-PRHN41FT is a 2MP bullet camera designed for reliable 1080p HD surveillance in indoor or outdoor installations. It supports HD-TVI, CVI, AHD, and CVBS analog video formats, making it suitable for flexible integration with different recorder systems.

Key Configuration

Model: AVC-PRHN41FT | Product Type: 2MP Bullet Camera | Resolution: 1920 x 1080 | Lens: Fixed 2.8mm | Video Format: HD-TVI / CVI / AHD / CVBS Analog | IR Range: Up to 66ft | Protection: IP67 | Power: DC12V

Key Features

 · 2MP resolution provides clear 1920 x 1080 surveillance video

 · Supports HD-TVI, CVI, AHD, and CVBS analog video formats

 · Fixed 2.8mm lens offers wide-area coverage for general monitoring

 · True Day & Night ICR helps maintain image clarity in changing light conditions

 · Smart IR illumination supports night visibility up to 66ft

 · DIP switch format selection simplifies installation and system matching

 · 2D DNR and 3D DNR reduce image noise in low-light scenes

 · IP67 weatherproof protection supports outdoor deployment

Technical Context

The AVC-PRHN41FT is built for analog HD surveillance systems that need multi-format compatibility. Its support for HD-TVI, CVI, AHD, and CVBS allows the camera to work with a wide range of DVR platforms while maintaining Full HD image quality.

Installation Notes

The fixed 2.8mm lens is suitable for broad scene coverage, while the DIP switch allows installers to quickly match the camera output format to the connected recorder. Its IP67-rated housing and DC12V power input make it practical for standard outdoor security installations.
