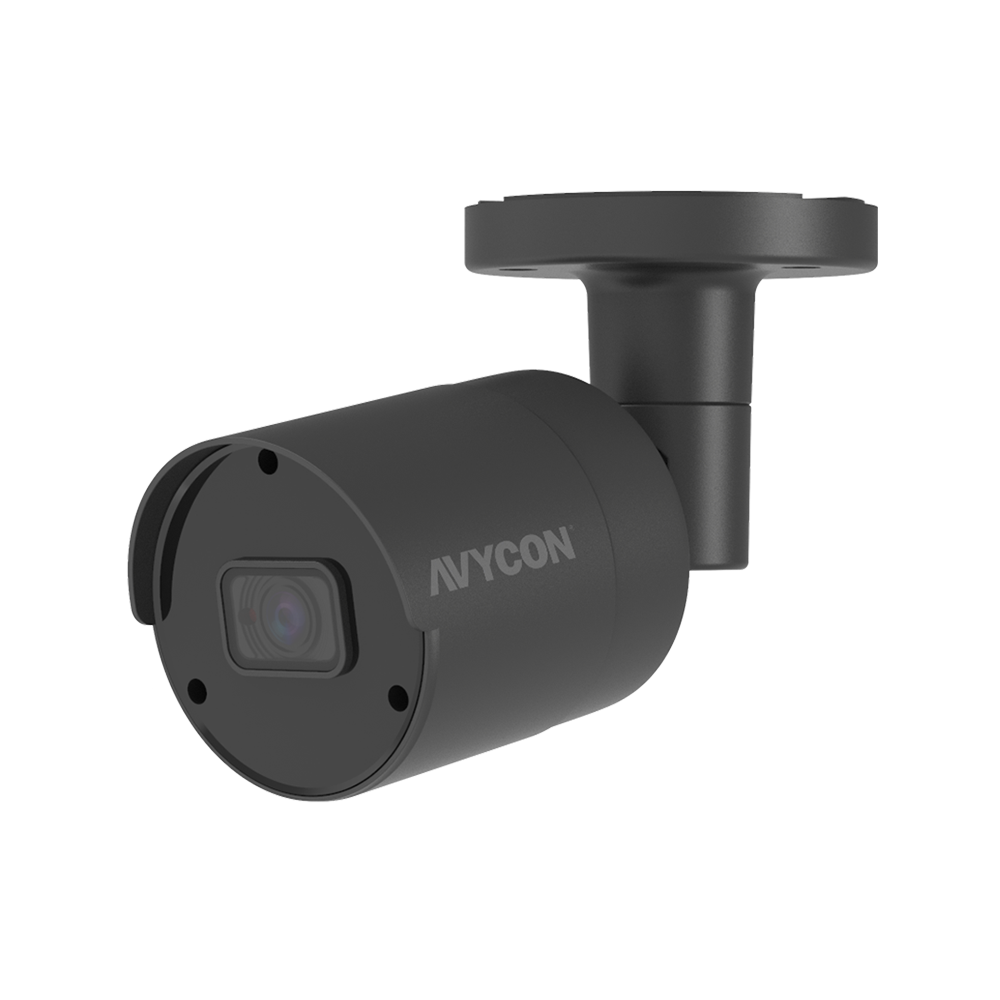

AVYCON - AVC-TB51F28-B - 5 Megapixel HD-TVI/CVI/AHD/Analog Bullet Camera with 2.8mm Lens, Black

Product Overview

The Avycon 1080P 5MP camera is part of AVYCON's Second Generation HD-TVI Series, designed for reliable high-definition analog surveillance. It combines 5MP image quality, multi-format video output, Smart IR night vision, and an IP67-rated outdoor housing for flexible security installations.

Key Configuration

Product Type: 5MP HD Analog Camera | Resolution: 5MP / 2592 x 1944 | Lens: Fixed 2.8mm | Video Format: HD-TVI / CVI / AHD / CVBS Analog | IR Range: Up to 66ft | Protection: IP67 | Power: DC12V

Key Features

 · 5MP resolution provides clear 2592 x 1944 surveillance video

 · Supports HD-TVI, CVI, AHD, and CVBS analog video formats

 · Fixed 2.8mm lens offers wide-area scene coverage

 · True Day & Night ICR supports reliable imaging in changing light conditions

 · Smart IR illumination provides night visibility up to 66ft

 · DIP switch design allows quick video format selection

 · 2D DNR, 3D DNR, AGC, DWDR, and BLC improve image quality

 · IP67 ingress protection supports outdoor installation

Technical Context

This Second Generation HD-TVI camera is designed for systems that require flexible analog HD compatibility. Its DIP switch format selection allows installers to match the camera to HD-TVI, CVI, AHD, or CVBS recorders, while the updated chipset and board design improve power efficiency.

Installation Notes

The fixed 2.8mm lens is suitable for broad coverage areas, and the redesigned front face helps improve night-view accuracy. Its DC12V power input and IP67-rated enclosure make it practical for standard outdoor surveillance deployments.
