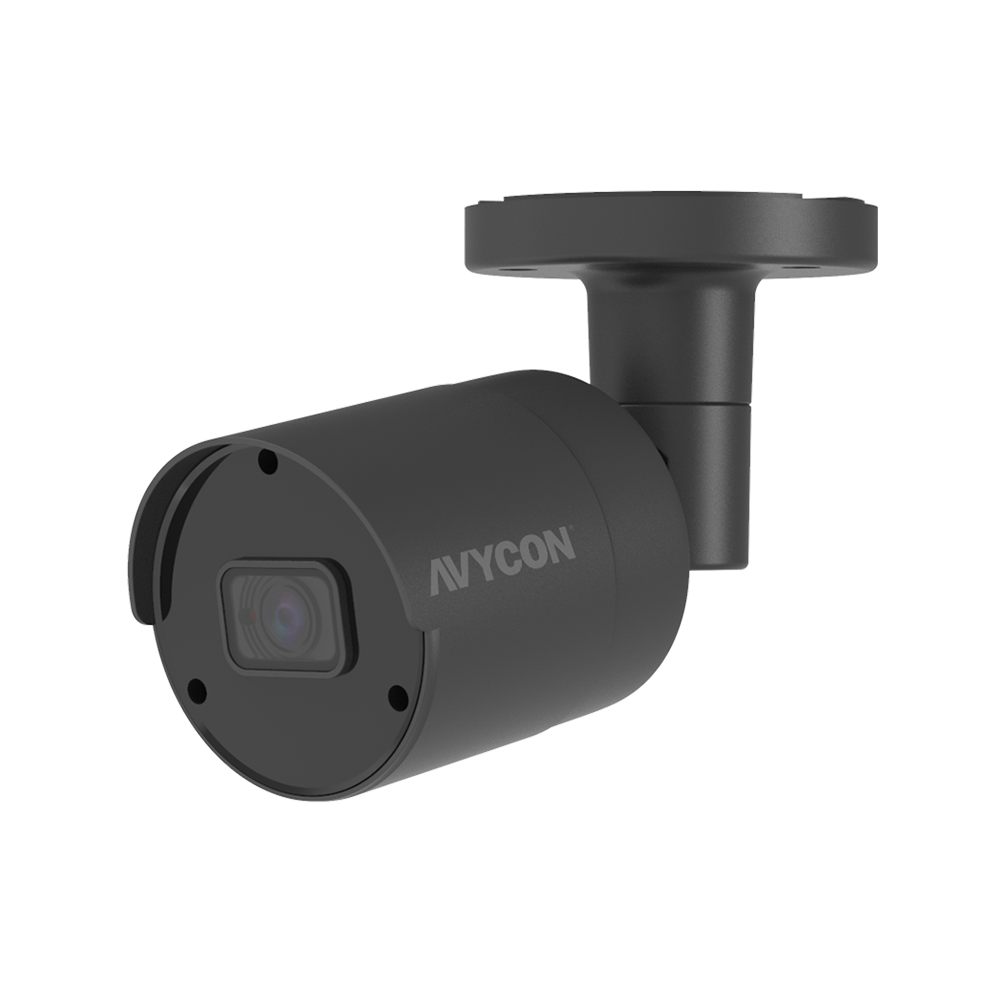

AVYCON - AVC-TB81F28-B - 8 Megapixel HD-TVI/CVI/AHD/Analog Bullet Camera with 2.8mm Lens, Black

Product Overview

The Avycon 8MP/4K camera is part of AVYCON's Second Generation HD-TVI Series, designed for high-resolution analog surveillance with flexible system compatibility. It combines 4K image quality, multi-format video output, Smart IR night vision, and an IP67-rated outdoor housing for dependable security monitoring.

Key Configuration

Product Type: 8MP / 4K HD Analog Camera | Resolution: 3840 x 2160 | Lens: Fixed 2.8mm | Video Format: HD-TVI / CVI / AHD / CVBS Analog | IR Range: Up to 66ft | Protection: IP67 | Power: DC12V

Key Features

 · 8MP / 4K resolution delivers crystal-clear 3840 x 2160 surveillance video

 · Supports HD-TVI, CVI, AHD, and CVBS analog video formats

 · Fixed 2.8mm lens provides wide-area monitoring coverage

 · True Day & Night ICR supports reliable visibility in changing light conditions

 · Smart IR illumination provides night visibility up to 66ft

 · DIP switch design allows quick video format selection during installation

 · 2D DNR, 3D DNR, AGC, DWDR, and BLC improve image quality in difficult scenes

 · IP67 outdoor rating protects against dust and water exposure

Technical Context

This Second Generation HD-TVI camera is designed for surveillance systems that need 4K image detail with broad recorder compatibility. Its multi-format output allows it to work with HD-TVI, CVI, AHD, and CVBS analog systems, while the updated chipset and board design help improve power efficiency.

Installation Notes

The fixed 2.8mm lens is suitable for wide viewing areas, and the DIP switch makes it easier to match the camera output to the connected recorder. Its DC12V power input, Smart IR array, redesigned front face, and IP67-rated housing support reliable outdoor day and night installation.
