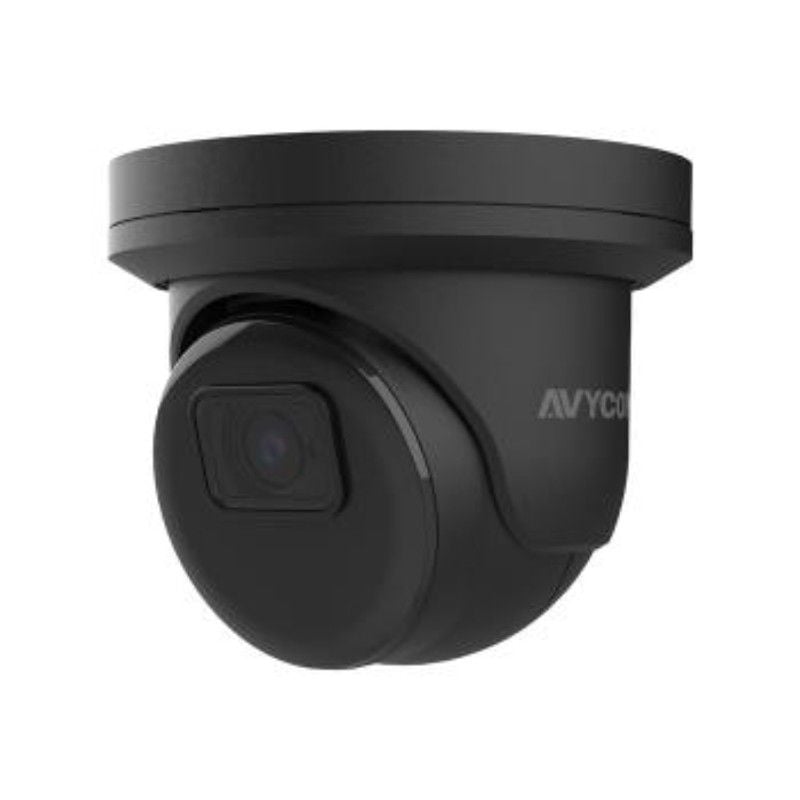

AVYCON - AVC-TE21F36-B - 2 Megapixel HD-TVI IR Outdoor Turret Camera with 3.6mm Lens

Product Overview

The Avycon AVC-TE21F36-G is a 1080p outdoor dome camera with multi-format HD-TVI, HD-CVI, HD-AHD, and analog CVBS video support. It features a fixed 3.6mm lens, Smart IR night illumination, true day/night operation, and an IP67-rated gray outdoor housing.

Key Configuration

Model: AVC-TE21F36-G | Product Type: Outdoor Dome Camera | Resolution: 2MP / 1080p / 1920 x 1080 | Lens: Fixed 3.6mm | Video Format: HD-TVI / CVI / AHD / CVBS Analog | IR Range: Up to 66ft | Protection: IP67 | Power: DC 12V / 3W

Key Features

 · 2MP 1080p video resolution for clear surveillance footage

 · Fixed 3.6mm lens for general-purpose monitoring coverage

 · Supports HD-TVI, CVI, AHD, and CVBS analog video formats

 · DIP switch design allows easy video format selection

 · True Day / Night operation with Smart IR illumination up to 66ft

 · Digital NR, DWDR, BLC, AGC, and Defog image enhancement support

 · IP67 outdoor-rated housing for rain and dust resistance

 · Low DC 12V power consumption rated at 3W

Technical Context

The AVC-TE21F36-G is designed for hybrid analog HD surveillance systems that may use different signal standards across existing infrastructure. Its DIP switch format control allows installers to quickly match the camera output to compatible DVR platforms without replacing cabling or camera hardware.

Installation Notes

The camera is built for outdoor dome installation with an IP67-rated enclosure and a magnetic ring designed to conceal mounting screws for a cleaner appearance. Smart IR, Defog, DWDR, and noise reduction functions help maintain usable video in night, fog, and mixed-light environments.
