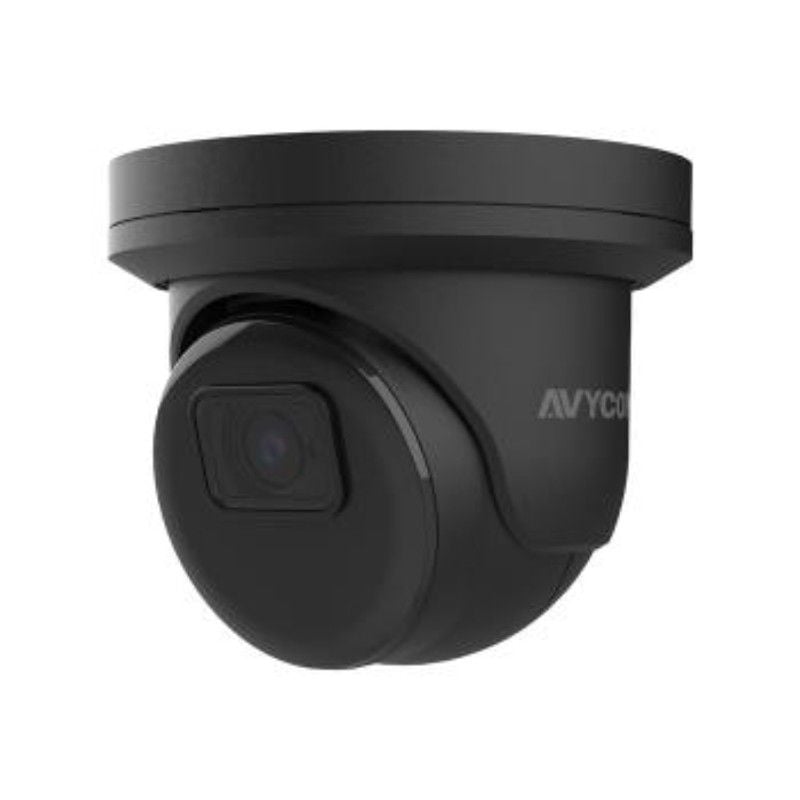

AVYCON - AVC-TE51F28-B - 5 Megapixel HD-TVI IR Outdoor Turret Camera with 3.6mm Lens

Product Overview

The Avycon AVC-TE51F28 is a 5MP outdoor dome camera designed for flexible HD analog surveillance installations. It supports HD-TVI, CVI, AHD, and analog 960H video formats, with a fixed 2.8mm lens, Smart IR night vision, and an IP67-rated white outdoor housing.

Key Configuration

Model: AVC-TE51F28 | Product Type: Outdoor Dome Camera | Resolution: 5MP / 2592 x 1944 | Lens: Fixed 2.8mm | Video Format: HD-TVI / CVI / AHD / Analog 960H | IR Range: Up to 66ft | Protection: IP67 | Power: DC12V

Key Features

 · 5MP resolution delivers detailed 2592 x 1944 surveillance video

 · Supports HD-TVI, CVI, AHD, and analog 960H video formats

 · Fixed 2.8mm lens provides wide-area monitoring coverage

 · Smart IR illumination supports night visibility up to 66ft

 · DWDR helps balance image visibility in challenging lighting

 · CoC, OSD, and BLC functions support easier control and image adjustment

 · IP67 weatherproof housing supports outdoor installation

 · DC12V power input for straightforward deployment

Technical Context

The AVC-TE51F28 is built for systems that need high-resolution analog HD video while maintaining compatibility with multiple recorder formats. Its multi-format output helps installers integrate the camera into existing HD-TVI, CVI, AHD, or analog 960H infrastructures without changing the full surveillance system.

Installation Notes

The fixed 2.8mm lens is suited for broad scene coverage such as entrances, walkways, and general outdoor monitoring areas. The IP67-rated dome housing protects the camera against rain and dust, while Smart IR supports usable nighttime video in low-light environments.
