AVYCON - AVM-CWM-VG-S3 - Compact Wall Mount for Small Active Deterrence
Product Overview

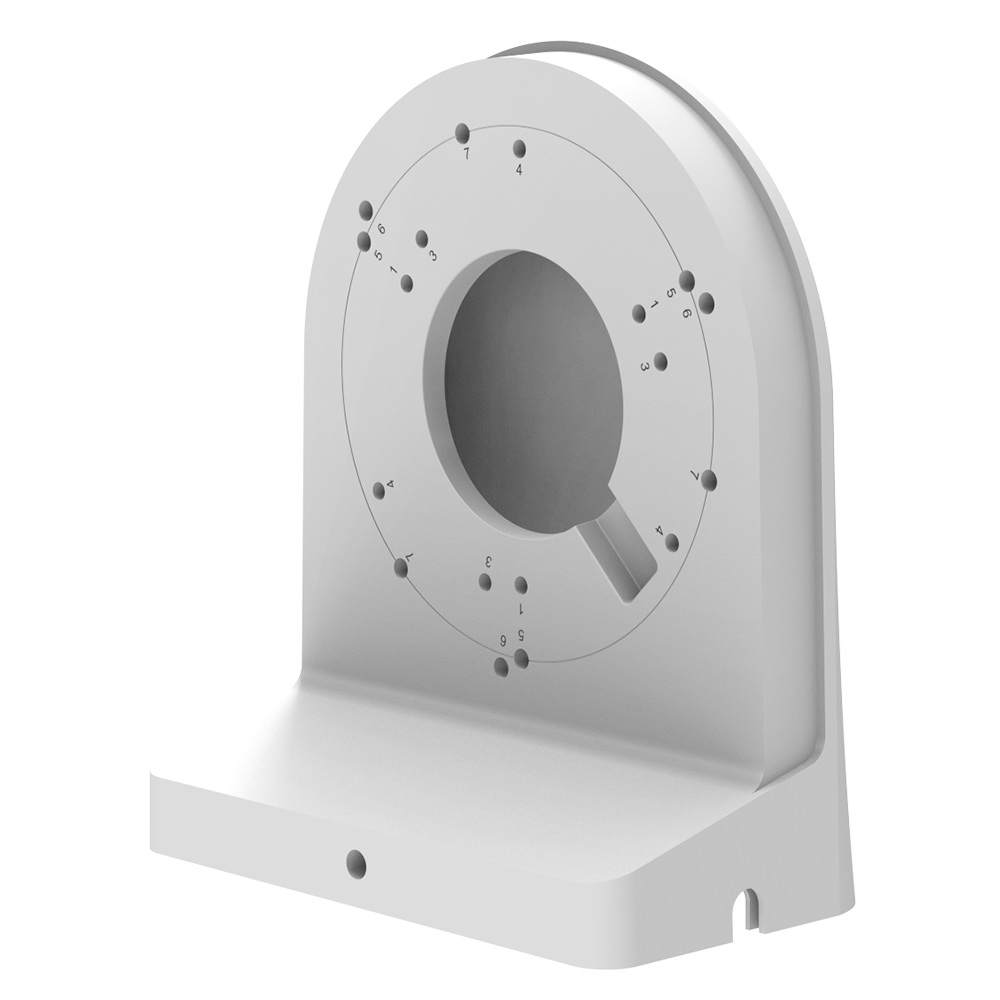

The AVYCON AVM-CWM-VG-S3 is a wall mount designed for secure surveillance camera installation in indoor or outdoor environments. It uses aluminum alloy construction with a white surface spray treatment and provides internal cable management to help keep camera wiring protected and hidden.
Key Configuration
Model: AVM-CWM-VG-S3 | Product Type: Wall Mount | Material: Aluminum Alloy | Color: White | Mounting: Indoor / Outdoor / Wall | Load Bearing: 13.2 lb (6 kg) | Dimensions: Ø6.1 x 5.2 x 2.95 in (Ø155 x 132 x 75 mm) | Compliance: NDAA
Key Features
· Aluminum alloy material with surface spray treatment
· Designed for wall-mounted camera installation
· Camera cables can be managed and hidden inside the mount
· Supports indoor and outdoor mounting applications
· 13.2 lb load-bearing capacity for compatible camera setups
· NDAA compliant design for regulated security projects
Technical Context
The AVM-CWM-VG-S3 provides a dedicated wall-mounting structure for supported surveillance cameras while helping organize and conceal cable runs. Its aluminum alloy body, 6 kg load rating, and wide operating temperature range support reliable use in demanding installation environments.
Installation Notes
This wall mount is intended for indoor or outdoor wall installation. Deployment should follow the listed working temperature range of -40°F to 140°F (-40°C to 60°C), 10% to 90% non-condensing humidity, and the 13.2 lb maximum load-bearing specification.
