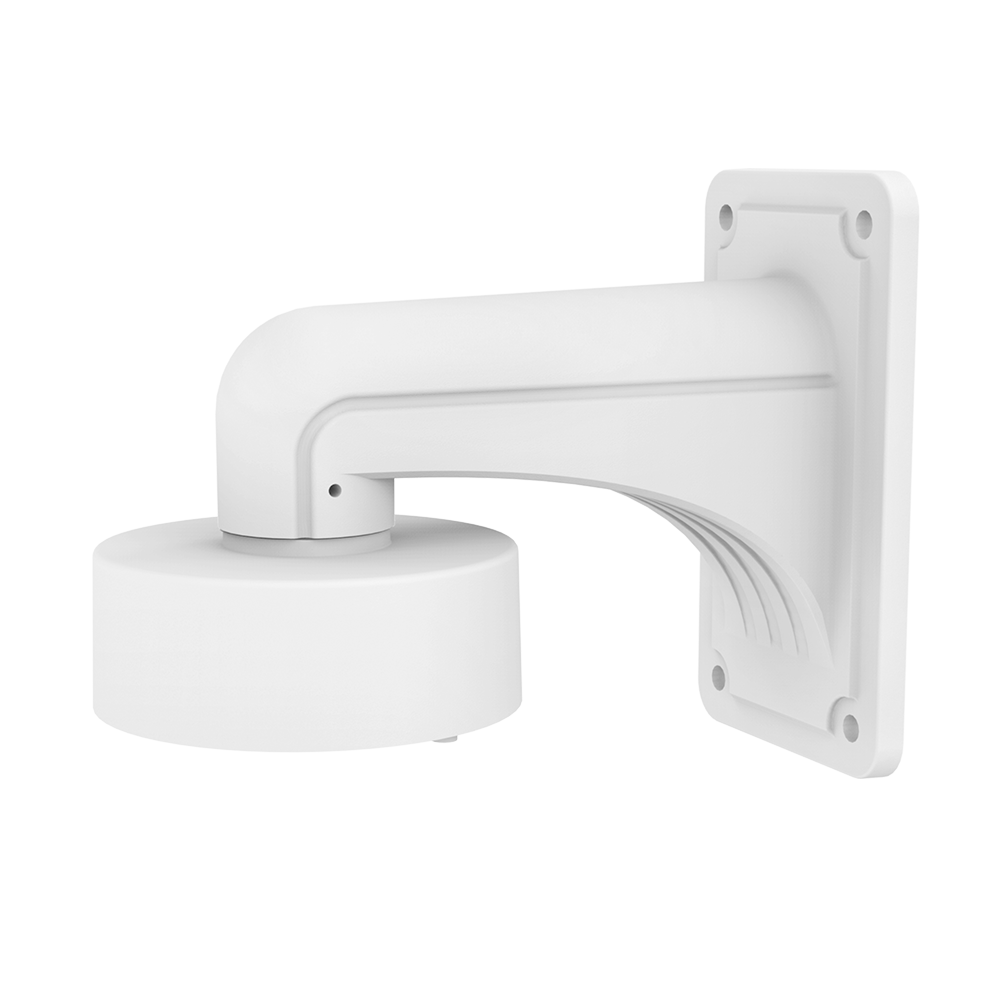

AVYCON - AVM-HWM-VG-L3 - WALL MOUNT WITH JUNCTION BOX
Product Overview
The AVYCON AVM-HWM-VG-L3 is a wall mount with an integrated junction box designed for clean and secure surveillance camera installation. It features aluminum alloy construction with surface spray treatment, hidden cable management, and support for indoor or outdoor wall-mounted applications.
Key Configuration
Model: AVM-HWM-VG-L3 | Product Type: Wall Mount with Junction Box | Material: Aluminum Alloy | Color: White | Mounting Option: Indoor, Outdoor, Wall | Ingress Protection: IP65 | Load Bearing: 13.2 lb (6 kg) | Compliance: NDAA
Key Features
· Aluminum alloy material with surface spray treatment
· Integrated junction box for organized camera installation
· Camera cables can be managed and hidden
· Designed for wall mounting applications
· IP65 ingress protection for indoor and outdoor use
· Supports up to 13.2 lb (6 kg) load bearing
Technical Context
The AVM-HWM-VG-L3 combines a wall bracket and junction box into one mounting accessory, helping simplify camera placement while keeping cable routing protected and concealed. Its IP65-rated aluminum alloy construction supports dependable use in exposed surveillance installations.
Installation Notes
This mount is intended for indoor or outdoor wall installation. The junction box measures Ø5.78 x 2.61 in (Ø146.7 x 66.2 mm), while the bracket measures Ø7.09 x 6.65 x 3.86 in (Ø180 x 169 x 98 mm), with a G1 NPT size for conduit connection.
