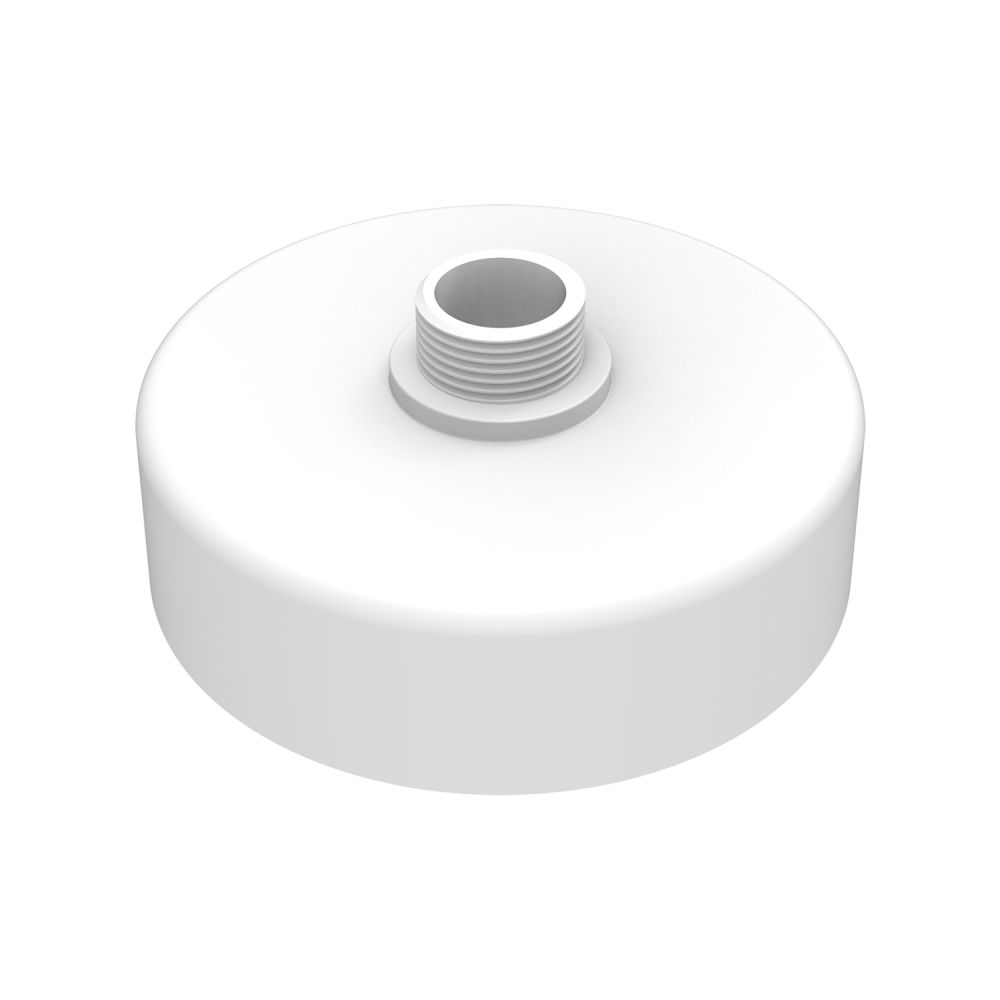

AVYCON - AVM-JB-V-L1-T - Junction Box for Fixed Lens Small Vandal Dome with Threaded Top
Product Overview
The AVYCON AVM-JB-V-L1-T is a junction box designed for clean camera mounting and cable management. It provides a durable aluminum alloy housing that helps collect and hide camera cables while supporting wall or ceiling installation.
Key Configuration
Model: AVM-JB-V-L1-T | Product Type: Junction Box | Material: Aluminum Alloy | Color: White | Mounting: Wall / Ceiling | Ingress Protection: IP54 | Dimensions: 5.78 x 2.61 in (147 x 66.2 mm)
Key Features
· Aluminum alloy construction with surface spray treatment
· Helps collect and hide camera cables for a cleaner installation
· Supports bottom inlet and side inlet cable routing
· Available for wall or ceiling mounting applications
· IP54-rated housing for protected installation environments
· Operates in temperatures from -40°F to 140°F (-40°C to 60°C)
Technical Context
The AVM-JB-V-L1-T provides a dedicated junction point for surveillance camera cabling, helping installers keep wiring concealed and organized. Its aluminum alloy body and surface spray treatment support long-term use in compatible camera mounting applications.
Installation Notes
This junction box supports both wall and ceiling mounting and includes bottom and side inlet options for flexible cable routing. Installation environments should match the IP54 protection rating and the listed operating temperature and humidity range.
