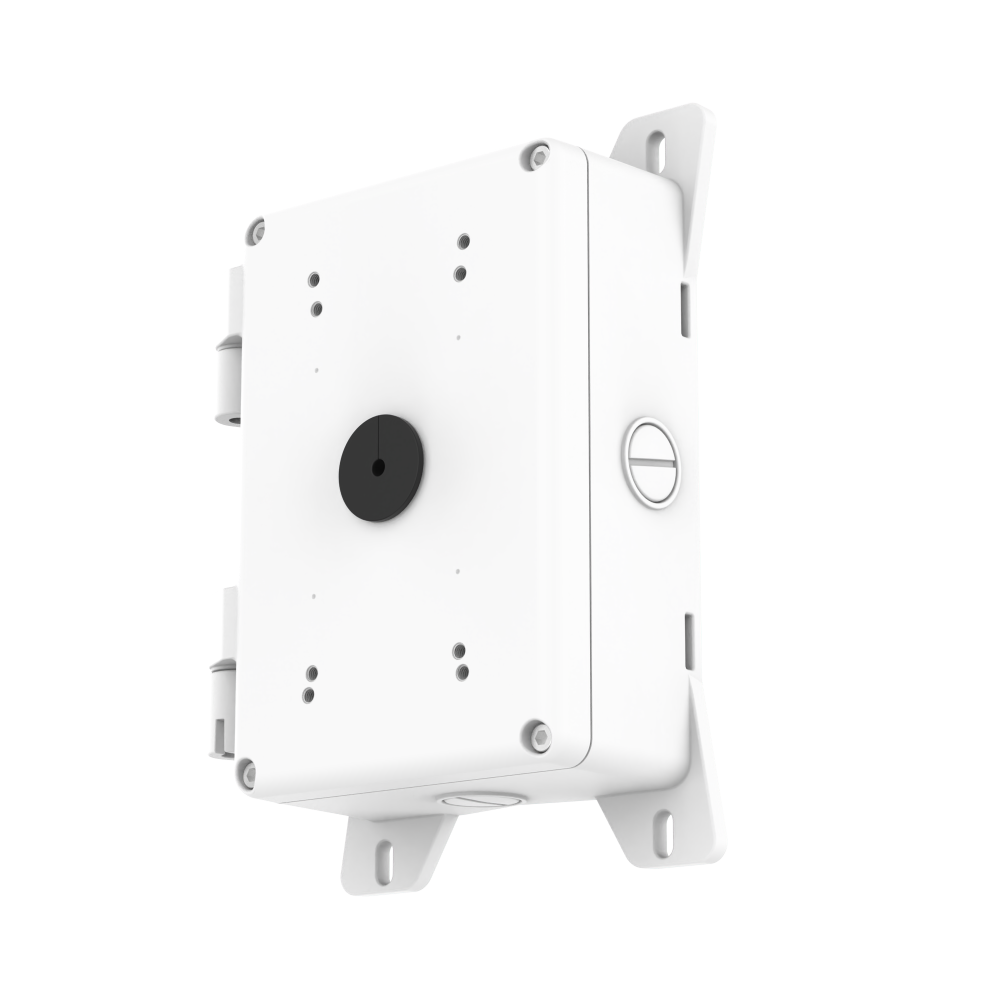

AVYCON - AVM-JB-WMT-A1 - WEATHERPROOF JUNCTION BOX FOR WALL MOUNTING APPLICATIONS
Product Overview
The AVYCON AVM-JB-WMT-A1 is a weatherproof junction box designed for wall mounting applications. It provides a durable aluminum alloy housing for secure outdoor camera installations, with IP66 protection against rain, dust, and harsh environmental conditions.
Key Configuration
Model: AVM-JB-WMT-A1 | Product Type: Weatherproof Junction Box | Mounting Use: Wall Mounting Applications | Material: Aluminum Alloy | Protection: IP66 | Load Bearing: 33lbs / 15kg
Key Features
· Weatherproof junction box for wall-mounted surveillance installations
· Aluminum alloy construction with white finish

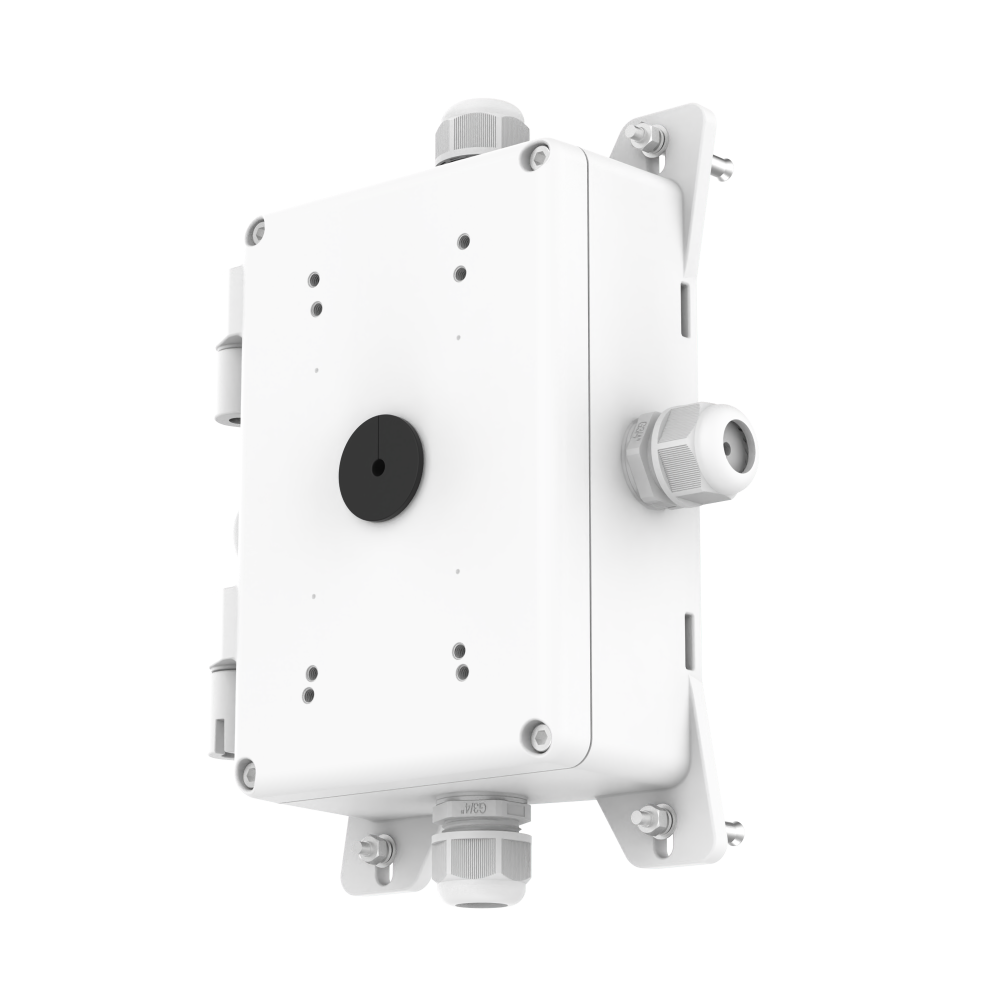

· IP66 ingress protection for outdoor rain and dust resistance
· Supports up to 33lbs / 15kg load bearing capacity
· Operating temperature range from -4°F to 140°F (-20°C to 60°C)
Technical Context
The AVM-JB-WMT-A1 is built to protect camera wiring and mounting connections in outdoor environments. Its IP66-rated enclosure helps shield internal cable connections from dust and water exposure while maintaining a clean wall-mounted installation.
With a 5.8lbs aluminum alloy body and 33lbs load capacity, this junction box is suitable for supporting compatible wall-mounted surveillance hardware in commercial and outdoor security deployments.
Installation Notes
The junction box measures 8.78" x 5.91" x 2.67" (292.8mm x 197.2mm x 89mm) and is intended for wall mounting applications. Installation should account for the supported load, operating temperature range, and non-condensing humidity range of 10% to 90%.
