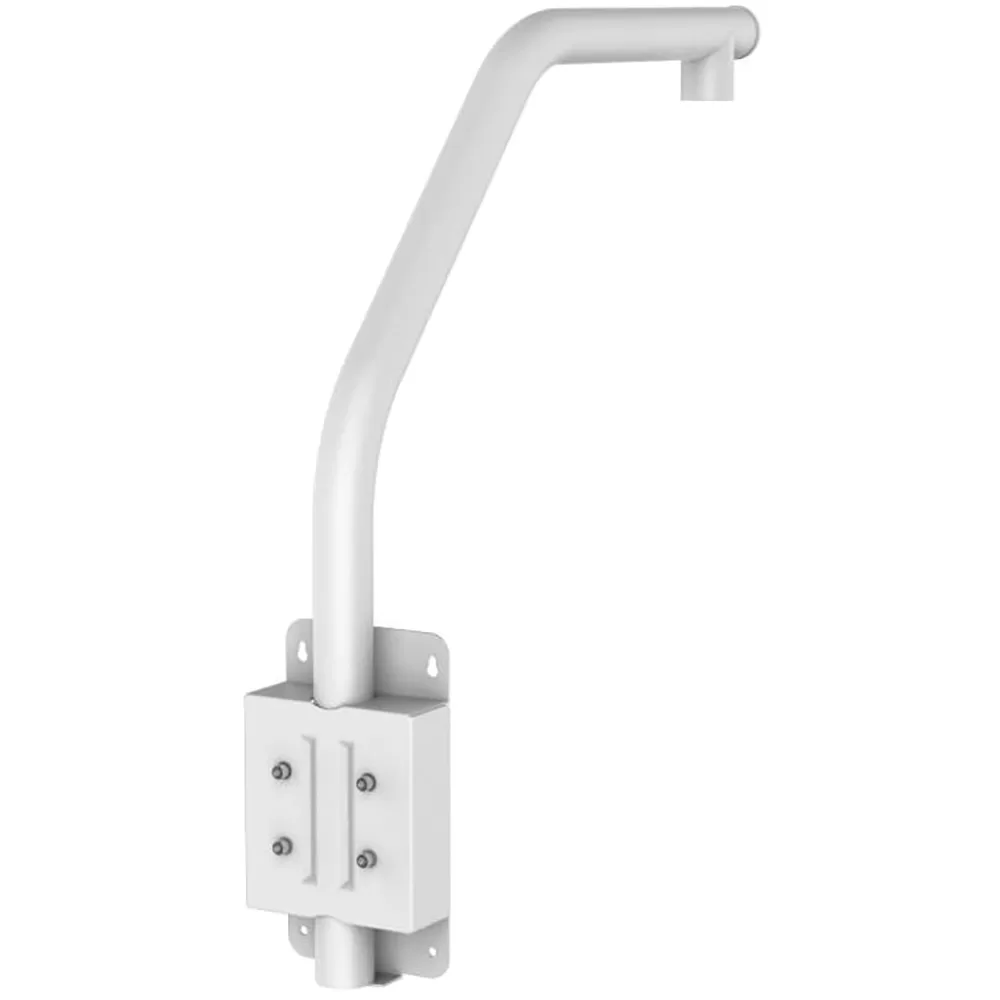

AVYCON - AVM-P-PWMT - Parapet Wall Mount Bracket for All PTZ's and Multi-sensor Cameras
Part number:
AVM-P-PWMT
Price:
Parapet wall mount bracket for all PTZ's and multi-sensor cameras, 32.4(W) x 7.1(H) x 34.6(L) inches, 15.5lbs load bearing, easy install.
Features:
- Quick and easy to adjust
- Rotatable for easy installation
- Supports up to 15.43 lbs
- Versatile, creative design and construction
| GENERAL | |
| Material | Aluminum & SUS 430 |
| Dimension | 34.5 x 32.4 x 7.0in (878.5 x 824.0 x 180.0mm) |
| Operating Temperature | -40ºF~140ºF (-40ºC~60ºC) |
| Humidity | 0~90% RH |
| Load Bearing | 15lb (7.0Kg) |
| Weight | 9.4lb (4.3Kg) |
| Color | White |
| Applicable Model | AVC-NCMS321M04 AVC-NSZ51X25LW AVC-NSZ51X33LW AVC-NSZ81X25LW AVC-NSZ21X25LW |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
