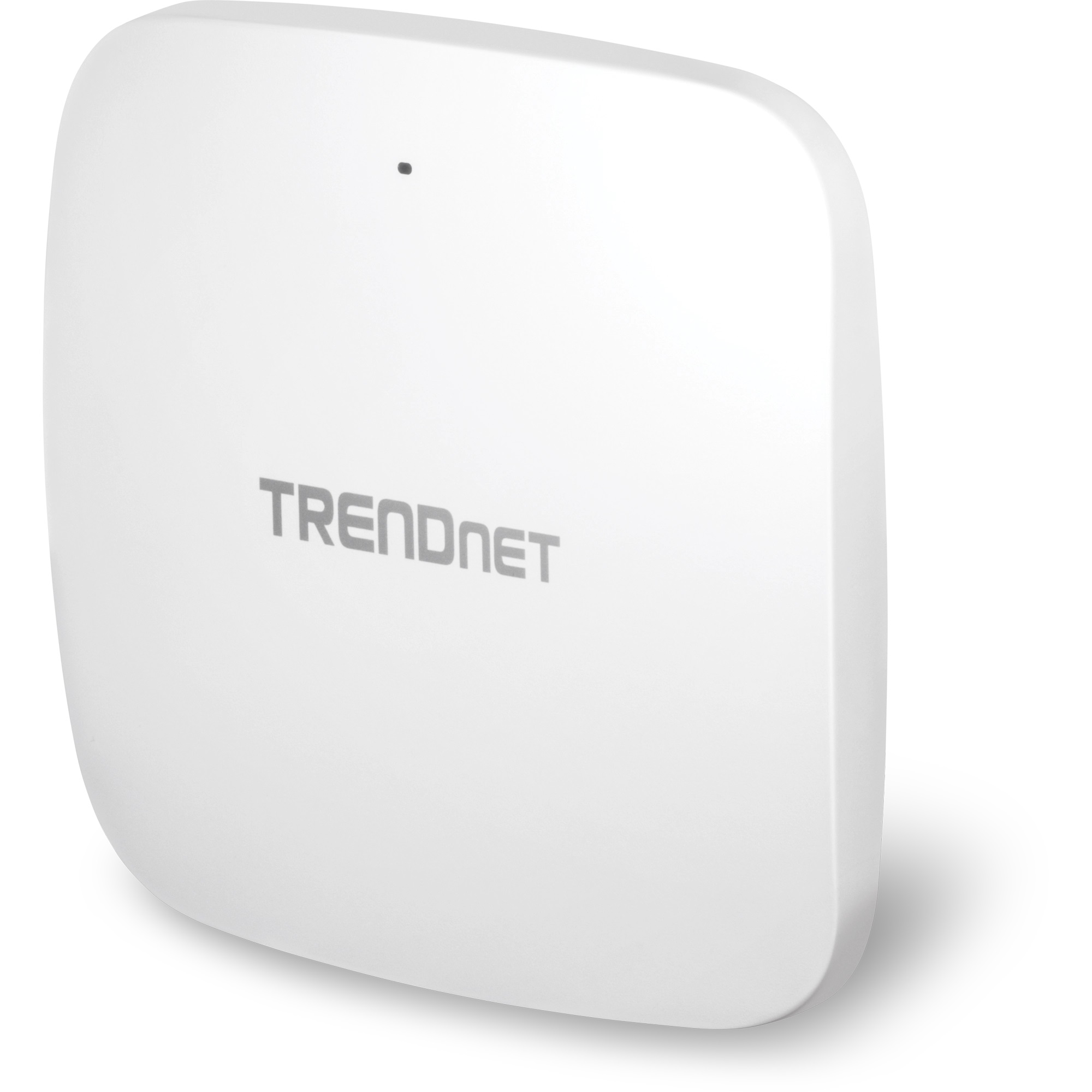

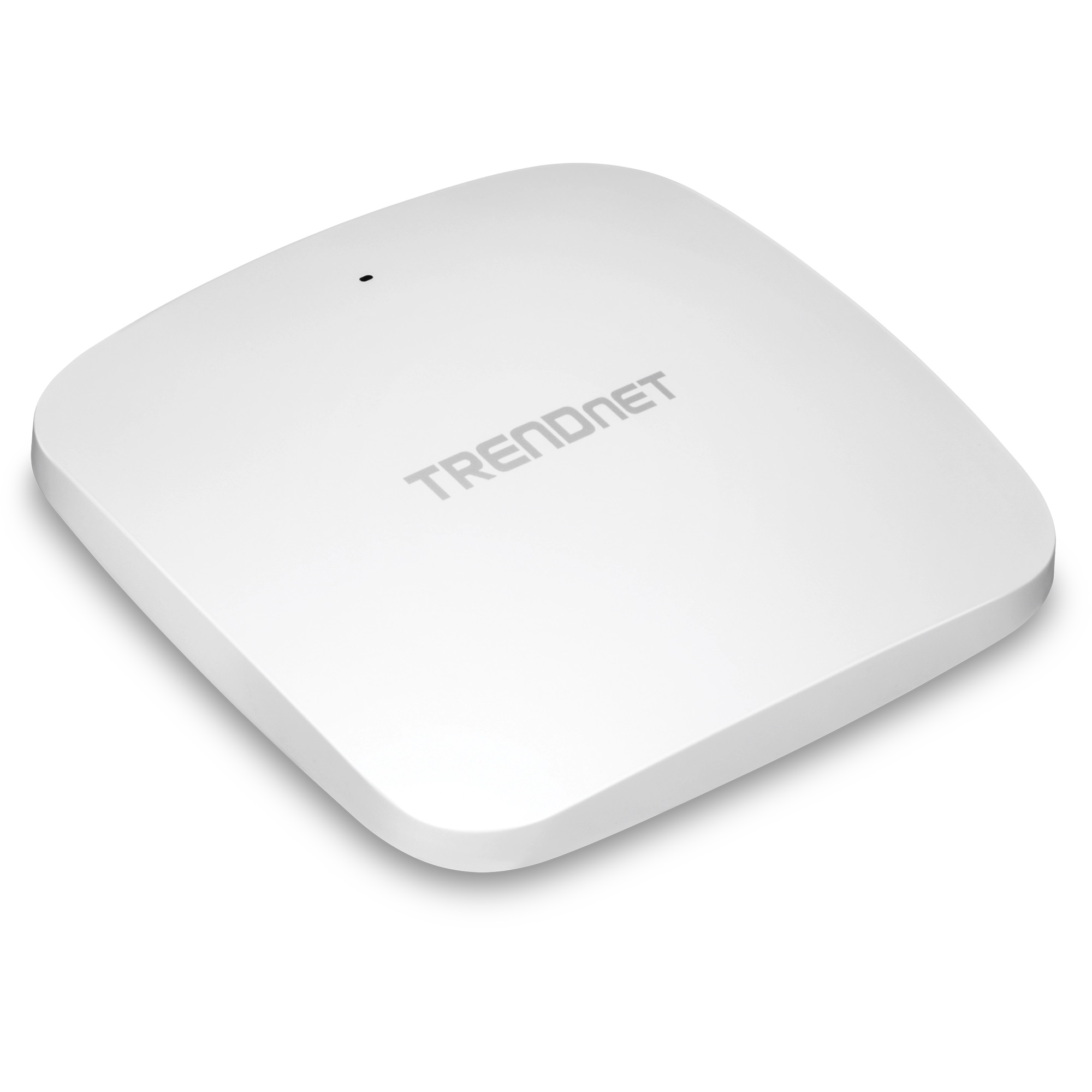

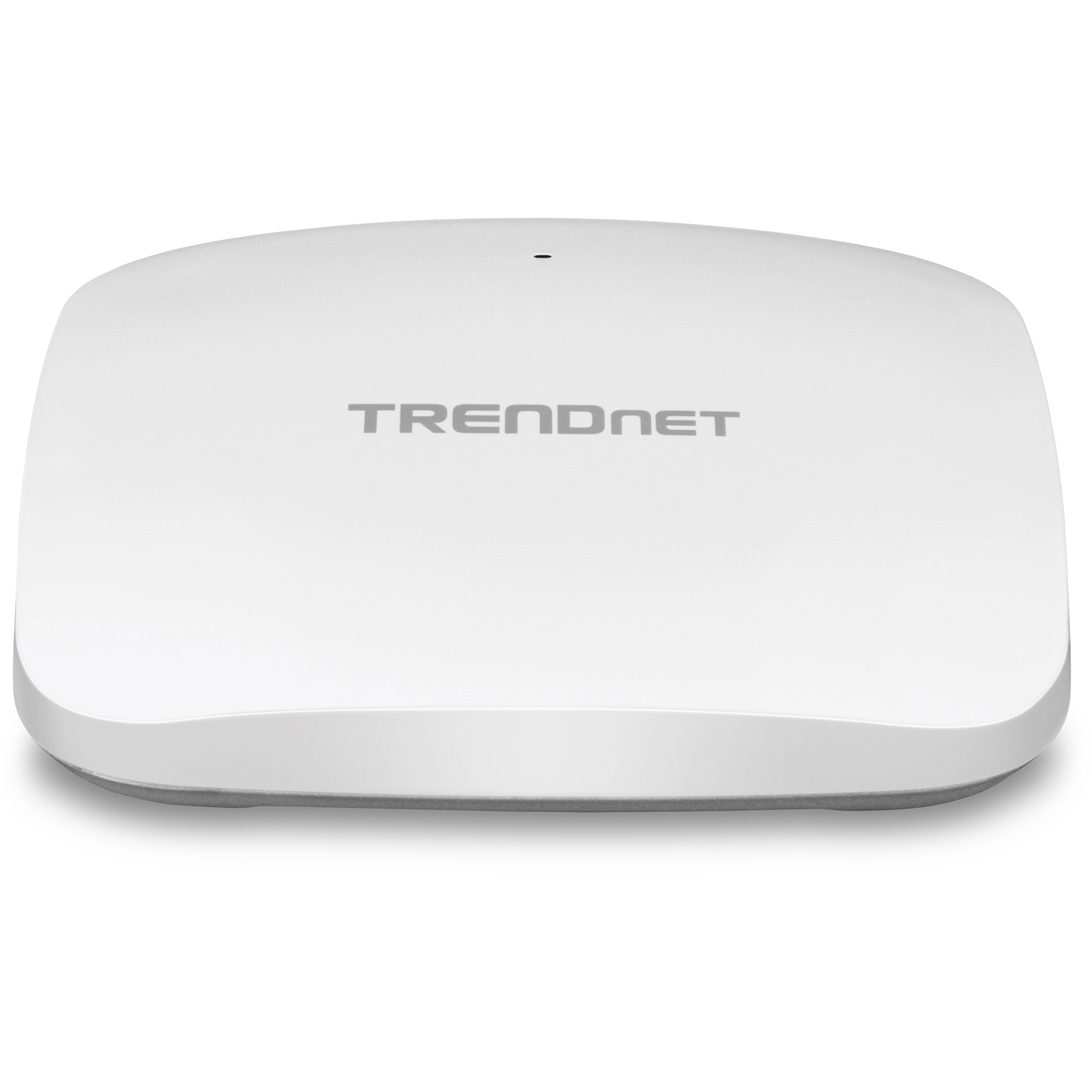

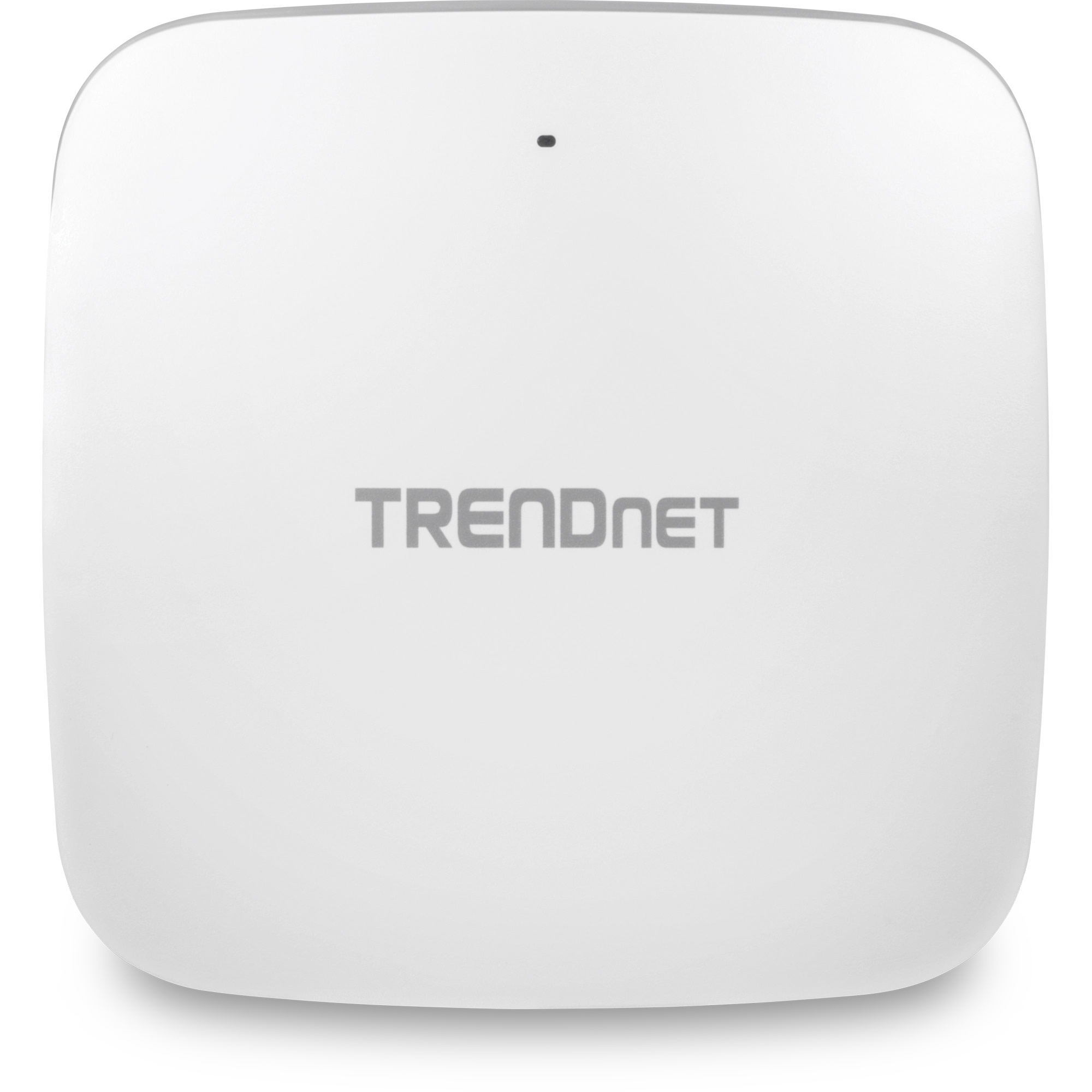

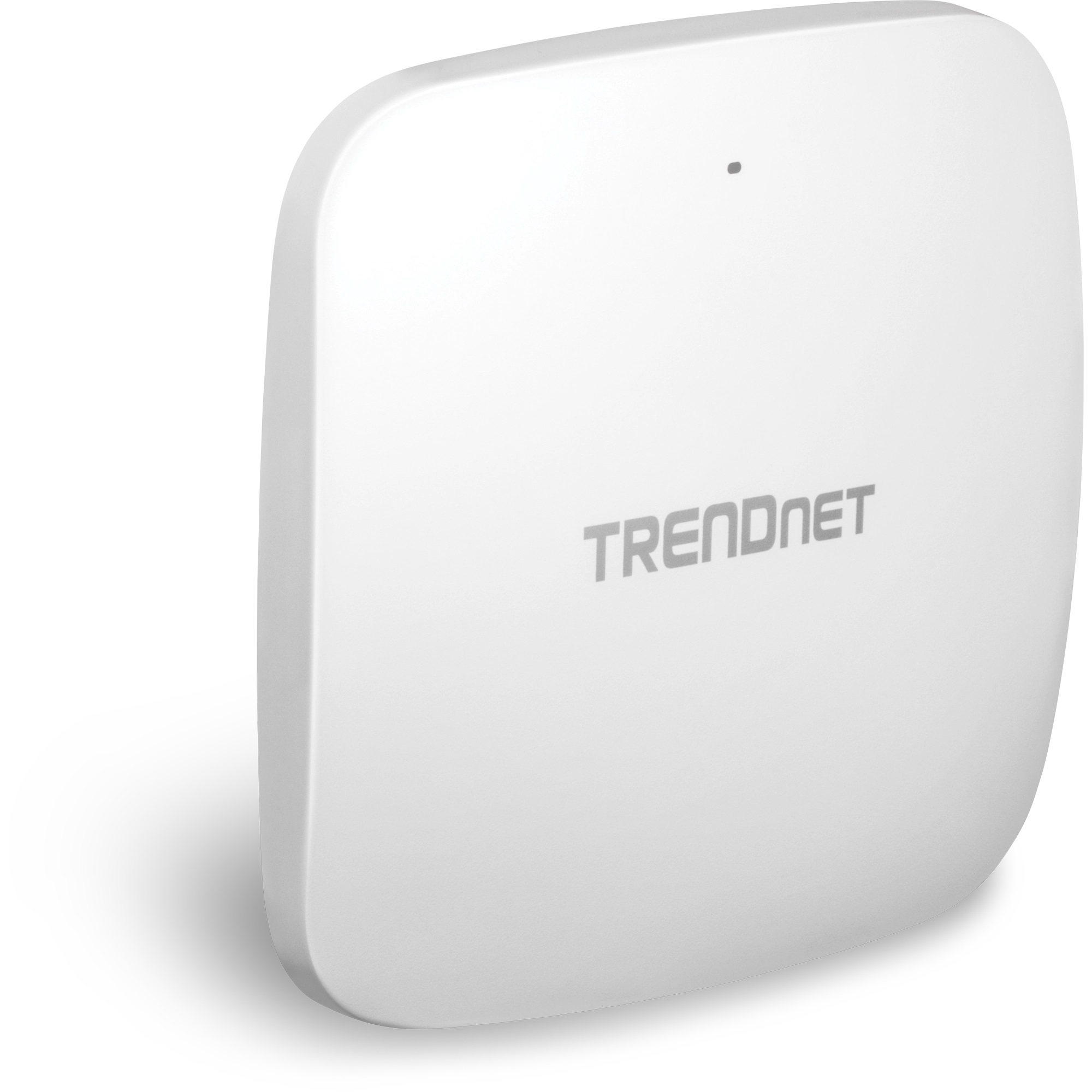

TRENDNET - TEW-923DAP - AX3000 Dual Band WiFi 6 PoE+ Access Point
TRENDNET - TEW-923DAP - AX3000 Dual Band WiFi 6 PoE+ Access Point
Part number:
TEW-923DAP
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet’s high-performance AX3000 Dual Band WiFi 6 PoE+ Access Point, model TEW-923DAP, features two concurrent WiFi bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 2402Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The access point also supports Access Point (AP) and Repeater modes.



Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments, and includes a convenient wall / ceiling mounting plate.



Easily manage and configure TRENDnet’s AX3000 Dual Band WiFi 6 PoE+ Access Point remotely with TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with this WiFi 6 access point and TRENDnet’s reliable cloud service.



Features:

  • High performance AX3000 PoE+ access point
  • AX3000 Dual Band: 2402Mbps (5GHz) + 573Mbps (2.4GHz) bands
  • Two concurrent WiFi bands maximize device networking speeds
  • OFDMA and MU-MIMO technology boosts performance in a busy environment
  • Access Point and Repeater modes
  • Supports up to WPA3 encryption
  • 1 x 2.5GBASE-T PoE+ LAN port
  • Low-profile blends into most environments
  • Includes wall / ceiling mounting plate
  • Remote cloud management with TRENDnet Hive (Additional fee applies)
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3bz
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11k**
  • IEEE 802.11n (up to 300Mbps)*
  • IEEE 802.11r**
  • IEEE 802.11v
  • IEEE 802.11ac (up to 867Mbps)*
  • IEEE 802.11ax (up to 2402Mbps on 5GHz, up to 573Mbps on 2.4GHz)*

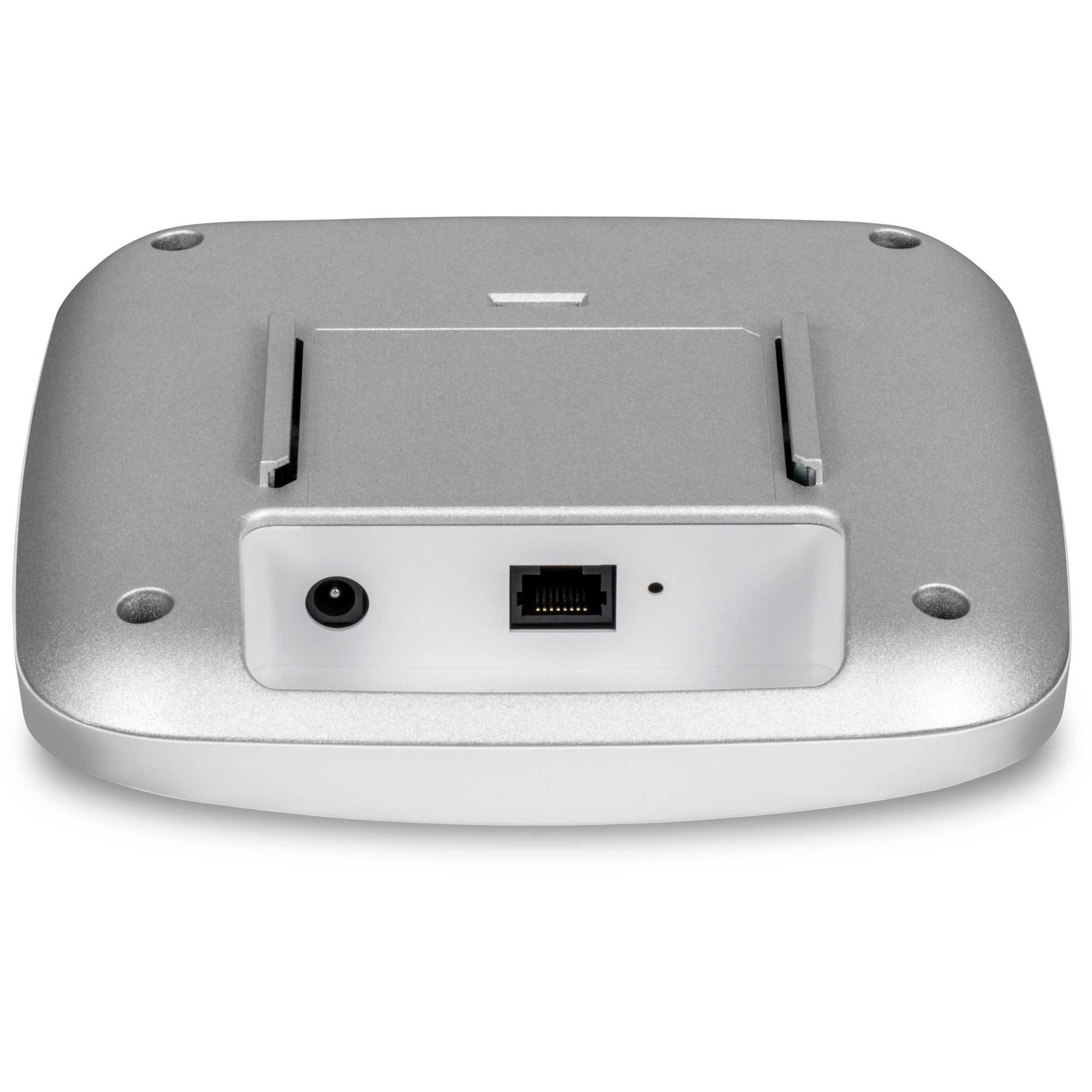

Hardware Interface
  • 1 x 802.3at PoE+ 2.5GBASE-T LAN port (power input)
  • Power port (12V DC, 1.5A external power adapter not included)
  • LED indicator
  • Reset button
Features
  • MU-MIMO
  • Band steering
  • 802.1Q VLAN assignment per SSID
  • IPv4 static/DHCP address assignment
  • UPnP/Bonjour
Operation Modes
  • Access Point
  • Repeater
Management/Monitoring
  • Web based management (HTTP/HTTPS)
  • Command Line Interface (Telnet/SSH)
  • SNMP v2c/v3
  • Spanning Tree Protocol (STP)
  • Event logging
  • Ping test
  • Traceroute
  • Schedule WiFi radio enable/disable
  • Ping watchdog/gateway connection monitor
  • Reboot & scheduled automatic reboot
  • Channel utilization scan
Hive Cloud Management***
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple switches
  •  Event/hardware network monitoring (CPU/memory utilization)
  • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management
Access Control
  • Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal)
  • MAC filter with scheduling
  • Maximum client limit
  • Client isolation
QoS
  • Bandwidth control per SSID
SSID
  • Up to 8 SSIDs per wireless band (16 total)
Frequency
  • 2.4GHz: 2.412 – 2.472GHz
  • 5GHz: 5.180 – 5.825GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11, ETSI: 1–13
  • 5GHz: FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 408, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161 and 165, ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA technique
Antenna Gain
  • 2.4GHz: 2 x 4.5 dBi internal
  • 5GHz: 2 x 5.5 dBi internal
Wireless Output Power
  • 802.11b/g/n/ac/ax (2.4GHz): FCC: 18 dBm (max.) / CE: 18 dBm (max.)
  • 802.11a/n/ac/ax (5GHz): FCC: 18 dBm (max.) / CE: 18 dBm (max.)
Receiving Sensitivity
  • 802.11a: -72 dBm (typical) @ 54Mbps
  • 802.11b: -97 dBm (typical) @ 11Mbps
  • 802.11g: -75 dBm (typical) @ 54Mbps
  • 802.11n (2.4 GHz): -72 dBm (typical) @ 300Mbps
  • 802.11n (5 GHz): -70 dBm (typical) @ 300Mbps
  • 802.11ac: -60 dBm (typical) @ 867Mbps
  • 802.11ax (2.4GHz): -60 dBm (typical) @ 573Mbps
  • 802.11ax (5GHz): -52 dBm (typical) @ 2402Mbps
Power
  • IEEE 802.3at Type 2 PoE+ PD Class 4
  • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1.5A external power adapter (not included)
  • Max. consumption: 17.4W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 160 x 160 x 30mm (6.3 x 6.3 x 1.18 in.)
Weight
  • 380g (13.4 oz.)
Warranty:
  • 3 year

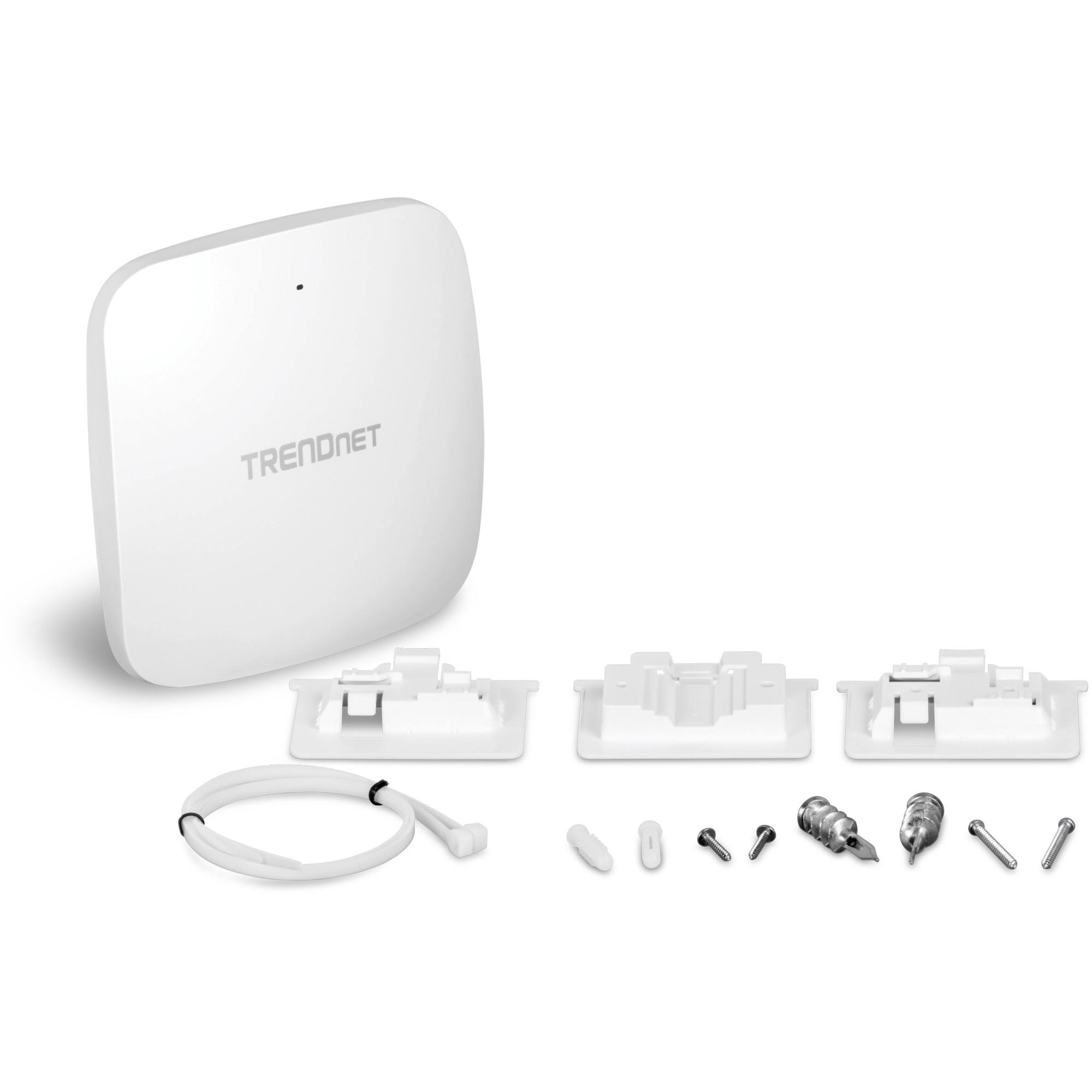

PACKAGE CONTENTS

  • TEW-923DAP
  • Quick Installation Guide
  • Network cable (0.5m / 1.64 ft.)
  • Mounting plates
