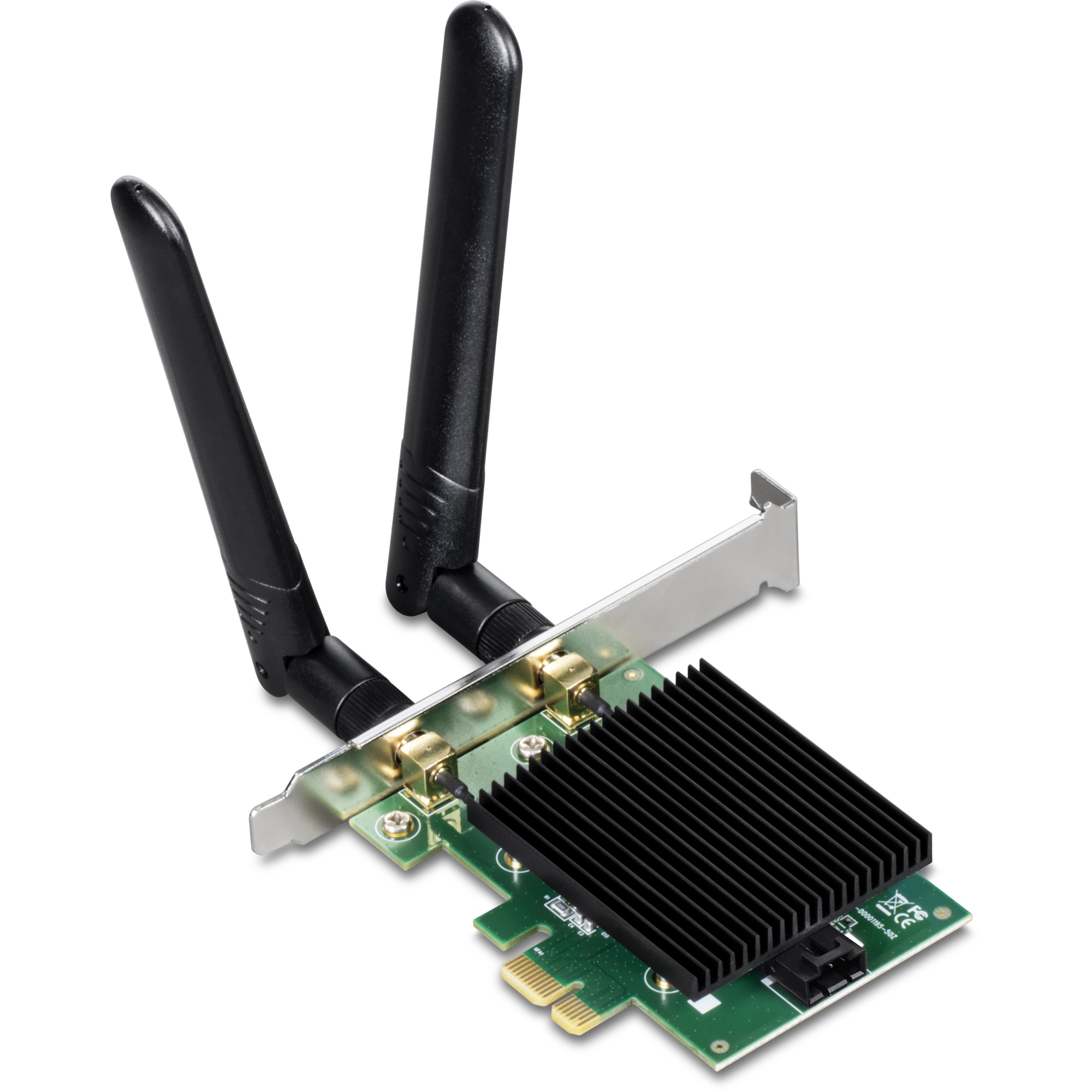

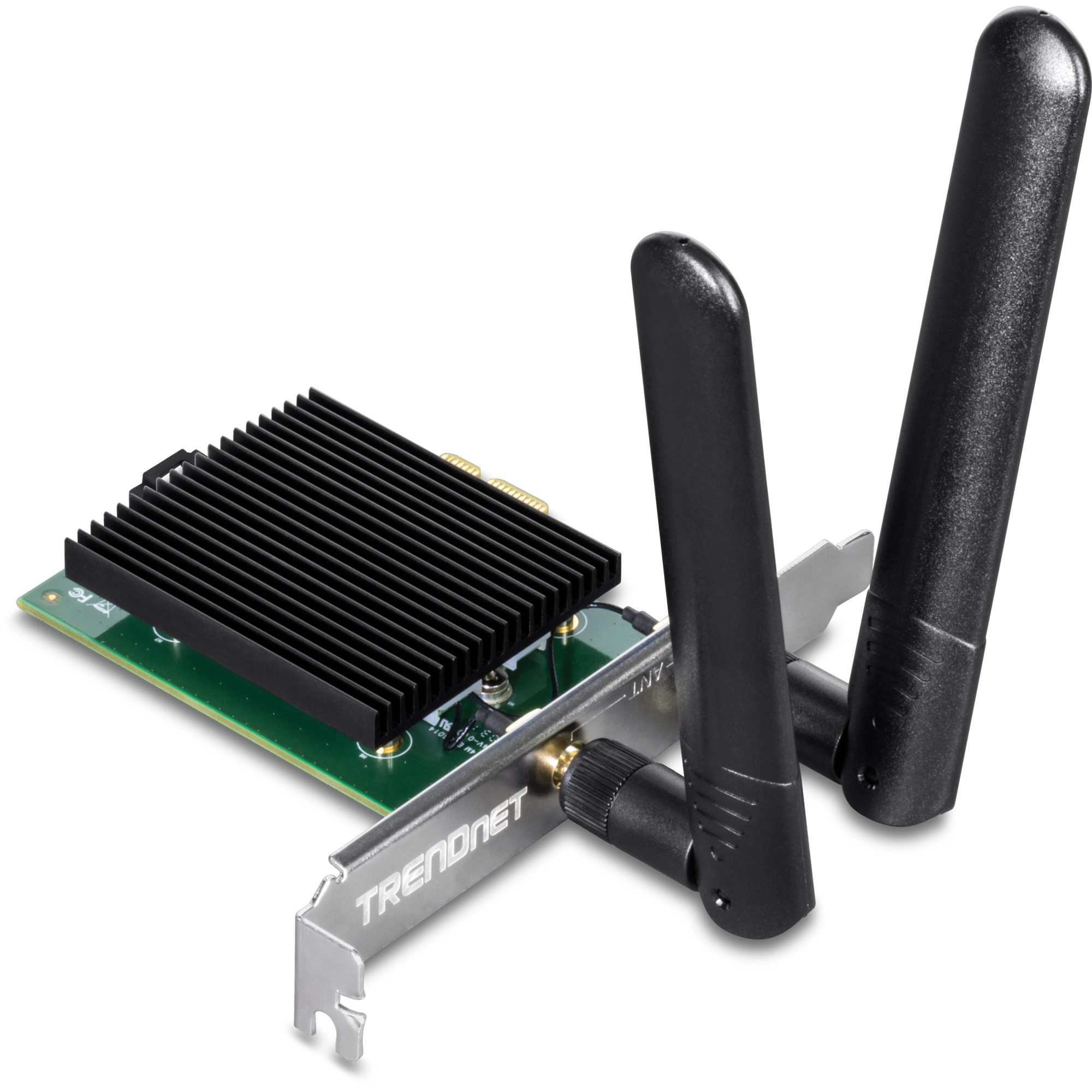

TRENDNET - TEW-907ECH - AX3000 Wireless Dual Band & Bluetooth® 5.2 (Class 2) PCIe Adapter
TRENDNET - TEW-907ECH - AX3000 Wireless Dual Band & Bluetooth® 5.2 (Class 2) PCIe Adapter
Part number:
TEW-907ECH
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet's AX3000 Wireless Dual Band & Bluetooth 5.2 (Class 2) PCIe Adapter, model TEW-907ECH, simultaneously provides Bluetooth and WiFi connections, allowing you to concurrently connect to a WiFi network and Bluetooth devices. Conveniently download music, videos, and pictures from a wireless internet connection, and then transfer those same files seamlessly to your Bluetooth-enabled phone or device. This WiFi Bluetooth PCIe card instantly upgrades a standard or low-profile Windows computer to Wireless AX3000 & Bluetooth 5.2 (Class 2). Quickly connect to a high-performance Wireless AX network at 2401Mbps or to a Wireless N network at 600Mbps. For extended range, use our magnetic antenna base, TEW-LB101 (sold separately), with the WiFi Bluetooth PCIe card to relocate antennas for optimal signal coverage.



Features:

  • Easy setup
  • AX3000: 2401Mbps Wireless AX or 600Mbps Wireless N bands
  • Bluetooth 5.2 class 2 radio
  • Supports Windows 10 and 11
  • Supports up to WPA3 WiFi encryption
  • Concurrent Bluetooth and WiFi connectivity
  • Includes standard and low-profile brackets
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • PCI Express 2.0
  • Class 2 Bluetooth® 5.2
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11e
  • IEEE 802.11g
  • IEEE 802.11h
  • IEEE 802.11i
  • IEEE 802.11k
  • IEEE 802.11n (up to 600Mbps)
  • IEEE 802.11r
  • IEEE 802.11v
  • IEEE 802.11ac (up to 1733Mbps)
  • IEEE 802.11ax (up to 2401Mbps)
Hardware Interface
  • PCIe 2.0 x1 interface
  • 2 x antennas
Encryption
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-Radius, WPA3
Frequency
  • 2.4GHz: 2.412 – 2.462GHz
  • 5GHz: 5.150 – 5250 GHz
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM technique
  • OFDMA
Antenna Gain
  • 2.4GHz: 2 x 3.24 dBi (max.)
  • 5GHz: 2 x 4.97dBi (max.)
Wireless Output Power
  • 802.11a: 16 dBm (max)
  • 802.11b: 16.5 dBm (max)
  • 802.11g: 16.5 dBm (max)
  • 802.11n: 18 dBm (max)
  • 802.11ac: 14 dBm (max)
  • 802.11ax: 14.75 dBm (max)
Receiving Sensitivity
  • 802.11a: -77 dBm (typical) @ 54Mbps
  • 802.11b: -89 dBm (typical) @ 11Mbps
  • 802.11g: -76 dBm (typical) @ 54Mbps
  • 802.11n: -73 dBm (typical) @ 600Mbps
  • 802.11ac: -61 dBm (typical) @ 1733Mbps
  • 802.11ax: -63 dBm (typical) @ 2401Mbps
Wireless Channels
  • 2.4GHz: FCC: 1 – 11
  • 5GHz: FCC: 36, 40, 44, 48, 149, 157, 161, 165;
Compatibility
  • Windows® 10 (64-bit) and 11 only
Special Features
  • Bluetooth 5.2 Class 2
  • Compatible with TEW-LB101
Power
  • Max. consumption: 6.1W
Operating Temperature
  • 0° – 40° C (32° – 103° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
Dimensions
  • 87 x 55 x 17mm (3.43 x 2.17 x 0.7 in.)
Weight
  • 88g (3.1 oz.)
Warranty
  • 3 years

PACKAGE CONTENTS

  • TEW-907ECH
  • 2 x External Antennas

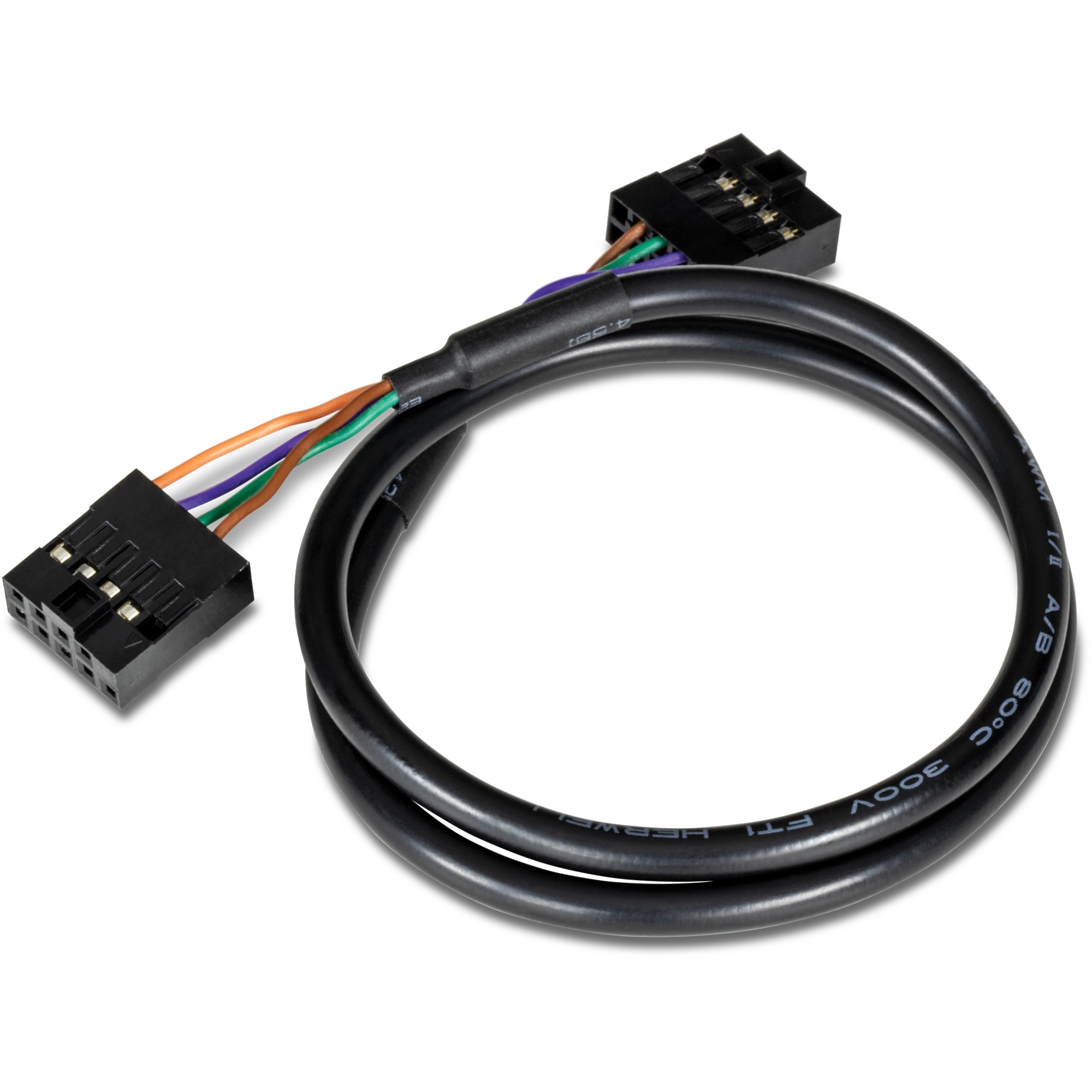

  • Bluetooth Header Cable
  • Quick Installation Guide

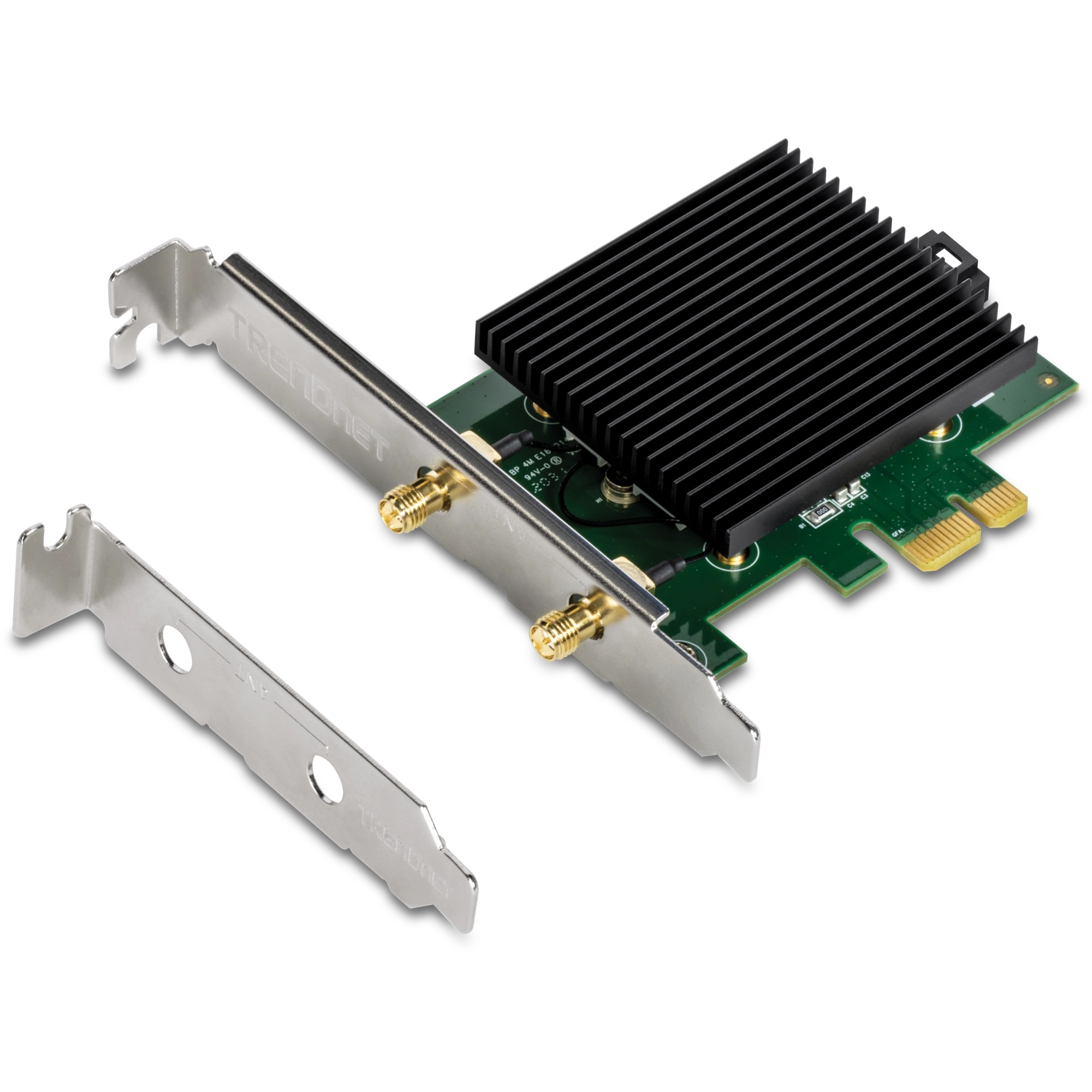

  • Standard & low-profile brackets
