TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point
TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point
TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point
TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point
TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point
TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point
TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point
TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point

TRENDNET - TEW-925DAP - AX5400 Dual Band Wifi 6 PoE+A ccess Point

Part number:
TEW-925DAP
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet’s high-performance AX5400 Dual Band WiFi 6 PoE+ Access Point, model TEW-925DAP, features two concurrent WiFi bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 4804Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The WiFi 6 access point also supports Access Point (AP) and Repeater modes.



Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. The wireless access point features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments, and includes a convenient wall / ceiling mounting plate.



Easily manage and configure TRENDnet’s AX3000 Dual Band WiFi 6 PoE+ Access Point remotely with TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with this WiFi 6 access point and TRENDnet’s reliable cloud service.



Features:

  • High performance AX5400 PoE+ access point
  • AX5400 Dual Band: 4804Mbps (5GHz) + 573Mbps (2.4GHz) bands
  • Two concurrent WiFi bands maximize device networking speeds
  • OFDMA and MU-MIMO technology boosts performance in a busy environment
  • Access Point and Repeater modes
  • Supports up to WPA3 encryption
  • 1 x 2.5GBASE-T PoE+ LAN port
  • Low-profile blends into most environments
  • Includes wall / ceiling mounting plate
  • Remote cloud management with TRENDnet Hive (Additional fee applies)
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.3bz
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11k**
  • IEEE 802.11n (up to 300Mbps)*
  • IEEE 802.11r**
  • IEEE 802.11v
  • IEEE 802.11ac (up to 1733Mbps)*
  • IEEE 802.11ax (up to 4804Mbps on 5GHz, up to 573Mbps on 2.4GHz)*

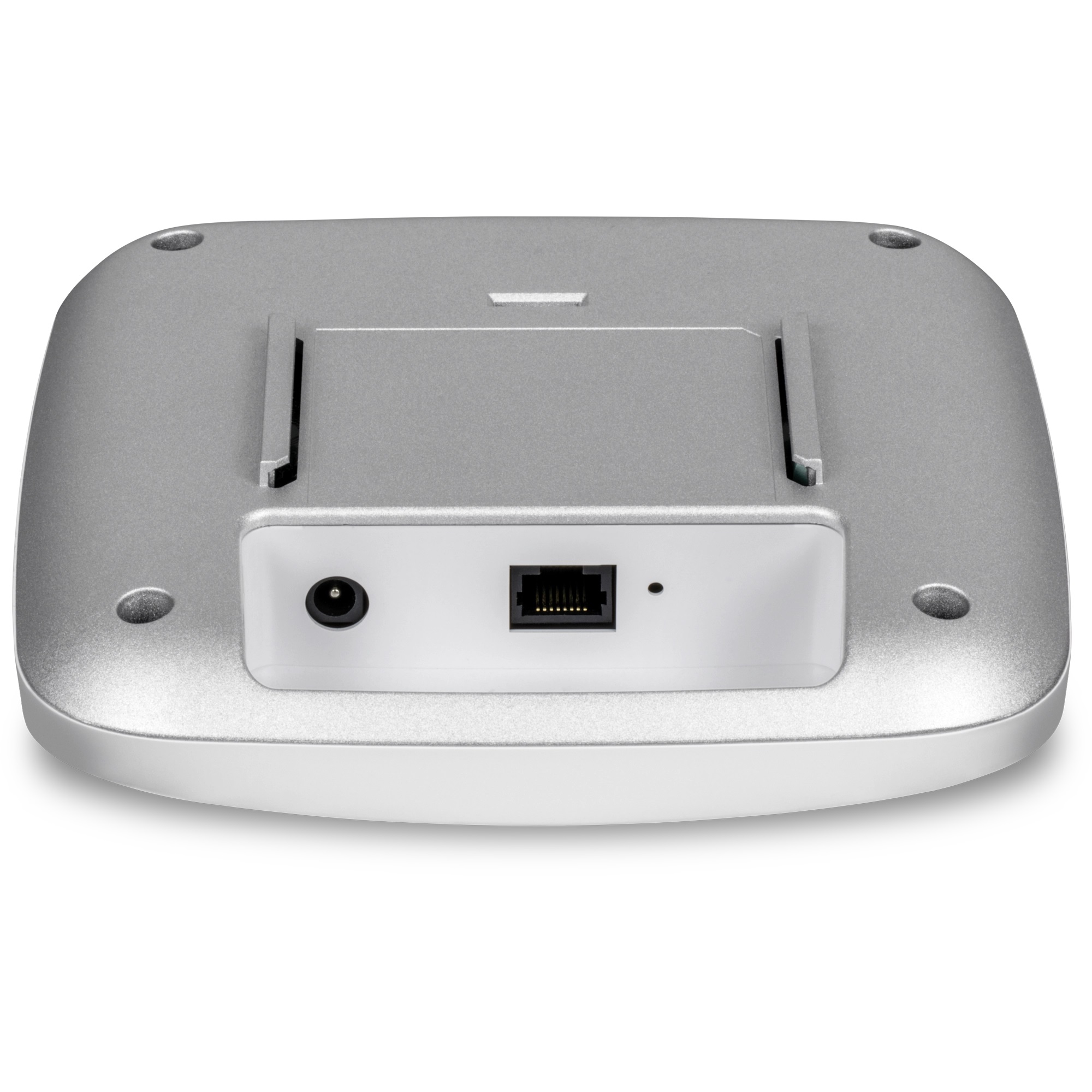

Hardware Interface
  • 1 x 802.3at PoE+ 2.5GBASE-T LAN port (power input)
  • Power port (external power adapter not included)
  • LED indicator
  • Reset button
Features
  • MU-MIMO
  • Band steering
  • 802.1Q VLAN assignment per SSID
  • IPv4 static/DHCP address assignment
  • UPnP/Bonjour
Operation Modes
  • Access Point
  • Repeater
Management/Monitoring
  • Web based management (HTTP/HTTPS)
  • Command Line Interface (Telnet/SSH)
  • SNMP v2c/v3
  • Spanning Tree Protocol (STP)
  • Event logging
  • Ping test
  • Traceroute
  • Schedule WiFi radio enable/disable
  • Ping watchdog/gateway connection monitor
  • Reboot & scheduled automatic reboot
  • Channel utilization scan
Hive Cloud Management***
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple switches
  •  Event/hardware network monitoring (CPU/memory utilization)
  • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management
Access Control
  • Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-PSK (Personal)
  • MAC filter with scheduling
  • Maximum client limit
  • Client isolation
QoS
  • Bandwidth control per SSID
SSID
  • Up to 8 SSIDs per wireless band (16 total)
Frequency
  • 2.4GHz: 2.412 – 2.462GHz
  • 5GHz: 5.150 – 5.250GHz, 5.745 – 5.825GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA technique
Antenna Gain
  • 2.4GHz: 2 x 4.5 dBi internal
  • 5GHz: 2 x 5 dBi internal
Wireless Output Power
  • 802.11b/g/n/ac/ax (2.4GHz): FCC: 21 dBm (max.)
  • 802.11a/n/ac/ax (5GHz): FCC: 27 dBm (max.)
Receiving Sensitivity
  • 802.11a: -69 dBm (typical) @ 54Mbps
  • 802.11b: -84 dBm (typical) @ 11Mbps
  • 802.11g: -71 dBm (typical) @ 54Mbps
  • 802.11n (2.4 GHz): -67 dBm (typical) @ 300Mbps
  • 802.11n (5 GHz): -58 dBm (typical) @ 300Mbps
  • 802.11ac: -57 dBm (typical) @ 1733Mbps
  • 802.11ax (2.4GHz): -54 dBm (typical) @ 573Mbps
  • 802.11ax (5GHz): -52 dBm (typical) @ 4804Mbps
Power
  • IEEE 802.3at Type 2 PoE+ PD Class 4
  • Input: 100 - 240V AC, 50/60Hz,
  • Max. consumption: 18W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
Dimensions
  • 160 x 160 x 30mm (6.3 x 6.3 x 1.18 in.)
Weight
  • 600g (21.16 oz.)
Warranty:
  • 3 year

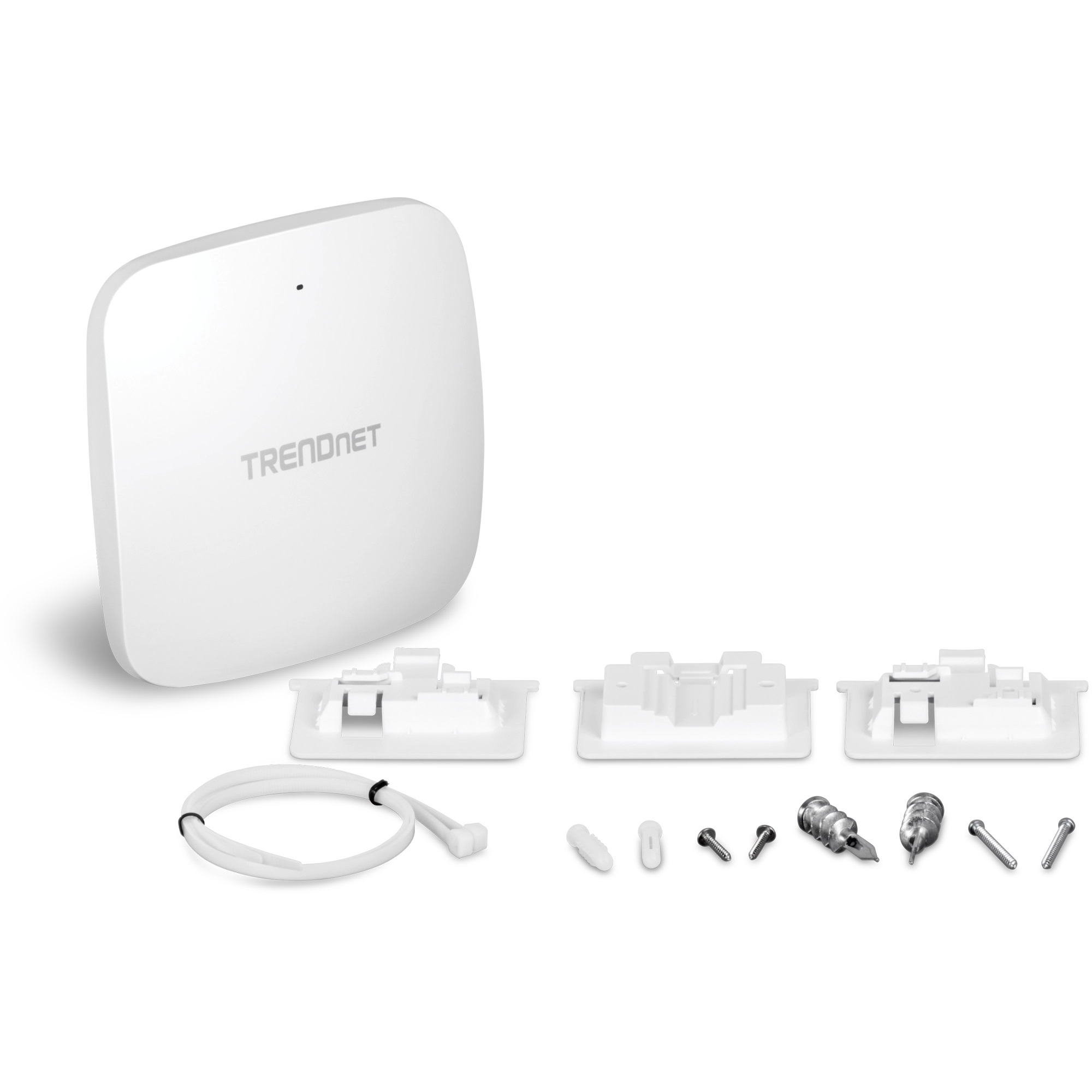

PACKAGE CONTENTS

  • TEW-925DAP
  • Quick Installation Guide
  • Network cable (0.5 m/1.64 ft.)
  • Mounting plates
Name
Description
Size
Downloads
File
Datasheet
1mb
File
User Guide
1.5mb
