Hanwha - SLA-T2480BA - Bandit Barrier Lens
Part number:
SLA-T2480BA
Price:

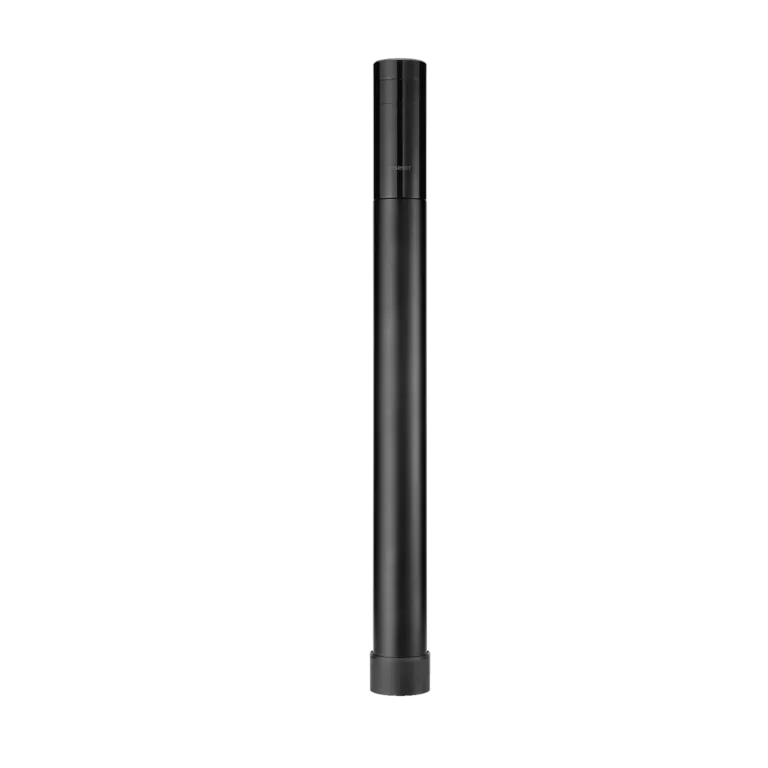

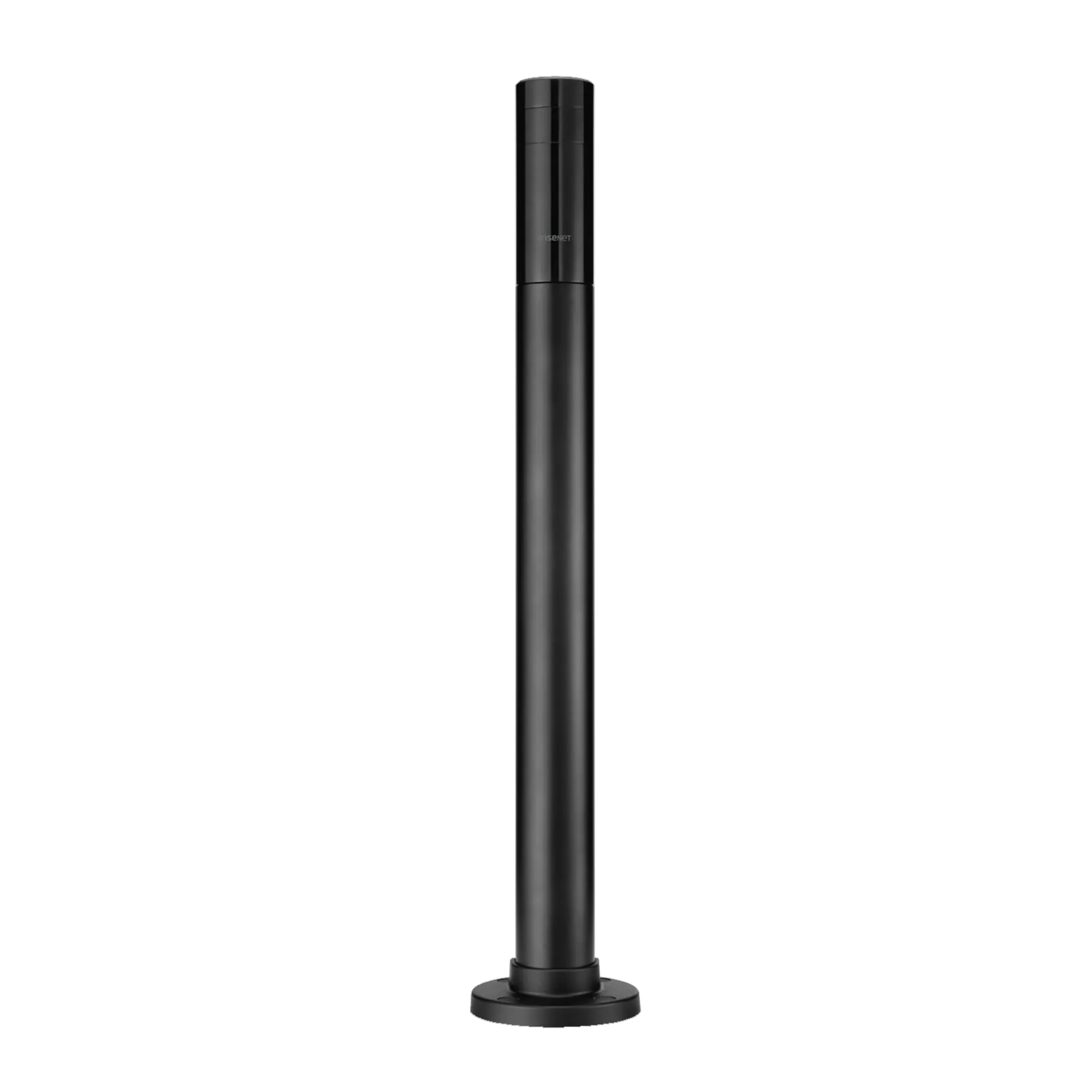

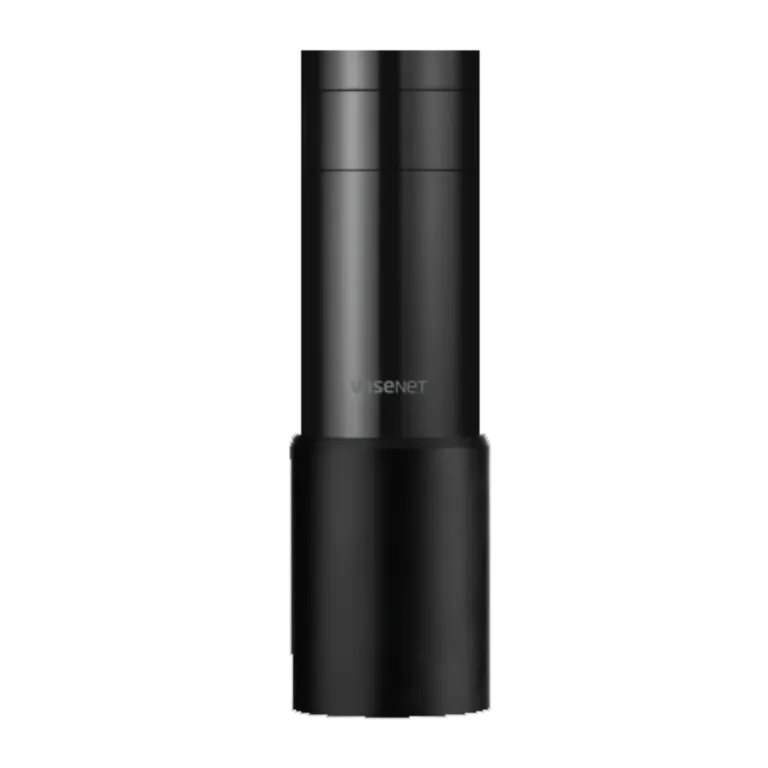

The Bandit Barrier / Teller Tower lens is designed for banking and retail applications. The lens is adjustable in height to suit your installation environment and can be mounted flat against a wall/counter/partition, or anchored to a counter below. Designed for overt surveillance while being stylish to blend into the surroundings and obtain video from the desired height and angle.
Features:
- Bandit Barrier 2.4mm fixed lens (138°)
- H.265, H.264, MJPEG codec support, Multiple streaming
- 60fps@2MP (H.265 / H.264)
- WDR (120dB)
- Built-in Analytics
- SD / SDHC / SDXC memory slot (Maximum 256GB)
- Hallway View, WiseStream II support
- LDC, PoE / 12V DC, Bi-directional audio support
- Adjustable height and installation options for various installation types
- compatible with PNM-9000QB, and XNB-6002 (not included)
- cable length 8m (26 feet), can be cut to length as needed
- black color
| Video | - |
| Imaging Device | 1/2.8" CMOS |
| Min. Illumination | Color: 0.045Lux(F2.0, 1/30sec, 30IRE) BW: 0.045Lux(F2.0, 1/30sec, 30IRE) * with PNM-9000QB, XNB-6002 |
| Lens | - |
| Focal Length (Zoom Ratio) | 2.4mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 138° V: 73° D: 165° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Fixed |
| Mount Type | RJ12 connected with main unit |
| Environmental & Electrical | - |
| Operating Temperature / Humidity | -10°C~+55°C(+14°F~+131°F) / 0~90% RH |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Mechanical | - |
| Color / Material | Housing : Black / Plastic, Aluminum Lens : Black / Plastic, Aluminum |
| Product Dimensions / Weight | Bandit Barrier: 66.5x46x175~737mm(2.6"x1.8"x6.9~29.0"), Main Unit: 131.1x28x86mm (5.16"x1.10"x3.39"), Cable: 8m(26.2ft) Bandit Barrier: 250~1,000g(0.55~2.205 lb), Camera Body: 245g(0.54 lb) |
