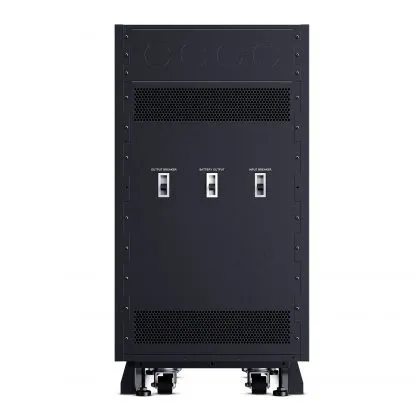

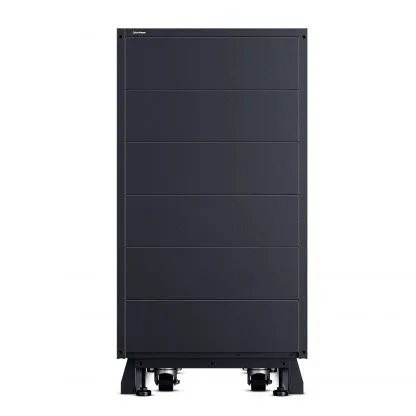

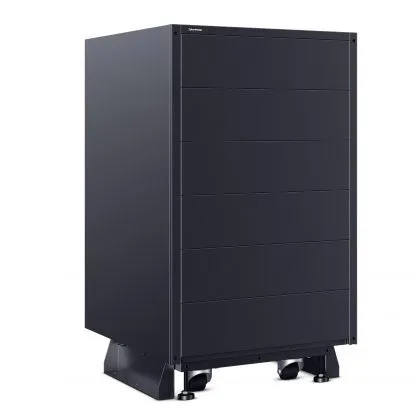

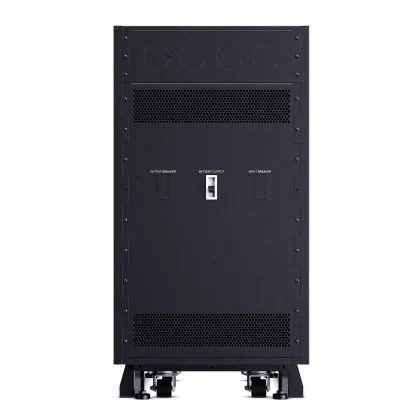

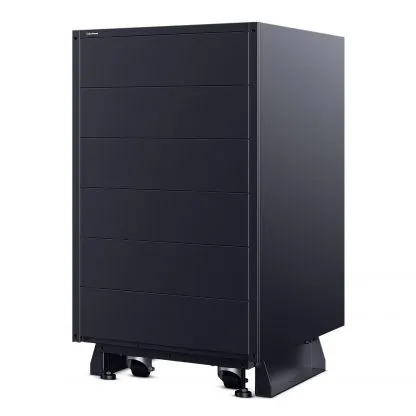

Cyber Power - BCT6L9N225 - Battery Cabinet Modular 6 Layer for 10-40KVA UPS 3-Phase
Part number:
BCT6L9N225
Price:
The CyberPower BCT6L9N225 3-Phase Modular UPS Battery Cabinet can hold up to 12 battery modules (BM120V30ATY). These 6-layer units can be configured as stand-alone cabinets, rack mounted, or stacked with another component of our modular UPS system. Includes a One-Year Limited Warranty.
Features:
- Smart Battery Management: Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
- Expandable Runtime: Additional battery modules in BCT6L9N225 cabinets will increase runtimes.
- Hot-Swappable Batteries: Keeps equipment running by eliminating downtime during UPS power maintenance.
- Customizable Configuration: The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack.
- One-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within one year of your 3-Phase Modular UPS installation. See warranty for details.
| Battery | |
| Battery Module Capacity Maximum | 12 |
| Output | |
| Nominal Output Voltage | 240 VAC |
| Physical | |
| Color | Black |
| Form Factor | Modular |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 19U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 48.51 x 94.23 x 77.47 (cm) |
| Physical Dimensions – (WxHxD) (in) | 19.1 x 37.1 x 30.5 (in) |
| Physical Dimensions – (WxHxD) (mm) | 485 x 942 x 775 (mm) |
| Physical Weight (kg) | 93.89 |
| Physical Weight (lb) | 207 |
| Dimensions – Power Module | |
| Power Module – Rack Units | 19U |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Elevation Note | At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Temperature Note | Battery life is halved for every 10°C increase above 20°C |
| Storage Battery Temperature Note | Optimum battery storage between -15°C and 20°C |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 104 °F (-15 – 40 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | cTUVus |
| UL1778, CSA C22.2 No. 107.3-14 | |
| CFR 47 FCC Part 15, Subpart B, Class A | |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
