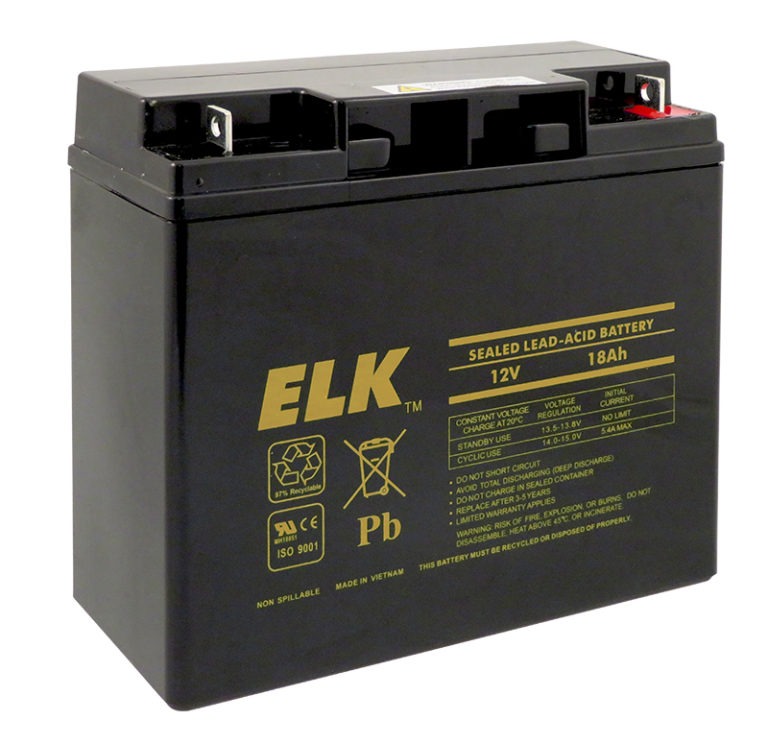

ELK - 12180 - Battery, Lead Acid 12V-18.0Ah
Part number:
12180
Price:
ELK Sealed Lead Acid Batteries are excellent for the following applications with regard to size, Amp hour rating, and proper terminal connections: battery backup (for Access Control Systems, Fire Alarm Systems, and Security Alarm Systems), emergency lights, lighted exit signs, and uninterruptible power supplies.
Features:
- Rechargeable
- All virgin materials for long life
- More lead for greater Ah capacity
- Size comparable to other manufacturer's lower Ah sizes
- UL Recognized Component
- 2 Year Over-the Counter Warranty
- Case Quantity: 3
- 12 Volt, 18 Ah SLA Battery with B1-M5 bolt and nut
| Specifications | |
| Nominal Voltage | 12 Volts |
| Rated Capacity | 18 AH (20 hour rate) |
| Length | 7.13" (181mm) |
| Width | 2.99" (76mm) |
| Height | 6.57" (167mm) |
| Total Height | 6.57" (167mm) |
| Terminals | B1-M5 bolt & nut |
