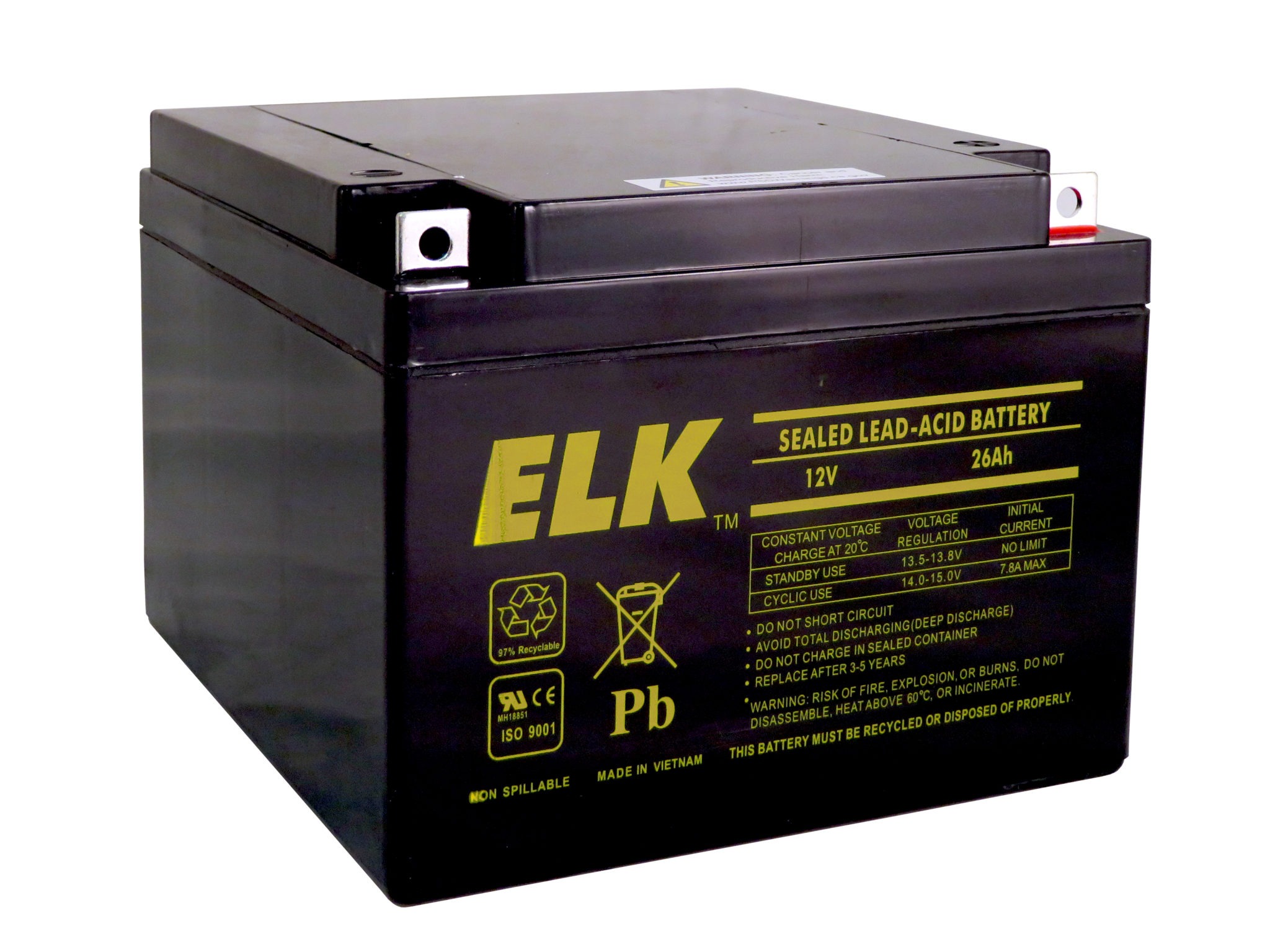

ELK - 12260 - Battery Lead Acid 12V-26.0Ah
Part number:
12260
Price:
- • Rechargeable
- • All virgin materials for long life
- • More lead for greater Ah capacity
- • Size comparable to other manufacturer's lower Ah sizes
- • UL Recognized Component
- • 2 Year Over-the Counter Warranty
- • Back-up battery for security alarm systems, fire alarm systems and access control systems
- • Emergency lights
- • Lighted exit signs
- • Uninterruptible power supplies
- • Other general purpose use
• Included: 12 Volt, 26 Ah SLA Battery with 2 B1-M5 bolts and nuts
| Nominal Voltage | 12 Volts |
| Rated Capacity | 26 AH (20 hour rate) |
| Length | 6.54" (166mm) |
| Width | 6.89" (175mm) |
| Height | 4.96" (126mm) |
| Terminals | B1-M5 bolt & nut |
| Nominal Capacity (77°F, 25°C) | |
| 20 hour rate (1.3A) | 26 Ah |
| 10 hour rate (2.42A) | 24.2 Ah |
| 5 hour rate (4.24 A) | 21.2 Ah |
| 1 hour rate (14.51 A) | 14.51 Ah |
| Effect of Temperature on Capacity (20 hour rate) | |
| Note | Prolonged exposure to extreme temperatures can have long term effects on battery performance |
| 104˚F (40˚C) | 102% |
| 77˚F (25˚C) | 100% |
| 32˚F (0˚C) | 85% |
| 5˚F (-15˚C) | 65% |
| Charge Constant Voltage | |
| Cycle | 14.4V - 14.8V at 77˚F (25˚C) Initial Charging Current 7.5A Max |
| Standby | 13.5V - 13.8V at 77˚F (25˚C) |
| Weight (Approximate) | 16.06 lbs (7.3 kg) |
| Terminals | B1-M5 bolt & nut |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
ELK Sealed Lead Acid Batteries - SDS
0.6mb
ELK sealed lead acid batteries are ideal for the following applications thanks to their size, amp hour rating and proper terminal connections: battery backup for access control systems, fire alarm systems and security alarm systems; emergency lights; lighted exit signs; and uninterruptible power supplies.
