- • Compact, Low cost, and easy to use
- • Does not discharge or damage the battery
- • Analyzes 12 Volt Rechargeable Batteries
- • Numeric LED display shows battery voltage, and Mhos reading
- • Warns if battery voltage is too low
- • Replaceable test leads
- • Includes Padded Carrying Case
- • Includes Self-Adhesive Test Data Labels
• Included: ELK-BLT Battery LifeTester™, Padded Carrying Case, 25 Test Data Labels, Instructions
| Operating Voltage | 10V - 14 Volts D.C. |
| Current Draw | 1.1 Amps Max., 0.0016Ah for full test |
| Battery Leads | ~12 Inches |
| Enclosure Size | 4.4" W x 3" H x 1.15" D (111.8mm x 76.3mm x 29.2mm) w/o carrying case |
Name
Description
Size
Downloads
File
ELK-BLT-Data-Sheet.pdf
0.7mb
File
ELK-BLT-v3-instructions.pdf
0.1mb

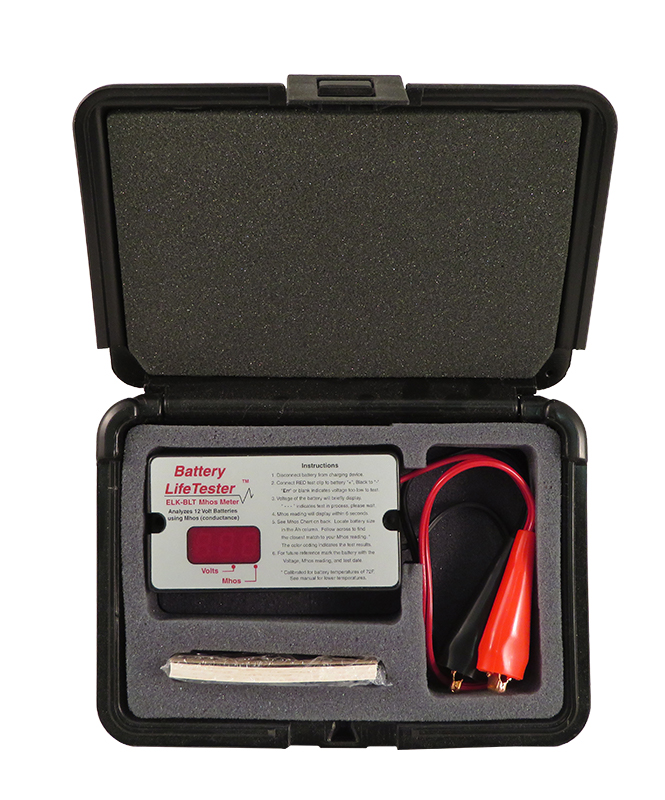

The ELK-BLT Battery Life Tester, also known as the Mhos Meter, is a compact and user-friendly tool for testing 12-volt rechargeable batteries. The BLT measures internal conductivity (Mhos), the most reliable indicator of a battery’s health and life expectancy. Mhos is the inverse of Ohms (i.e. conductance as opposed to resistance). The BLT operates as follows: For each battery brand and size, you should start by measuring and recording a baseline. Mhos reading. Then, during any service call or inspection, simply measure and record the most recent Mhos reading. Always compare the current Mhos reading with the original reading.
