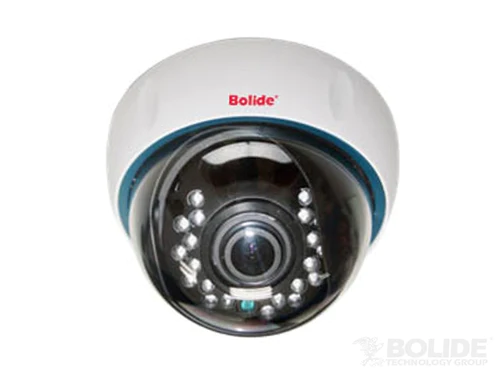

Bolide - BC1109IRVAWD - 720P Dome Camera with Wide Dynamic Range
Part number:
BC1109IRVAWD
Price:
720P AHD Indoor Dome Camera, 1/3" 1.3MP Sony CMOS, 2.8-12mm Varifocal lens, IR Up to 75ft, over 100dB WDR, 12VDC
Features:
- 1/3” 1.3MP SONY Exmor CMOS
- 100 dB Double Shutier WDR
- 32X Sense up
- Auto Defog, HLC, Privacy mask, motion detection
- 2D/3D DNR, anti-ghost effect
- AHD 720P/960H 900TVL output simultaneously
- Multi Languages OSD Control from AVR
- DC12V
| Specifications | |
| Image Sensor | 1/3” 1.3MP SONY Exmor CMOS |
| Effective Pixels | 1305 (H) x 1049 (V) |
| Resolution | Digital: 1280 x 720 (720p/60fps) |
| Analog: 960H | |
| S/N Ratio | ≥ 50dB (AGC off) |
| Min. Illumination | Color: 0.1Lux@(F2.0,AGC on) B/W: 0.001Lux @(F2.0, AGC on) |
| Scanning System | Progressive |
| Video Output | Digital: HD-AHD |
| Analog: 1Vp-p Composite Output (75Ω/BNC) | |
| Day / Night | Extern, Color, B&W, Auto |
| White Balance | Auto |
| Defog | ON/OFF |
| DNR | 2D + 3D NR |
| WDR | ON/OFF/MID/HIGH |
| Current | 500mA |
| Specs. CON’T | |
| Privacy Mask | ON/OFF 16 Areas |
| Motion Detection | ON/OFF 14 Areas |
| Lens | 2.8-12mm |
| IR LED | 21pcs IR LED |
| IR Range | 20M |
| Power Supply | DC12V±10% |
| Power Consumption | <6.5W |
| Weight | 550g |
| IR Rating | IP60 |
| Storage Temperature | -10°C ~ 40°C |
| Working Temp. | -10°C ~ 60°C Humidity 85% or less (non-condensing) |
