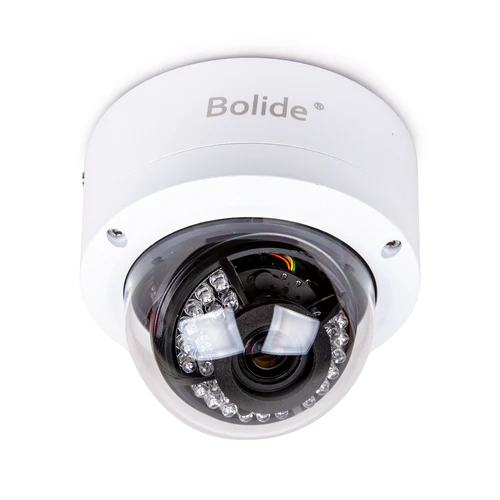

Bolide - BC1209AVAIRM/22AHQ - Angelo HD HD 4 in 1 1080P IR Dome Camera with Motorized Zoom Lens
Part number:
BC1209AVAIRM/22AHQ
Price:
2.0MP AHD / TVI / CVI / Analog Vandal-proof Vandal-proof Dome Camera, 1/3" CMOS, 6.0-22mm Motorized Varifocal Lens, IR Up to 85 ft., Control Over Coax, OSC, Quickswitch, 12VDC, White
Features:
- Coax Control
- Supports AHD/CVI/TVI/ANALOG 4 in 1
- 1080P @ 30fps
- Lens: 6-22mm
- Motorized Lens with Auto-Focus
- 35 pcs. IR LED
- IR Distance: Up to 85 ft.
- Weather-rating: IP66
| Specifications | |
| Image Sensor | 1 / 2.7” CMOS |
| Resolution | 1920 (H) x 1080 (V) |
| Effective Pixels | 2 Mega Pixel |
| Lens | Mega Pixel HD Lens |
| Focal Length | 6-22mm Lens |
| IR Distance | Up To 85 ft. / 35 pcs. |
| Output Mode | AHD/CVI/TVI/Analog |
| Min. Illumination | Color:0.1 Lux White/Black: 0.1 Lux |
| AGC | Auto |
| WB | Auto |
| D/N Switch | Color/WB/IR (outside) / inside auto |
| Contrast | 10 Level can be adjusted |
| Sharpness | 20 Level can be adjusted |
| Saturation | 20 Level can be adjusted |
| DNR | 15 Level can be adjusted |
| Video System | NTCS |
| DWDR | OFF/ON |
| Language | English (5 languages optional) |
| Power Supply | 12VDC |
| Weight (with bracket) | 0.8kg |
| Dimensions | |
| Height | 4.5” inches |
| Length | 4.7” inches |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
