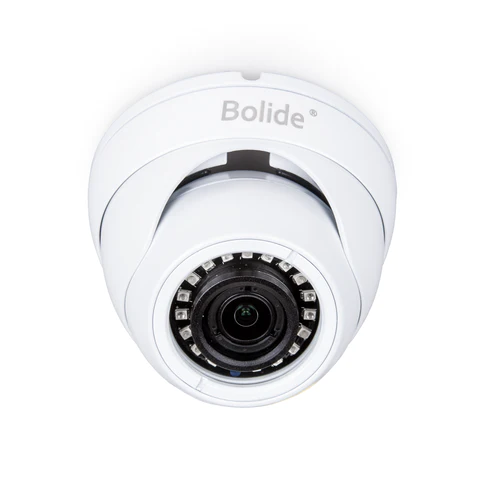

Bolide - BC1209IRODVAM/28/AHQ - HD 4 in 1 1080P IR Mini Dome Camera 2.8-8mm lens
Part number:
BC1209IRODVAM/28/AHQ
Price:
2.0MP AHD / TVI / CVI / Analog Eyeball Camera, 1/3" CMOS, 2.8-8mm Wide Angle Motorized Varifocal Lens, IR Up to 65 ft., Control Over Coax, OSC, Quickswitch, 12VDC, White
Features:
- Coax Control
- Supports AHD/CVI/TVI/ANALOG 4 in 1
- 1080P @ 30fps / 25fps
- 2.8-8mm Mega Pixel HD Motorized lens
- 12 pcs. IR LED
- IR Distance: Up to 82 ft.
- Weather-rating: IP66
| Specifications | |
| Image Sensor | 1 / 2.7” CMOS |
| Resolution | 1920 (H) x 1080 (V) |
| Effective Pixels | 2 Mega Pixel |
| Focal Length | 2.8-8mm Lens with Auto Focus |
| IR Distance | Up to 82 ft. / 12 pcs. |
| Output Mode | AHD/CVI/TVI/Analog |
| Min. Illumination | Color:0.1 Lux |
| White/Black: 0.1 Lux (with IR LED on) | |
| AGC | Auto |
| WB | Auto |
| AES | NTSC: 1/60s-1/10000s |
| PAL: 1/50s-10000s | |
| D/N Switch | Color/WB/IR (outside) / inside auto |
| Contrast | 10 Level can be adjusted |
| Sharpness | 20 Level can be adjusted |
| Saturation | 20 Level can be adjusted |
| DNR | 15 Level can be adjusted |
| Video System | NTCS |
| DWDR | OFF/ON |
| S/N Ratio | More than 48dB |
| Storage Temp. | -40°C ~ 60°C |
| Operating Temp. | -40°C ~ 55°C |
| Power Supply | DC12V |
| Weight (with bracket) | 0.32kg |
| Dimensions | 3.3" x 3.7" |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
