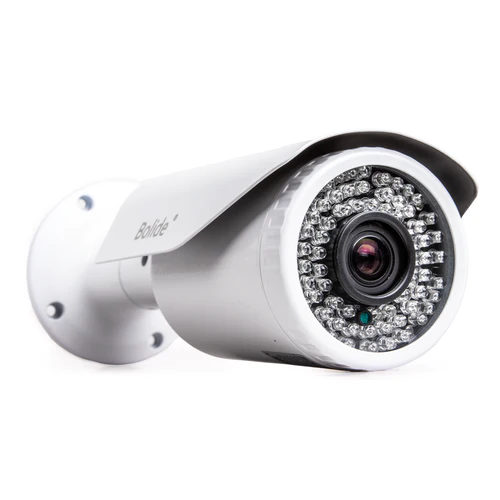

Bolide - BC1236M/22AHQ - HD 4 in 1 1080P IR Bullet Camera with Motorized Zoom Lens
Part number:
BC1236M/22AHQ
Price:
2.0MP AHD / TVI / CVI / Analog Bullet Camera, 1/3" CMOS, 6.0-22mm Motorized Varifocal Lens, IR Up to 200 ft., Control Over Coax, OSC, Quick-switch, 12VDC/24VAC Dual Voltage, White
Features:
- Coax Control
- Supports AHD/CVI/TVI/ANALOG 4 in 1
- 1080P @ 30fps / 25fps
- 6-22mm Mega Pixel HD Motorized lens
- 72 pcs. IR LED
- IR Distance: Up to 200 ft.
- Weather-rating: IP66
- Dual Voltage 12VDC/24VAC
| Specifications | |
| Image Sensor | 1 / 2.7” CMOS |
| Resolution | 1920 (H) x 1080 (V) |
| Effective Pixels | 2 Mega Pixel |
| Focal Length | 6-22mm lens with Auto Focus |
| IR Distance | Up to 200 ft. / 72 pcs. |
| Output Mode | AHD/CVI/TVI/CVBS |
| Min. Illumination | Color:0.1 Lux White/Black: 0.1 Lux (with IR LED on) |
| AGC | Auto |
| WB | Auto |
| AES | NTSC: 1/60s-1/10000s |
| PAL: 1/50s-10000s | |
| D/N Switch | Color/WB/IR (outside) / inside auto |
| Contrast | 10 Level can be adjusted |
| Sharpness | 20 Level can be adjusted |
| Saturation | 20 Level can be adjusted |
| DNR | 15 Level can be adjusted |
| Video System | NTCS |
| DWDR | OFF/ON |
| S/N Ratio | More than 48dB |
| Storage Temp. | -40°C ~ 60°C |
| Operating Temp. | -40°C ~ 55°C |
| Power Supply | 12VDC |
| Weight (with bracket) | 0.76kg |
| Dimensions | |
| Height | 3.6” inches |
| Length | 6.7” inches |
| Base | 5.6” inches |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
