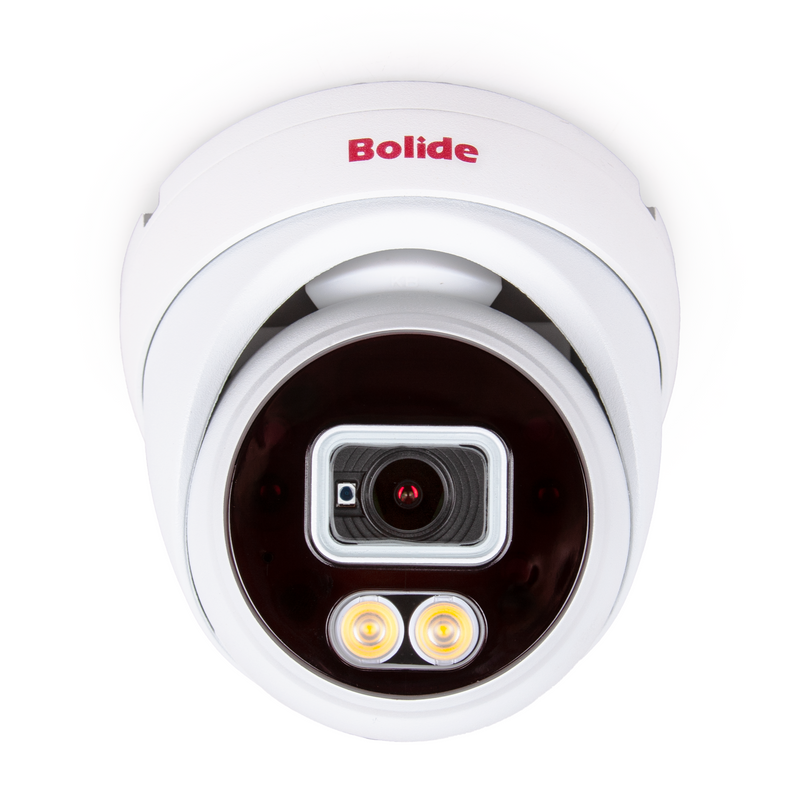

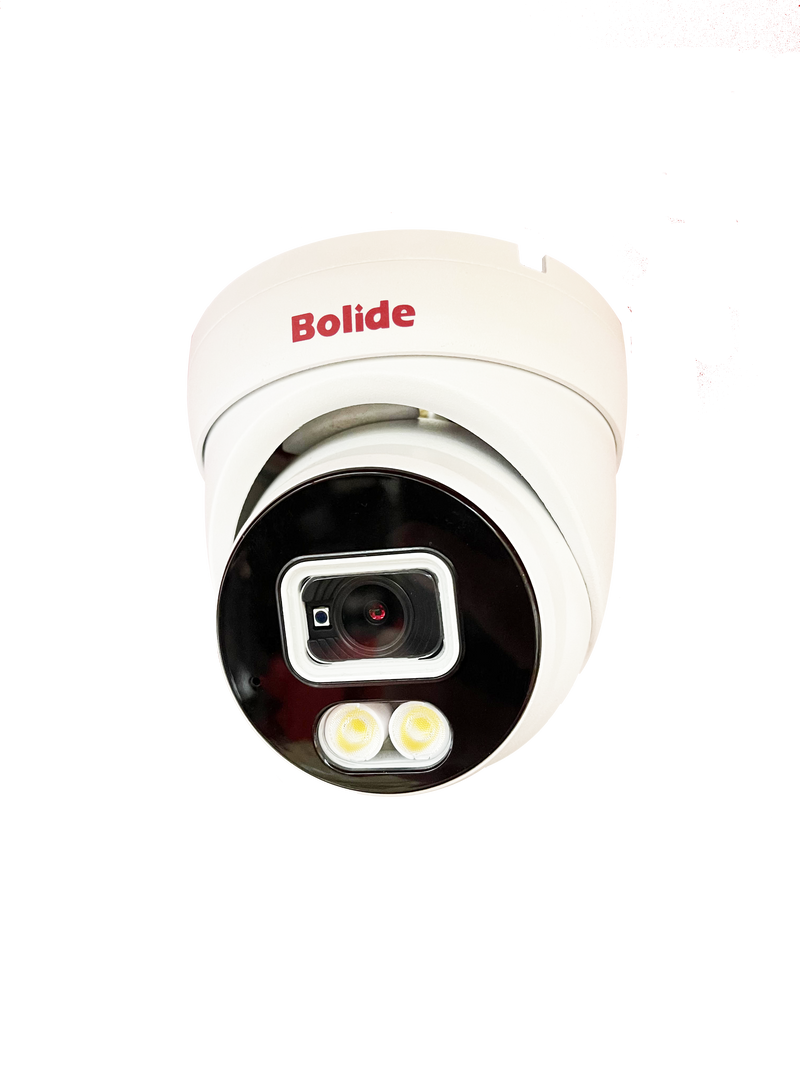

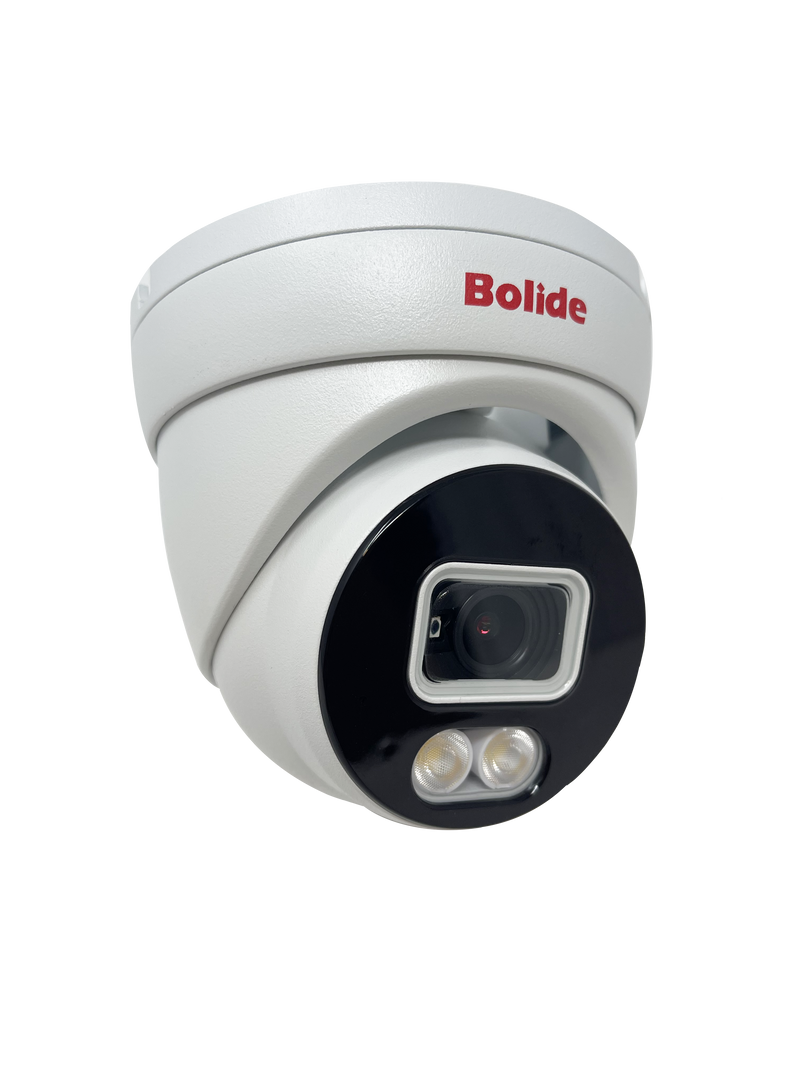

BOLIDE - BC1509FC - Full Color 5MP Fixed Lens Eyeball Camera With Control Over Coax
Part number:
BC1509FC
Price:
5.0MP AHD / TVI / CVI / Analog Full Color At Night with Built-in Audio; Eyeball Camera, 1/3" CMOS, 2.8mm Wide Angle Lens, Whitelight Range 65-164 ft., Control Over Coax, OSC, Quickswitch, 12VDC, White
Features:
5MP Ultra HD Resolution
• Full Color At Night
• Compatible with AHD, TVI, CVI, and Analog DVRs
• 2.8mm Wide Angle Fixed Lens
• Built-in Microphone
| Resolution | 5MP |
| Signal System | PAL/NTSC |
| Effective Pixels | 2592(H)*1944(V) |
| Lens | 2.8mm fixed lens |
| White Light Range | Up to 65 Feet |
| Video Output Mode | AHD/CVI/TVI/CVBS |
| Day/Night | Color / Ext / B&W |
| Video Frame Rate | 20FPS, 25FPS, 30FPS |
| Min. Illumination | Color: 0.05 Lux @ (F1.0/F1.6/F2.1, AGC ON) with white light |
| S/N Ratio | >60dB |
| Shutter Speed | Auto |
| White Balance | ATW |
| AGC | Yes |
| Operating | -40°F ~ 131°F, Humidity 90% or less |
| Weather-Rating | IP66 Rated |
