BOLIDE - BC1509IRODVA/AHNW - 5MP / 4MP / 2MP 9-in-1 Varifocal Eyeball Camera, 2.8-12mm Lens

Part number:
BC1509IRODVA/AHNW
Price:

Product Overview

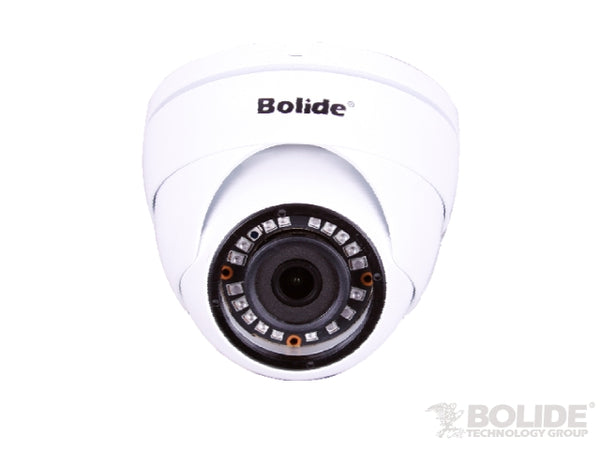

The Bolide BC1509IRODVA/AHNW is a highly versatile 9-in-1 hybrid eyeball camera designed for seamless integration across multiple analog platforms. It features a 3.3–12mm varifocal lens, allowing installers to manually adjust the field of view for precise coverage. With its switchable resolution (up to 5MP) and 130ft IR range, it provides a high-definition upgrade path for existing coaxial infrastructure.


Key Configuration

  • • Image sensor: 1/2.7" CMOS; resolution options: 5MP (2560×1920), 4MP, 2MP (1920×1080)
  • • Lens: 3.3–12mm varifocal; ICR mechanical switch for day/night conversion
  • • IR: 24pcs Flux IR LEDs, distance up to 130 ft
  • • Output modes: AHD / TVI / CVI / Analog (selectable)
  • • Power: 12VDC


Key Features

It features a 3.3-12mm varifocal lens and a 130ft IR range, supported by an OSD menu with granular controls: 15-level DNR, 20-level sharpness/saturation, and DWDR. With Quickswitch and Control over Coax (CoC), format toggling (AHD/TVI/CVI/CVBS) and settings adjustments are handled seamlessly through the DVR.


Technical Context

This camera operates on the NTSC video system and maintains a signal-to-noise ratio of >48 dB for clear video. It utilizes an Auto Electronic Shutter (AES) and automatic gain control to adapt to shifting light conditions, ensuring consistent 5MP, 4MP, or 2MP performance across various analog infrastructures.


Installation Notes

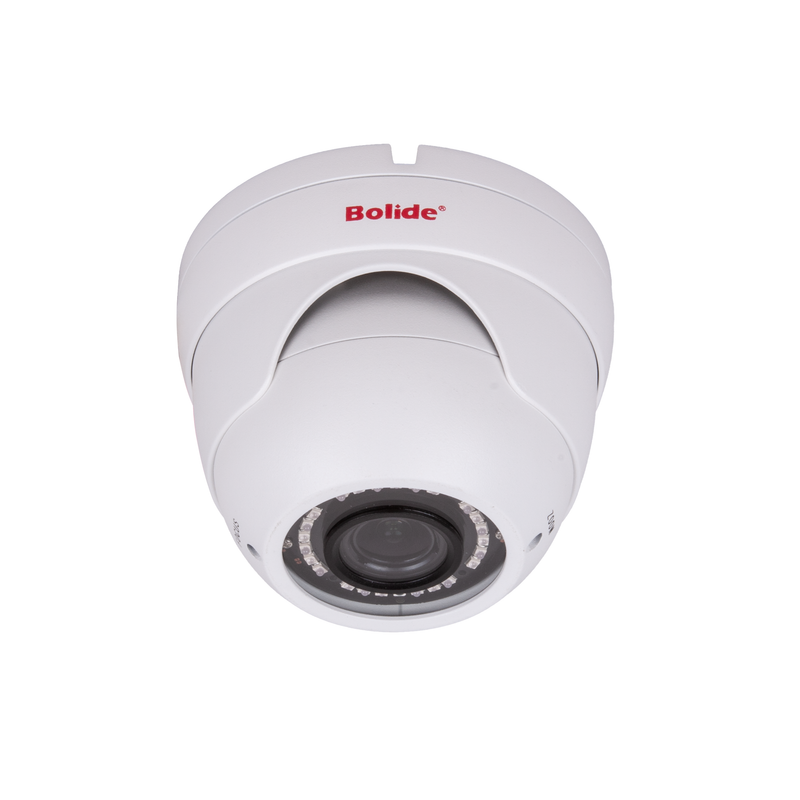

The Bolide BC1509IRODVA/AHNW is designed for high-durability installations, featuring an IP66-rated weatherproof housing in a clean white finish. Weighing 1.5 lbs, the unit is notably engineered for extreme thermal resilience, with an operating range of -40°F to 268°F, making it suitable for high-heat industrial environments. The camera runs on a standard 12VDC power supply, ensuring a straightforward setup for both new and legacy analog infrastructures.

Image Sensor1 / 2.7” CMOS
Resolution2560 (H) x 1920 (V)
1920 (H) x 1080 (V)
Effective Pixels5MP / 4MP / 2MP
Focal Length3.3 – 12mm Varifocal Lens
IR Distance24pcs Flux IR Up to 130 Feet
Output ModeAHD / TVI / CVI / Analog
Min. IlluminationColor: 0.1 Lux White / Black 0.1 Lux (with IR LED On)
AGCAuto
WBAuto
AESNTSC: 1/60s ~ 1/10000s
PAL: 1/50s ~ 10000s
D/N ConversionICR Mechanical Switch
Contrast10 Level Can Be Adjusted
Sharpness20 Level Can Be Adjusted
Saturation20 Level Can Be Adjusted
DNR15 Level Can Be Adjusted
Video SystemNTSC
DWDRON/OFF
S/N RatioMore than 48 dB
Storage Temp.-40ºC ~ 140º C
Operating Temp.-40ºC ~ 131º C
Power Supply12VDC
Weight (lb)1.5 lbs
