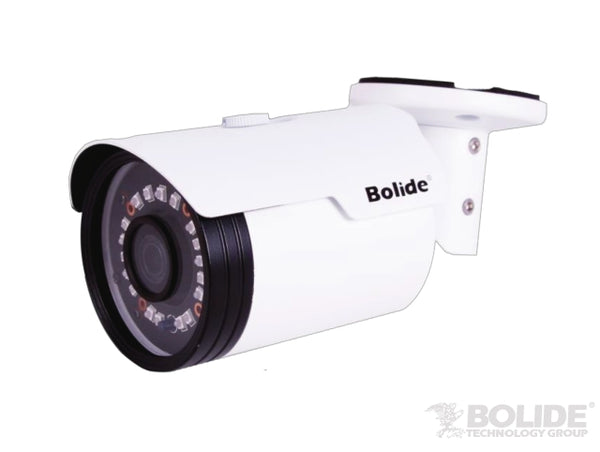

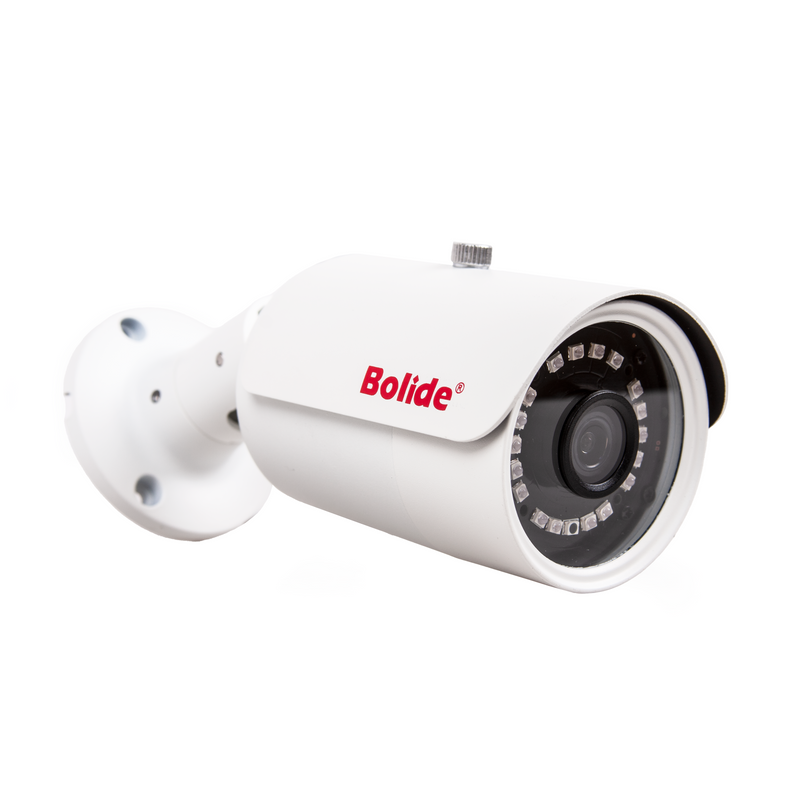

BOLIDE - BC1535 - HD 4 in 1 5MP IR Bullet Camera With Control Over Coax
Part number:
BC1535
Price:
5.0MP AHD / TVI / CVI / Analog Bullet Camera, 1/2.7 CMOS, 3.6mm Fixed Lens, IR Up to 65 ft., Control Over Coax, OSD, Quickswitch, 12VDC, White
Features:
Coax Control
• AHD / CVI / TVI / ANALOG 4 in 1
• 5MP @ 30fps
• 3.6mm lens
• 18 pcs. SMD LED
• IR Distance: Up to 75 ft.
• Weather-rating: IP66
| Image Sensor | 1 / 2.7” CMOS |
| Resolution | 2560 (H) x 1920 (V) |
| Effective Pixels | 5 Mega Pixel |
| Focal Length | 3.6mm |
| IR Distance | Up to 75 ft. / 18 pcs. |
| Output Mode | AHD / CVI / TVI / Analog |
| Min. Illumination | Color: 0.1 Lux White/Black: 0.1 Lux ( with IR LED on) |
| AGC | Auto |
| WB | Auto |
| AES | NTSC: 1/60s-1/10000s PAL: 1/50s-10000s |
| D/N Switch | Color/WB/IR (outside) / inside auto |
| Contrast | 10 Level can be adjusted |
| Sharpness | 20 Level can be adjusted |
| Saturation | 20 Level can be adjusted |
| DNR | 15 Level can be adjusted |
| Video System | NTSC |
| DWDR | OFF/ON |
| S/N Ratio | More than 48dB |
| Storage Temp. | -40°C ~ 60°C |
| Operating Temp. | -40°C ~ 55°C |
| Power Supply | DC12V |
| Weight (with bracket) | .8 lbs |
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
