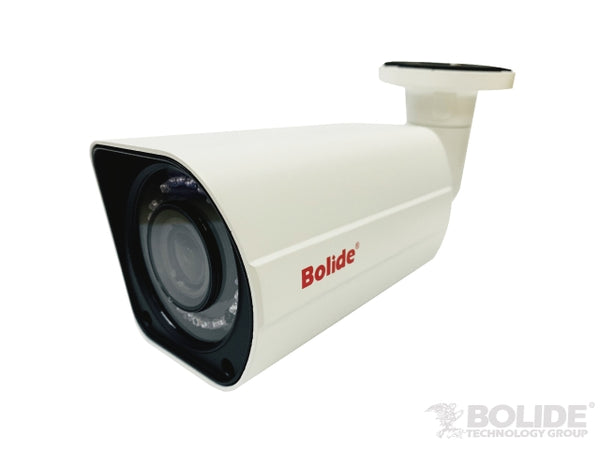

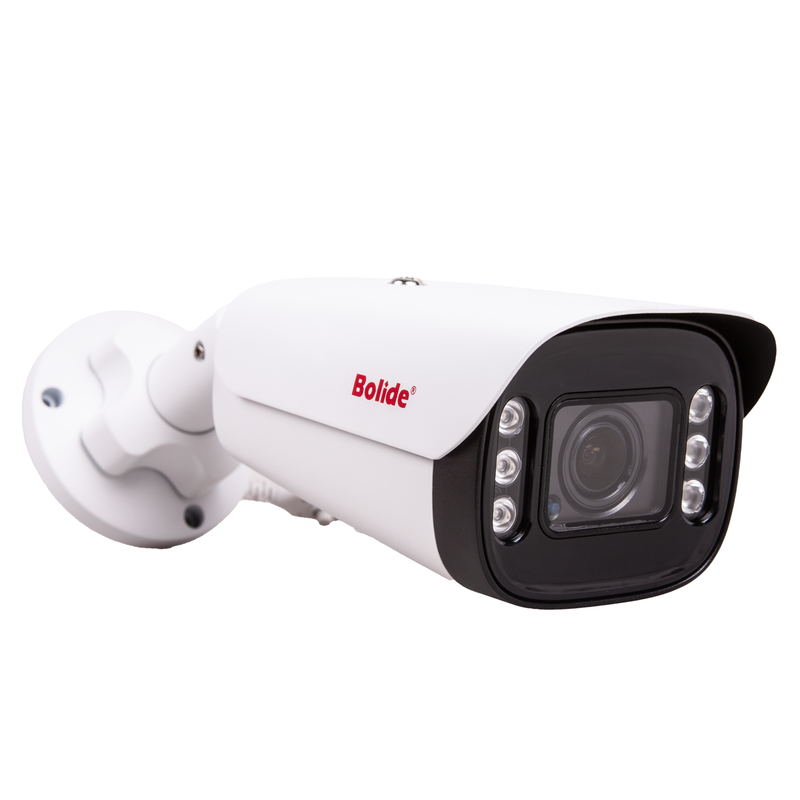

BOLIDE - BC1536/AHN/12-24 - 5MP/4MP/2MP 9-IN-1 Varifocal Bullet Camera 12VDC/24VAC Dual Voltage With Control Over Coax
Part number:
BC1536/AHN/12-24
Price:
5.0MP / 4.0MP / 2.0MP 9-in-1 AHD / TVI / CVI / Analog Bullet Camera, 1/2.7 CMOS, 2.8 to 12mm Varifocal Lens, IR Up to 100 ft., Control Over Coax, OSD, Quickswitch, 12VDC/24VAC, White
Features:
Max 5MP Resolution
• Supports 9 Different Video Formats
• Supports 5MP, 4MP, 2MP, and Analog Resolution
• Supports AHD, TVI, CVI, and Analog Video Formats
• 3.3 - 12mm Varifocal Lens
• IP66 Weatherproof Rated Housing
• 12VDC/24VAC Dual Voltage
| Image Sensor | 1 / 2.7 "CMOS |
| Resolution | 2560 (H) x 1920 (V) 1920 (H) x 1080 (V) |
| Effective Pixels | 5MP / 4MP / 2MP / CVBS |
| Focal Length | 3.3 – 12mm Varifocal Lens |
| IR Distance | 24pcs Flux IR Up to 130 Feet |
| Output Mode | AHD / TVI / CVI / Analog |
| Min. Illumination | Color: 0.1 Lux White / Black 0.1 Lux ( with IR LED On ) |
| AGC | Auto |
| WB | Auto |
| AES | NTSC: 1 / 60s ~ 1 / 10000s PAL: 1 / 50s ~ 10000s |
| D/N Conversion | ICR Mechanical Switch |
| Contrast | 10 Level Can Be Adjusted |
| Sharpness | 20 Level Can Be Adjusted |
| Saturation | 20 Level Can Be Adjusted |
| DNR | 15 Level Can Be Adjusted |
| Video System | NTSC |
| DWDR | ON/OFF |
| S/N Ratio | More than 48 dB |
| Storage Temp. | -40ºC ~ 140º C |
| Operating Temp. | -40ºC ~ 131º C |
| Power Supply | 12VDC/24VAC Dual Voltage |
| Weight (lb) | 1.8 lbs |
Name
Description
Size
Downloads
File
Data Sheet
0.6mb
