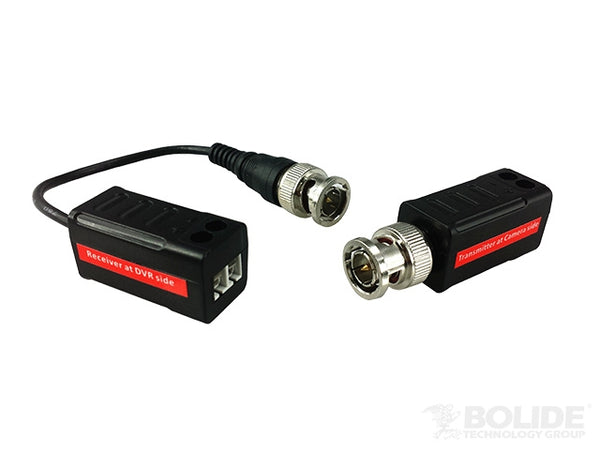

BOLIDE - BE8016HDP - 1-Channel Passive Video Balun for AHD / TVI / CVI, Screw terminal ( Pair )
Part number:
BE8016HDP
Price:
The BE8016HDP Balun Power-Video signals are routed via UTP and RJ45.The unit is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire
Features:
Compatible with all HD-CVI, HD-TVI, HD-AHD
• NO POWER REQUIRED
• 60dB CROSS TALK AND NOISE IMMUNITY
• COMPACT SIZE AND EASY INSTALLATION
• BUILT-IN TRANSIENT SUPPRESSION PROTECTION
• INDICATED LED LIGHTS
| VIDEO FORMAT | HD-CVI/TVI/AD, NTS, and Pal |
| FREQUENCY RESPONSE | DC to 60MHz |
| ATTENUATION | 0.5dB |
| CMRR | 60dB |
| SYNC. SYSTEM | Internal Sync |
| SENSOR AREA | 4.8mmx3.6mm |
| VIDEO OUTPUT | 1.0Vp~p75Ω |
| S/N RATIO | More than 50dB (AGC OFF) |
| IMPEDANCE | Coax, Male BNC 75ohms RJ45 100ohms |
| 720p CVI | Up to 450m |
| 720p AHD | Up to 320m |
| 1080p CVI | Up to 250m |
| 720p/1080p TVI | Up to 200m |
