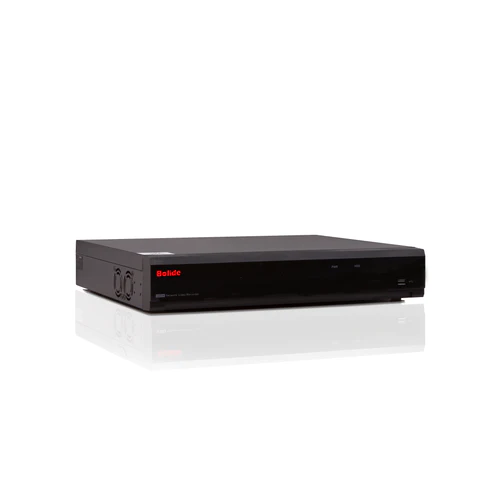

Bolide - BN-NVR/32NX-S/NDAA - 32-Channel with 16-Port POE, iPac AI Enabled
Part number:
BN-NVR/32NX-S/NDAA
Price:
32-Channel 4K H.265 NVR with 16-Port Built-in POE, Supports Up to 4K Cameras, 256Mbps Throughput, 4K Output, Dual HDMI, VGA, 4 Hard Drive Bay Up to 12TB each bay, 48TB max, NDAA Compliant, iPac AI Enabled
Features:
- 4K Recording Resolution
- NDAA Compliant
- 16-Port Built-in POE
- 256Mbps High Throughput
- 4 HDD Bays Up to 12TB Per Bay
- Dual HDMI ( Main and Spot Output )
- Bolide QuickConnect Enabled
- iPac AI Enabled
| Specification | |
| Recording Bandwidth | 256Mbps Throughput |
| Recording Resolution | 8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Display Split | 1 / 4 / 9 / Custom |
| Frame Rate | 4K: 60FPS |
| 4MP: 140FPS | |
| 2MP: 240FPS | |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Foot Traffic Heat Map |
| iPac AI: Face Recognition, Human / Vehicle Detection, License Plate Recognition | |
| Output Interface | 2 HDMI ( 1 Main and 1 Spot ), 1 VGA |
| Display Resolution | 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1680*1050, 1600*1200, 1900*1200, 2560*1440, 3840*2160 |
| Line in | Yes |
| Alarm Input/out | 16CH Input / 1CH Output |
| Audio | 1-Channel Audio In / 1-Channel Audio Out |
| Ethernet | RJ-45 port (1000M) |
| Mobile Device Access | Bolide Quick Connect for iOS and Android |
| Internal HDD | 4 SATA HDD Up to 12TB Per Bay ( 48TB Total ) |
| USB | 2x USB 2.0, 1x USB 3.0 |
| ONVIF | ONVIF Profile S Version 2.6 |
| POE | 16 PoE Ports, 15 W Per Channel |
| Power Supply | DC53V, PoE Switch 53V |
| Dimension (W×D×H) | 14.88” x 12.82” x 2.59” |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
