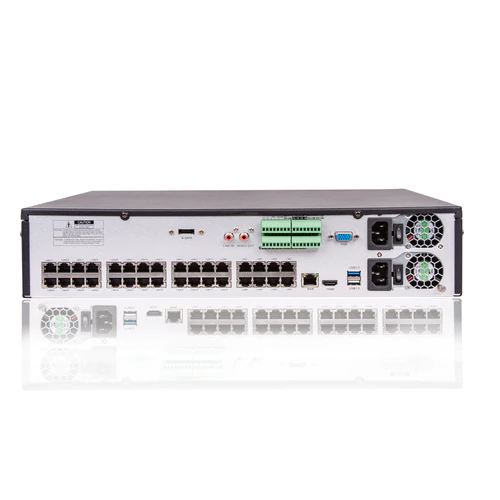

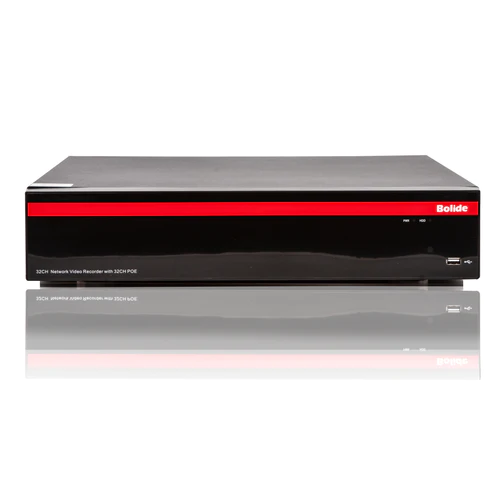

Bolide - BN-NVR/32NXPOE - H.265 32 Channel NVR with 32-Port POE
Part number:
BN-NVR/32NXPOE
Price:
32-Channel 4K H.265 NVR with 32-Port Built-in POE, Supports Up to 4K Cameras, 320Mbps Throughput 4K Output, HDMI, VGA, 8 Hard Drive Bay Up to 8TB each bay, 64TB max
Specifications
| Recording Bandwidth | Max 320Mbps |
| Recording Resolution | 8MP(4K), 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Display Split | 1/4/6/8/9/10/13/14/16/32/36 |
| Live/Playback performance | 4K: 4CH real-time 4MP: 16CH real-time 3MP: 22CH real-time 2MP: 32CH real-time |
| Output Interface | 1 HDMI (up to 4K) , 1 VGA |
| Display Resolution | 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1680*1050, 1600*1200, 1900*1200, 2560*1440, 3840*2160 |
| RS485 E-Sata Line in | Yes Yes Yes |
| Alarm Input/out | 32CH input /1CH output |
| Ethernet | RJ-45 port (1000M) |
| Smart Phone | iOS, Android |
| Internal HDD | 8 SATA HDDs, each HDD up to 8TB |
| USB | 1x3.0 USB for backup/upgrade, 2x 2.0 USB for mouse |
| ONVIF | ONVIF Version 2.6 |
| POE | 32 PoE ports, single port up to 802.3at(30w) |
| Power Supply | 2x AC 100~240V ,PoE Switch :48V |
| Dimension (W×D×H) | 17.5” x 17” x 3.5” (Rackmount Ears Included) |
