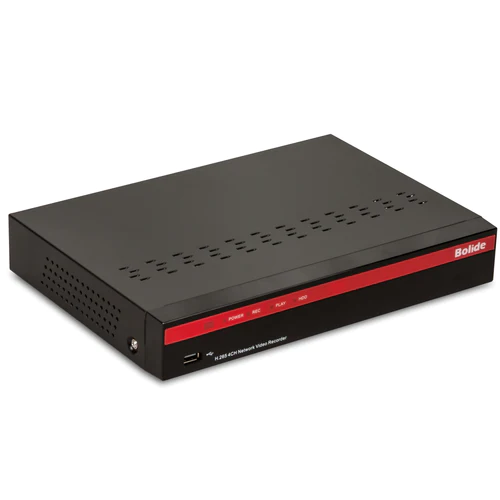

BOLIDE - BN-NVR/4NX/NDAA - 4-Channel 4K H.265 NVR with 4-Port Built-in POE, Supports Up to 4K Cameras, 40Mbps Throughput, 4K Output, HDMI, VGA,1 Hard Drive Bays Up to 12TB max, NDAA Compliant, iPac AI Enabled
Part number:
BN-NVR/4NX/NDAA
Price:
4-Channel 4K H.265 NVR with 4-Port Built-in POE, Supports Up to 4K Cameras, 40Mbps Throughput, 4K Output, HDMI, VGA,1 Hard Drive Bay Up to 12TB max, NDAA Compliant, iPac AI Enabled
Features:
- 4K Recording Resolution
- NDAA Compliant
- 4-Port Built-in POE
- 50Mbps High Throughput
- 1 HDD Bay Up to 12TB
- 1 HDMI, 1 VGA Outputs
- Bolide QuickConnect Enabled
- iPac AI Enabled
| Specification | |
| Recording Bandwidth | 50Mbps Throughput |
| Recording Resolution | 8MP, 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Display Split | 4-Jan |
| Frame Rate | 4K: 45FPS |
| 4MP: 90FPS | |
| 2MP: 180FPS | |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Foot Traffic Heat Map |
| iPac AI: Face Recognition, Human / Vehicle detection | |
| Output Interface | 1 HDMI, 1 VGA |
| Display Resolution | 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1680*1050, 1600*1200, 1900*1200, 2560*1440, 3840*2160 |
| Line in | Yes |
| Alarm Input/out | 4CH Input / 1CH Output |
| Audio | 1-Channel Audio In / 1-Channel Audio Out |
| Ethernet | RJ-45 port (1000M) |
| Mobile Device Access | Bolide Quick Connect for iOS and Android |
| Internal HDD | 1 SATA HDD Up to 12TB |
| USB | 2x 2.0 USB |
| ONVIF | ONVIF Profile S Version 2.6 |
| POE | 4 PoE Ports, single port up to 802.3at (30W) |
| Power Supply | DC48V, PoE Switch 48V |
| Dimension (W×D×H) | 11.8” x 8.2” x 1.89” |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
