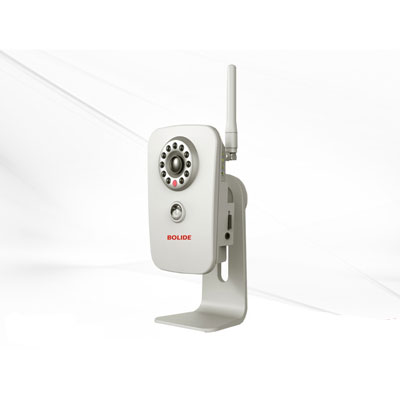

BOLIDE - BN1008 - IP 1080P PIR Camera featuring Embedded BN600, Non-working
Part number:
Price:
• 1/4” Progressive Scan CMOS
• H.264 video compression
• 1280 x 720 @ 30fps
• Built-in wifi and Bolide DDNS
• PIR for accurate motion detection
• Motion alarm whenever motion is detected
• CBR/VBR transmission rate
• IR Leds for 24/7 operation
• IR cut filter built-in
• Built-in SD card slot for local recording
| Camera | |
|---|---|
| Sensor/DSP | 1/4" Progressive Scan CMOS |
| Day/Night | ICR |
| Min. Illumination | 0.1lux @F1.2, AGC on, 0 lux with IR on |
| Lens | 3.6mm 3.0MP Fixed Lens |
| IR LED | 12 LEDs |
| IR Distance | 5~8m |
| Electronic Shutter | 1/20~1/30000s |
| Video | |
| Compression | H.264/MPEG4/M-JPEG |
| Image Resolution | 1280 x 720 |
| Frame Rate | 30fps(1280 x 720) |
| Bit Rate | Stream 1: 1000~6000kps Stream 2: 512~2048kbps Stream 3: 64~256kbps |
| Audio Compression | G.711 |
| Network | |
| Protocol | TCP/IP, HTTP, DHCP, Bolide DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP |
| Compliance | ONVIF 2.1(1.02 backward compatible) |
| PC Client and Browser | ISS, IE6.0 and above |
| Mobile phone | iOS, Android |
| WIFI | YES, WEP/WPA/WPA2 |

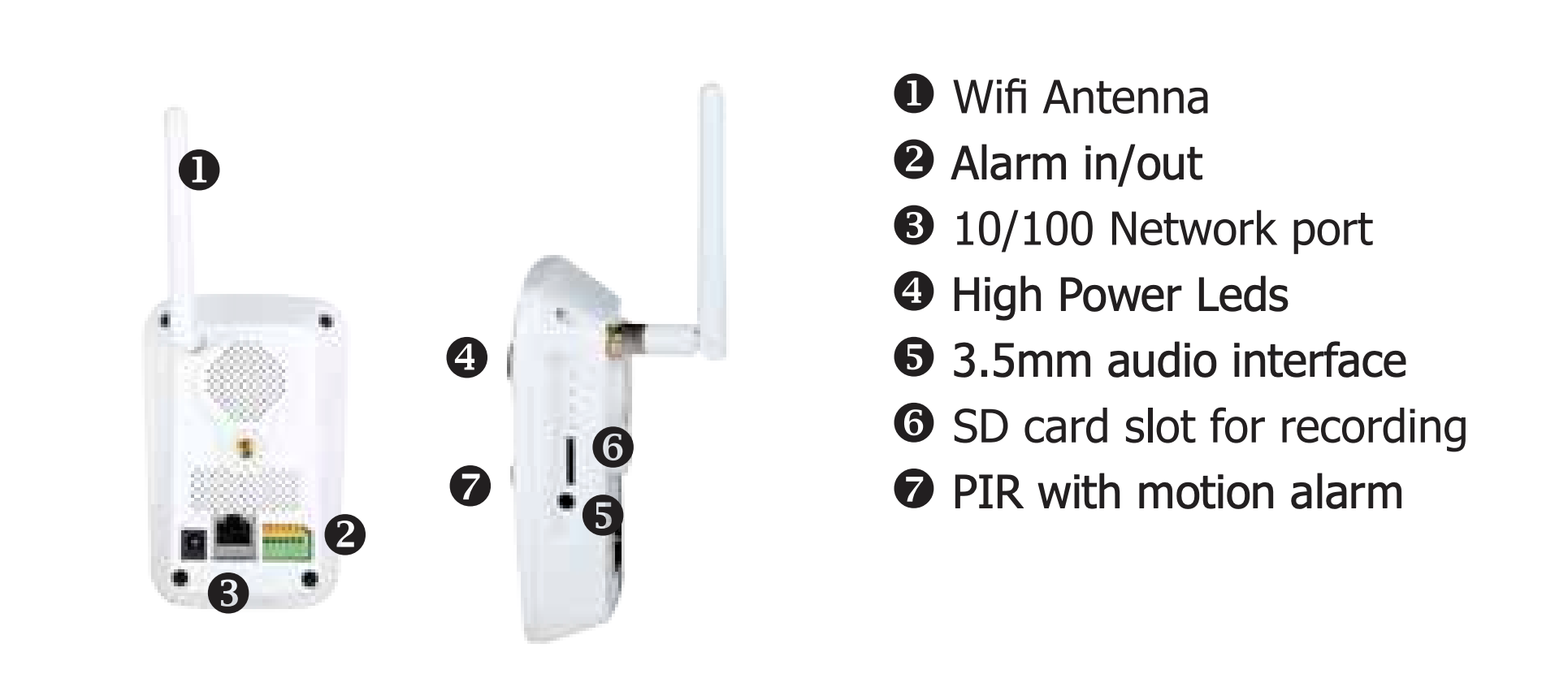

| Interface | |
| Audio Input | 1 CH 3.5mm audio interface, MIC IN/LINE IN |
| Audio Output | 1 CH 3.5mm audio interface |
| Alarm Input | 1 |
| Alarm Output | 1 |
| LAN | 1 RJ45 10M / 100M ethernet port |
| RS-485 | 1 |
| Storage Interface | Built-in micro sd slot, up to 32GB |
| PIR | YES |
| General | |
| Working Temperature | -4ºF ~ 140ºF |
| Working Humidity | 0% - 90% |
| Power Supply | 12 VDC, less than 5W |
| Dimensions | 120*79*38mm |
| Weight | 500g |
