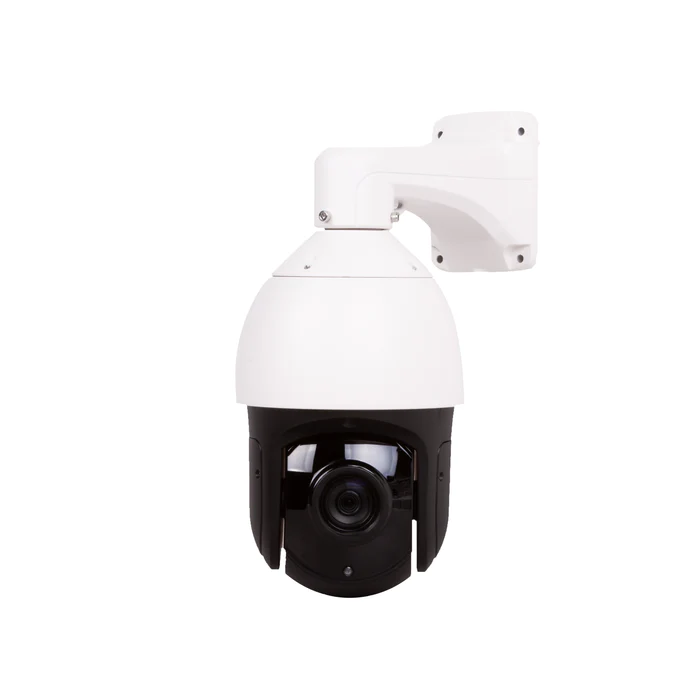

Bolide - BN1009/PTZ-2.0POE - 2MP 25x Optical Zoom Full Size PTZ Network Camera with Auto Tracking
Part number:
BN1009/PTZ-2.0POE
Price:

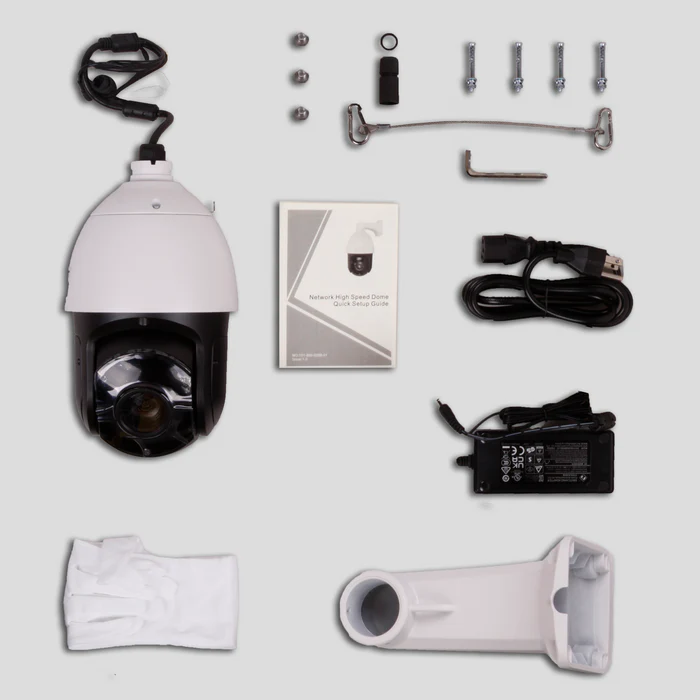

2MP 25x Optical Zoom Full Size PT, 30FPS, BNC, two way audio, IR Up to 492 Feet, Built-in POE, 24VAC, Includes Wall-Mount Bracket
| System | |
|---|---|
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Effective Pixels | 1920(H) x 1920V) |
| Electronic Shutter | Auto/Manual, 1/5-1/20,000s |
| Min. illumination | Color: 0.01Lux @(F1.2,AGC ON) B/W: 0Lux @(IR LED ON) |
| S/N Ratio | 55dB |
| Day/Night | Auto(ICR) / Day / Night / Timing |
| Wide Dynamic Range | WDR (120dB) |
| IR Range | Up to 150m ( 492Ft ) |
| IR On/Off Control | Auto/ Manual |
| Focal Length | 5~125mm |
| Max. Aperture | F1.5~F3.5 |
| Angle of View | H: 58.5°~2.8°, V: 33.2°~1.5° |
| Optical Zoom | 25x |
| Digital Zoom | 16x |
| Focus Control | Auto/Manual |
| Audio & Video | |
| Video Compression | H.265 |
| Max. Resolution | 2MP1920×1080) |
| Streaming Capability | 3 Streams |
| Stream / Frame Rate | Stream1: 1920×1080/1280x720 @ 25/30fps Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps Stream3: VGA/CIF/QVGA @25/30fps |
| Video Bit Rate Control | CBR/VBR |
| Video Bit Rate | Stream1: 100kbps~12Mbps Stream2: 10kbps~6Mbps Stream3: 10kbps~3Mbps |
| Image Enhancement | HLC / BLC / Anti-shake / Defog / WDR (120dB) |
| Noise Reduction | 2D/3D DNR |
| Region of Interest | Off / On (8 Zone) |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless, Tilt: -10° ~ +90° |
| Manual Control Speed | Pan: 0.1° ~180° /s, Tilt: 0.1° ~90° /s |
| Preset Speed | Pan: 180° /s, Tilt: 90° /s |
| Presets | 400 |
| PTZ Mode | 6 Track, 12 Tour, 12 Scan, |
| Speed Setup | Auto/Manual (0-8) |
| Power up Action | Support |
| Idle Motion | Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period |
| Analitycs | |
| Communications | |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Web Viewer | <IE11, Chrome, Firefox |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| RS485 | Support |
| Reset Button | Yes (Built-in) |
| Electrical | |
| Power Supply | AC24V/Hi-POE (Adapter optional) |
| Power Consumption | Less than 40W |
| Operating Temperature | Starting Temperature: -40°C ~ 60°C (-40°F ~ 140 °F) Working Temperature:-55°C ~ 60°C (-67°F ~ 140 °F) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66, TVS4000V |
| Impact Rating | IK10 |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | Φ226×362.8mm |
| Net Weight | 5.2Kg |
