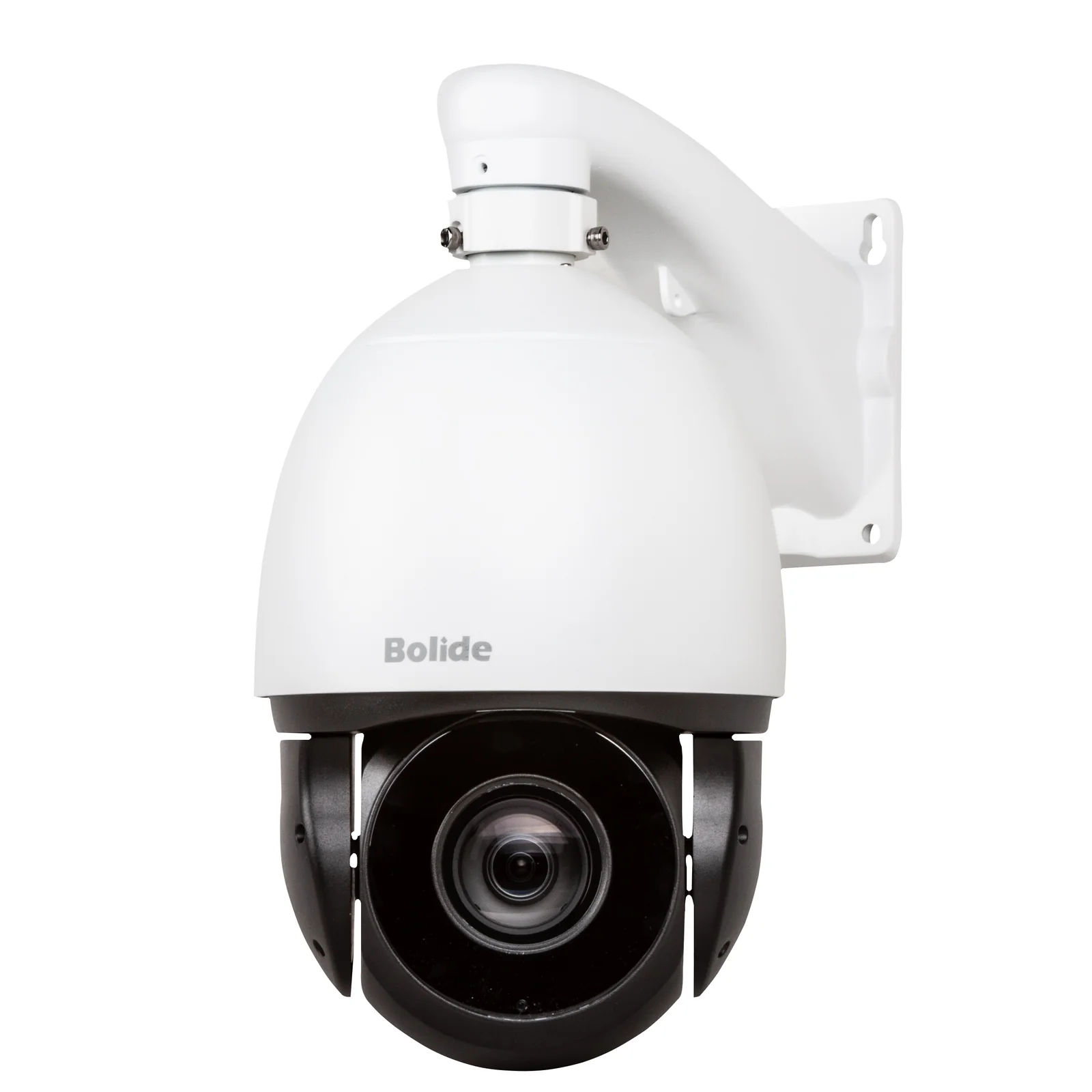

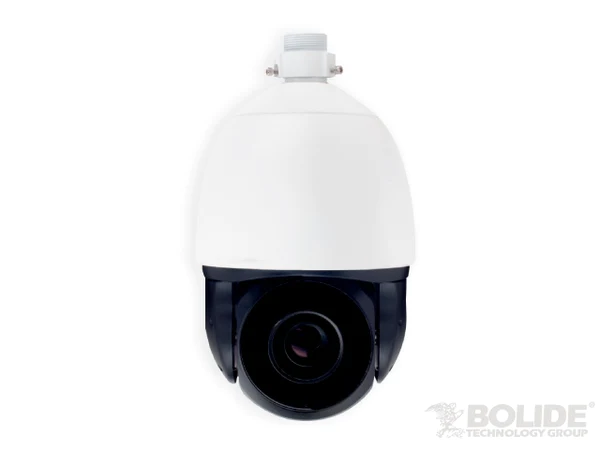

Bolide - BN1009/PTZ-5.0POE - 5MP 40x Optical Zoom Full Size PTZ Network Camera with Auto Tracking
Part number:
BN1009/PTZ-5.0POE
Price:

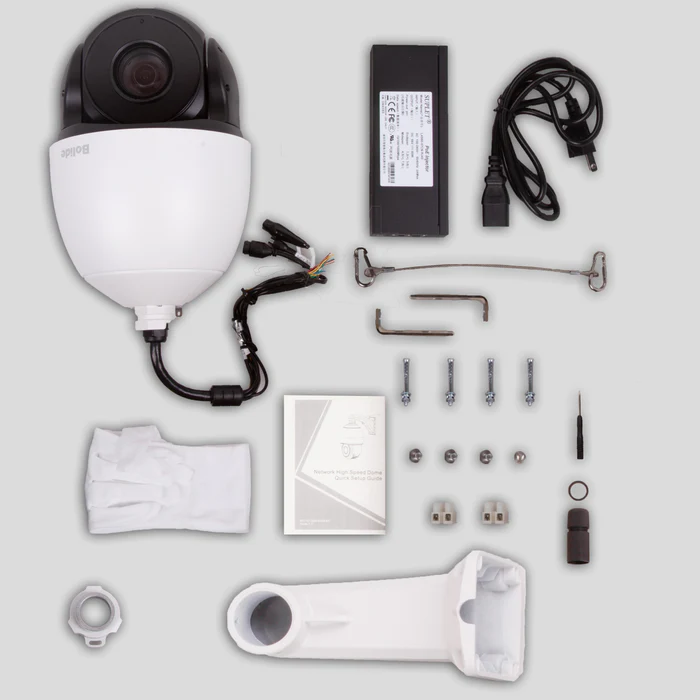

5MP 40x Optical Zoom Full Size PTZ with Auto Tracking, 30FPS, BNC, Two Way audio, 2-Channel Alarm In/Out, IR Up to 656 Feet, Built-in POE, IP67, 24VAC, Includes Wall-Mount Bracket
| Image Sensor | 1/2.8” Progressive Scan CMOS |
|---|---|
| Effective Pixels | 2560 (H) X 1920V) |
| Electronic Shutter | Auto/Manual, 1/5 ~ 1/20,000s |
| Min. illumination | Color: 0.01 Lux@(F1.2, AGC ON) BIW: 0 Lux@ (IR LED ON) |
| S/N Ratio | 55dB |
| Day/Night | Auto(ICR) / Day / Night / Timing |
| Wide Dynamic Range | WDR (120dB) |
| IR Range | Smart IR, Up to 200 m (656.2 ft) |
| IR On/Off Control | Auto/ Manual |
| Focal Length | 4.98 - 199.2mm |
| Max. Aperture | F1.2 - F3.5 |
| Angle of View | H: 59.1'-1.8', V: 38.4'-1.1' |
| Optical Zoom | 40x |
| Digital Zoom | 16x |
| Focus Control | Auto/Manual |
| Audio & Video | |
| Audio Compression | G.711, RAW_PCM |
| Audio Bit Rate | 8kbps(G.711), 16kps(RAW_PCM) |
| Video Compression | H.265, H.264, MJPEG |
| Max. Resolution | 2560 (H) X 1920V) |
| Streaming Capability | 3 Streams |
| Stream / Frame Rate | Stream1: 2560•1920 @ 20fps, 2048•1536/1280•960 @25130fps Stream2: D1NGA/640•360/CIF/QVGA@ 25/30fps Stream3: VGA/CIF/QVGA@ 25/30fps |
| Video Bit Rate Control | CBR/VBR |
| Video Bit Rate | Stream1: 200kbps-12Mbps Stream2: 10kbps-6Mbps Stream3: 10kbps-3Mbps |
| Image Enhancement | HLC / BLC / An-shake / Defog / WDR (120dB) |
| Noise Reduction | 2D/3D DNR |
| Region of Interest | Off / On (8 Zone) |
| Motion Detection | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless, Tilt: -15° ~ +90° |
| Manual Control Speed | Pan: 0.1° ~180° /s, Tilt: 0.1° ~90° /s |
| Preset Speed | Pan: o• - 360' endless, Tilt: -10' - +90' |
| Presets | 300 |
| PTZ Mode | 6 Track, 12 Tour, 12 Scan, |
| Speed Setup | Auto/Manual (0-8) |
| Power up Action | Support |
| Idle Motion | Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period |
| Analitycs | |
| Auto Tracking | Support |
| IVS | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Communications | |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Interoperability | ONVIF, SDK, CGI |
| Max. User Access | 10 Users |
| Edge Storage | Local PC for instant recording Micro SD card 128GB |
| Web Viewer | <IE11, Chrome, Firefox |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio | 1ch Input, 1ch Output |
| Alarm | 2ch Input, 1ch Output |
| RS485 | Support |
| CVBS Output | Support |
| Reset Button | Yes (Built-in) |
| Electrical | |
| Power Supply | AC24V/Hi-POE (Adapter optional) |
| Power Consumption | Less than 40W |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140 °F) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP67, TVS4000V |
| Impact Rating | IK10 |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | φ226 • 362.8 mm (Φ8.9 • 14.28 inch) 3.1Kg 5.2 kg (11.46 lb) |
| Net Weight | 5.2 kg (11.46 lb) |
