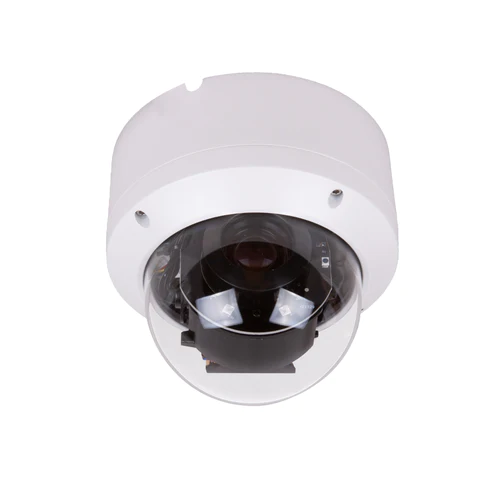

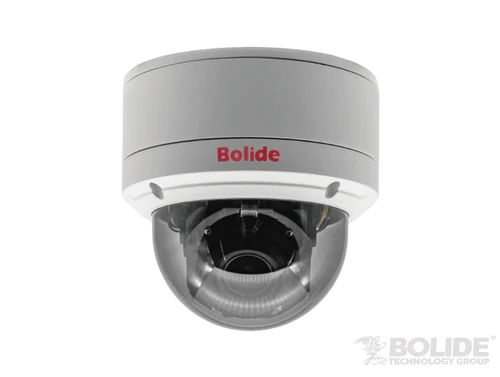

Bolide - BN1009PTZM/NDAA - 5MP H.265 IP Mini PTZ Camera with 12x Optical Motorized Zoom Lens
Part number:
BN1009PTZM/NDAA
Price:
5MP H.265 Compression 10x Optical Zoom Mini PTZ , 5-60mm Focal Length, 355 Degre Max Horizontal Angle, IR Up to 164 Feet, POE, 12VDC, NDAA complaint
Features:
- 12x Optical Motorized Zoom Lens
- H.265 Compression
- 3.6” Explosion-Proof Housing with
- Quick-Install Design
- 90° Vertical, 355° Horizontal Pan / Tilt
- Built-in IR-Cut
- IR Up to 164 Feet
| Specifications | |
| Image Sensor | 1 / 2.7” CMOS |
| Resolution | 5MP 2592 ( H ) x 1944 ( W ) |
| Min. Illumination | Color 0.05lux @ F1.2 ( AGC ON ) |
| Signal-to-Noise Ratio | 50dB |
| Power Zoom (mm) | 5-60mm |
| Vertical Rotation | 90° |
| Horizontal Rotation | 355° |
| Infrared Light | Double Array Lamp |
| Infrared Distance | Up to 98 Feet |
| Day/Night Mode | Auto / Day / Night |
| Backlight Mode | Close / Open |
| Color Density | Adjustable via Menu |
| Contrast | Adjustable via Menu |
| Digital Noise Reduction | 3D Digital Noise Reduction |
| White Balance | Manual / Automatic White Balance |
| Electronic Shutter | Auto, 1/25s – 1/10,000s |
| Preset Positions | 48 |
| Watch Point | 1 |
| App Control | Supports Mobile App Control |
| Ethernet | RJ-45 (10/100BASE-T ) |
| Connection Port | RJ-45 Port / 12VDC Plug |
| Video Compression | H.265 / MJPEG / H.265+ |
| Video Transmission | Variable / Constant |
| Rate | ( 128Kbps~12Mbps Second ) |
| Resolution | 5MP @ 20FPS |
| BitStream | Double Stream |
| Protocol | ONVIF 2.4 |
| Operating Temp. and Humidity | -40°F ~ 131°F < 90% RH |
| Storage Temp. and Humidity | -22°F ~ 140°F < 90% RH |
| Weather Rating | IP67 |
| Impact Rating | IK10 |
| Input Voltage | 12VDC±10% |
| Power Consumption | 800mA / 3.1W ( Peak 1A/8W ) |
| Weight | 1.41 lbs |
| Dimension | 4.73 in (W) x 4.49 in (H) |
| Color / Material | White / Metal |
| Lens Cover | High-Intensity Gray - Black High Transparency Plexiglass |
