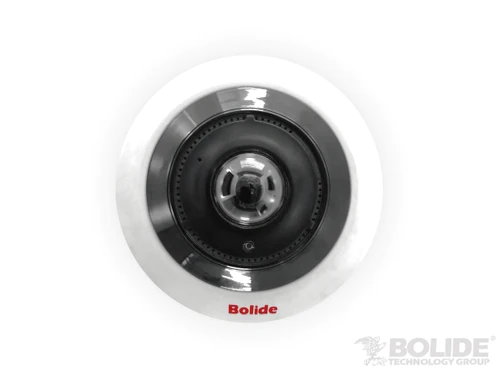

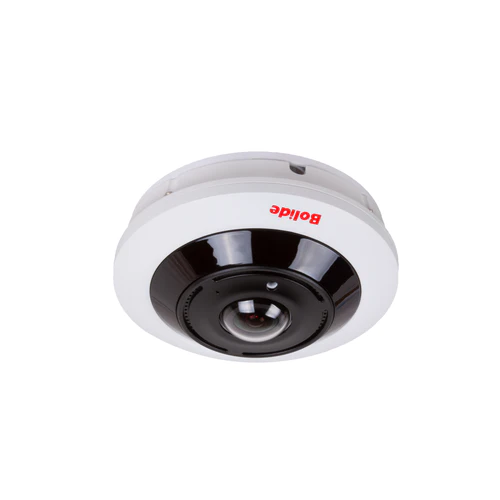

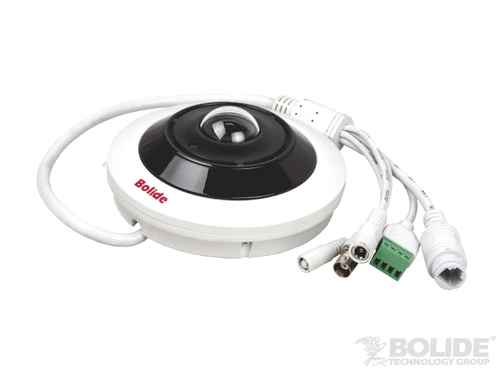

Bolide - BN1908FE/NDAA - 12MP NDAA H.265 Fisheye Camera
Part number:
BN1908FE/NDAA
Price:
H.265 12MP Fisheye Camera, Up to 8 Views, 360° Fisheye View, 180° Panoramic and Double Panoramic Modes, IR Up to 32Ft, Built-in Microphone, Built-in POE, IP67 Rated, micro SD card slot.
Features:
- 12MP Resolution
- NDAA Compliant
- Plug and Play with Bolide NVRs
- 1.6mm 360° Degree Fisheye Lens
- 180° Degree Panoramic Modes
- Integrated Dewarping Controls Using Bolide NVRs
- Built-in Microphone and Speaker
- Built-in POE
Specifications
| Resolution | 4000(H)×3000(V) |
| Image Sensor | 1 / 2/3" Progressive CMOS |
| Min. Illumination | Color 0.01lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
| Shutter | 1/5 ~ 1/20000s |
| Lens | 1.6mm, Angle of view: 360° |
| F No. | F 2.0±5% |
| Day & Night | IR cut filter with auto switch |
| WDR | Digital WDR |
| Video Compression | H.265/H.264 |
| Video bit rate | 8Kbps ~ 16Mbps |
| Triple Stream | yes |
| Frame Rate | |
| Mainstream: 4000x3000 @ 15FPS | |
| Substream: 1280x960P @ 15FPS, 640x480 @ 15FPS | |
| Mobilestream: 640x480@15FPS | |
| Mainstream: 3000x3000 @ 25FPS | |
| Substream: 1080x1080 @ 25FPS, 720x720 @ 25FPS, 480x480 @ 25FPS | |
| Mobilestream: 480x480@15FPS | |
| Mainstream: 2560x2560 @ 25FPS | |
| Substream: 1080x1080 @ 25FPS, 720x720 @ 25FPS, 480x480 @ 25FPS | |
| Mobilestream: 480x480@15FPS | |
| Mainstream: 2160x2160 @ 25FPS | |
| Substream: 1080x1080 @ 25FPS, 720x720 @ 25FPS, 480x480 @ 25FPS | |
| Mobilestream: 480x480@15FPS | |
| Mainstream: 1520x1520 @ 25FPS | |
| Substream: 1080x1080 @ 25FPS, 720x720 @ 25FPS, 480x480 @ 25FPS | |
| Mobilestream: 480x480@15FPS | |
| Mainstream: 1080x1080 @ 25FPS | |
| Substream: 720x720 @ 25FPS, 480x480 @ 25FPS | |
| Mobilestream: 480x480@15FPS | |
| Mainstream: 1080x1080 @ 25FPS | |
| Substream: 720x720 @ 25FPS | |
| Image Settings | Saturation, Brightness, Contrast, Hue, Sharpness adjustable |
| BLC | Support |
| ROI | Support |
| Video Analytics | NA |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| System Compatibility | ONVIF( Profile S, T, G ) |
| Interface | RJ45 10M / 100M Ethernet interface x1 |
| LED | 3pcs(SMD) |
| IR Range | Up to 32FT |
| SD storage | Yes up to 256GB |
| Alarm Trigger | Yes |
| Audio | Yes |
| Built-in Microphone | Yes |
| Reset Button | Yes |
| PoE | Yes |
| Water Proof | IP67 |
| Power Supply | DC 12V/POE |
| Consumption | 3.8 - 9.6W |
| Dimension | 4.72in x 2.16in |
| Weight | 0.88lb |
| Storage Temperature | -30～+140°F |
| Operating Temperature | -40～+140°F |
