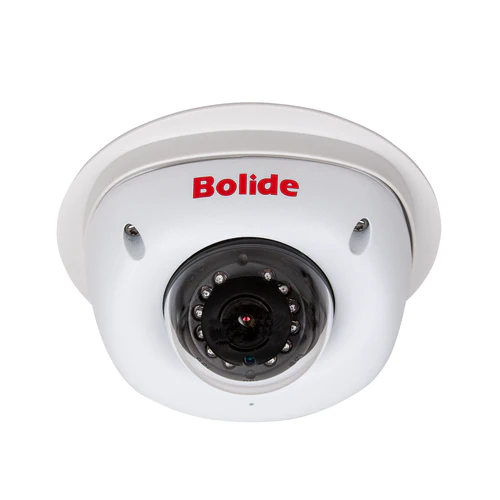

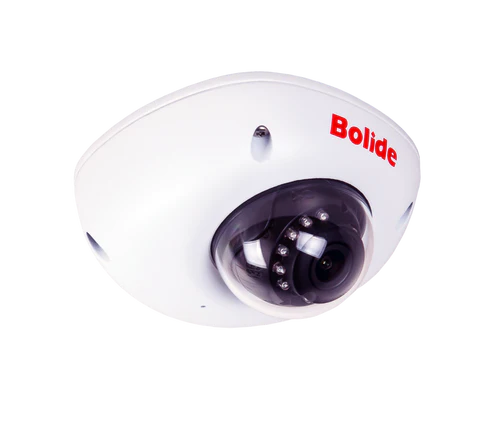

Bolide - BN8009HA/NDAA - 5MP High Definition Wide Angle IR Dome Camera
Part number:
BN8009HA/NDAA
Price:
H.265 5MP 2.8mm Wide Angle Lens IP67 IK10 IR Mini Dome Camera, POE, 12VDC, SD Card Slot, IR Up to 30ft, with Built-in Audio, NDAA Compliant
Features:
- 5MP Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 2.8mm Wide Angle Fixed Lens
- IR Up to 30 Feet
- Built-in Microphone
- IP67 Rated Weatherproof Housing
- ONVIF Compliant
- P2P Support
| Thermal Camera | |
| Resolution | 5MP 2592(H) × 1944(V) |
| Image Sensor | 1/2.7" Progressive CMOS |
| Min. Illumination | Color 0.002lux @ F1.2(AGC ON) |
| B/W 0 lux @ IR ON | |
| Shutter | 1/5 ~ 1/20000s |
| Slow shutter | Support |
| Lens | 2.8mm H.FOV: 92° |
| Day & Night | IR cut filter with auto switch (Day/Night/Auto/Schedule) |
| Digital noise reduction | 3D DNR |
| WDR | Digital WDR |
| Video Compression | H.265/H.264 |
| Video bit rate | 8Kbps ~ 8Mbps |
| Stream | Dual |
| Frame Rate | Mainstream (15FPS/5MP) |
| 5MP(2592×1944), 4MP(2592x1520), 3MP(2048x1520), (2304x1296), 1080P(1920x1080), 960P(1280x960), 720P(1280x720) | |
| Substeam (10FPS/VGA) | |
| VGA(640x480), QVGA(320x240) | |
| Image Settings | Flip mode, Saturation, Brightness, Contrast, Hue, Sharpness adjustable |
| BLC | Support |
| Privacy Mask | Support |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, TP, NTP, UPnP, SNMP, HTTPS, FTP |
| System Compatibility | ONVIF (Profile S, Profile G) |
| Interface | RJ45 10M / 100M Ethernet interface x1 |
| Led | 12pcs |
| IR Range | Up to 30 Feet |
| SD storage | Yes |
| Microphone | Yes |
| PoE | Yes |
| Water Proof | IP67, IK10 |
| Power Supply | DC 12V/POE |
| Consumption | ≤ 7W |
| Dimension | 4.72” x 2.51” |
| Weight | 0.83 lb |
| Operating Temperature | -40 ~ 140°F |
