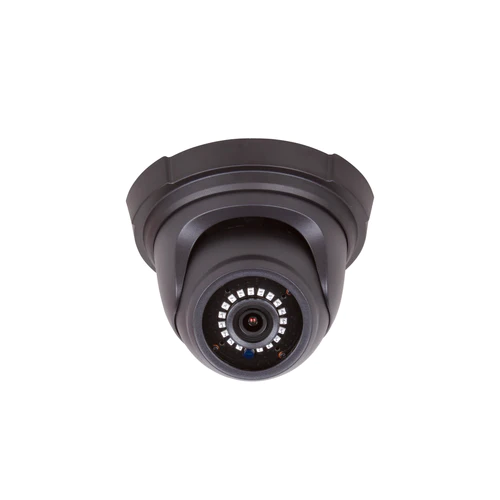

Bolide - BN8019B/NDAA - 5MP Fixed Lens IR Black Eyeball Camera, Black Housing
Part number:
BN8019B/NDAA
Price:
H.265 5MP 2.8mm Fixed Lens IP67 IR Eyeball Camera, POE, 12VDC, IR Up to 90ft, NDAA Compliant, Black Housing
Features:
- 5MP Ultra HD Resolution
- NDAA Compliant
- H.265 Compression
- 2.8mm Wide Angle Fixed Lens
- IR Up to 90 Feet
- IP67 Rated Weatherproof Housing
- ONVIF Compliant
- P2P Support
| Mechanical Specifications | |
| Image Sensor | 1/3"Progressive Scan CMOS |
| Min. Illumination | 0.002 Lux @(F1.2,AGC ON), B/W 0 Lux with IR |
| Shutter Speed | 1/5 s- 1/20,000 s |
| Lens Type | 2.8 mm |
| Lens Mount | M12 |
| Day and Night | IR Cut Filter with Auto Switch |
| Dynamic Range | Digital WDR |
| Digital Noise Reduction | 2D / 3D DNR |
| Compression | |
| Video Compression | H.265 / H.264 |
| Image Resolution | 5MP (2592 X 1944) |
| Video Bit Rate | 8Kbps-8Mbps |
| Image | |
| Frame Rate | 5MP (2592 X 1944) ( 1 ~ 20FPS ) |
| 4MP (2592 X 1520) ( 1 ~ 25FPS ) | |
| 3MP (2304 x 1296) ( 1 ~ 25FPS ) | |
| 1080P (1920 x 1080) ( 1 ~ 20FPS ) | |
| 720P (1280 x 720 ) ( 1 ~ 20FPS ) | |
| Substream | |
| 720P (1280 x 720 ) ( 1 ~ 20FPS ) | |
| VGA (640 x 480) ( 1 ~ 20FPS ) | |
| QVGA (320 x 240) ( 1 ~ 20FPS ) | |
| Mobilestream | |
| QVGA (320 X 240) ( 1 ~ 30FPS ) | |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and adjustable browser |
| Day and Night Swith | Auto/ Schedule/ Triggered by Alarm In |
| Interface | |
| System Compatibility | ONVIF ( Profile S/G/T ) |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | IR Up to 90 ft |
| POE | Built-In POE |
| Electrical | |
| Power Supply | 12 VDC, POE (IEEE802.3af) |
| Operating Temperature | -40 °F- 140 °F Humidity 95% or less (non-condensing) |
| Físico | |
| Dimensions | 5"x 4" |
| Net Weight | 0.72 lb |
| Weather Rating | IP67 Rated |
